50 exTension du sysTème de sTockage

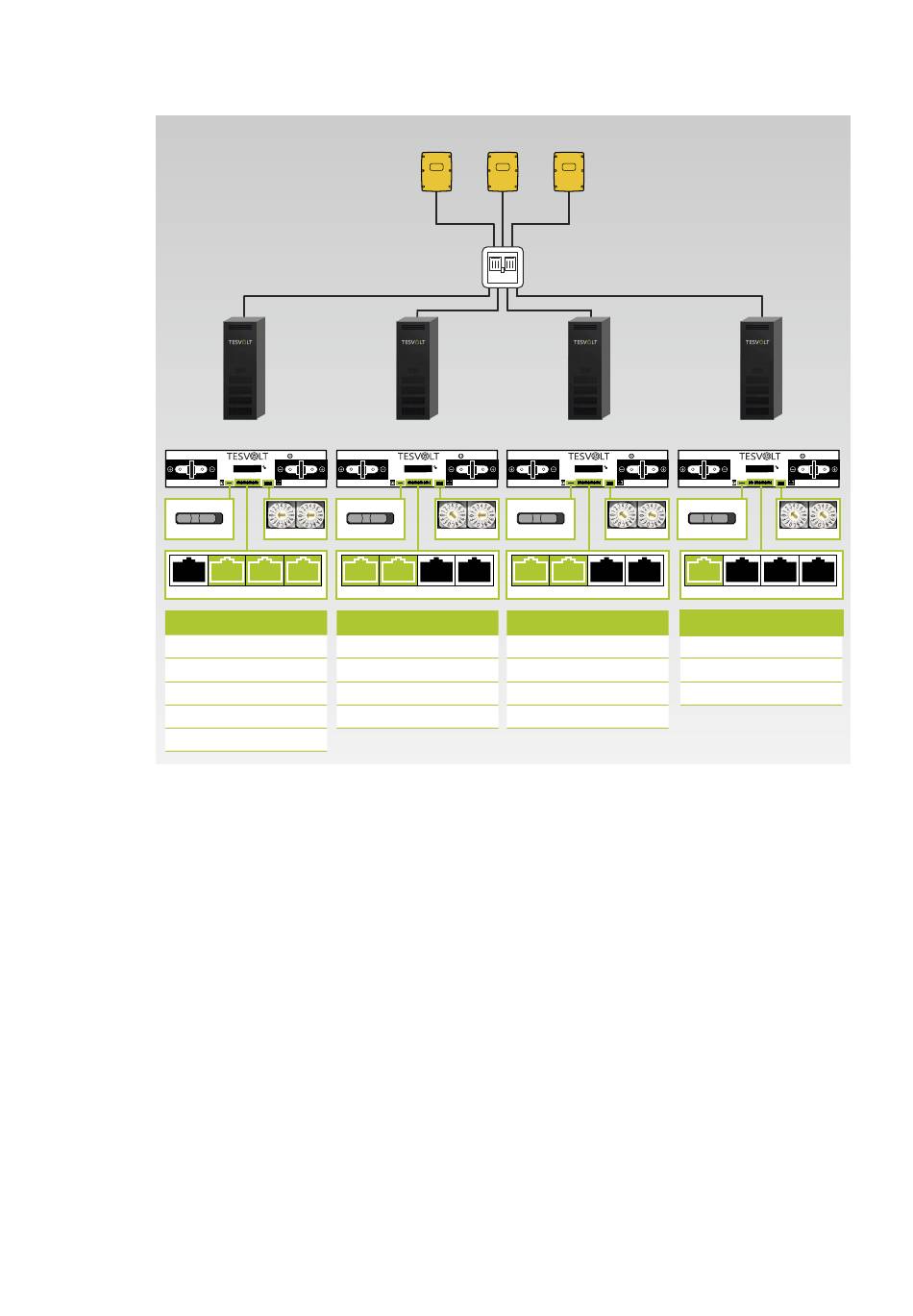

Système avec 1 maître et 3 esclaves
TS 48 V
Maître
CHARGER
ON
OFF
TERM
CAN OUT CAN SMA
CAN IN
Configuration de
l'APU maître
TERM :
ADDRESS : 0/0
CAN OUT > CAN IN esclave 1
CAN SMA > ComSync IN
LAN > SWITCH
© TESVOLT Sous réserve de modifications techniques ! RD.TI.015.E.FRZ_Manuel-d'installation_TS48V_v.D.01 État au 01/2021
Bat Fuse B03
TS 48 V
Esclave 1
BATTERY CHARGER
ON
OFF
TERM
ADDRESS
LAN CAN IN CAN OUT CAN SMA
Configuration de
l'APU esclave 1
ON TERM : OFF
ADDRESS : 2/0
CAN IN
> CAN OUT maître
CAN OUT > CAN IN esclave 2
Onduleurs SMA Sunny Island
TS 48 V
Esclave 2
BATTERY CHARGER
ON
OFF
TERM
ADDRESS
CAN IN CAN OUT CAN SMA
LAN
Configuration de
l'APU esclave 2
TERM : OFF
ADDRESS : 2/1
CAN IN
> CAN OUT esclave 1
CAN OUT > CAN IN esclave 3
TS 48 V
Esclave 3
BATTERY CHARGER
ON
OFF
TERM
ADDRESS ADDRESS
CAN IN
LAN CAN OUT CAN SMA
Configuration de
l'APU esclave 3
TERM : ON
ADDRESS : 2/2
CAN IN
> CAN OUT esclave 2
BATTERY
LAN
