6 DIP switches

NOTE
When the "Software Control" is ON (Enable), all settings of the following DIP switches will
be invalid.
Redundant Mode
Select a redundant combination. The following two redundant combinations
are available.
Mode 1
combination.
Mode 2
Input Priority
Select the input signal to prioritize the two desired redundant lines.
SW701
1
OFF
ON
10
HY128-MD Owner's Manual

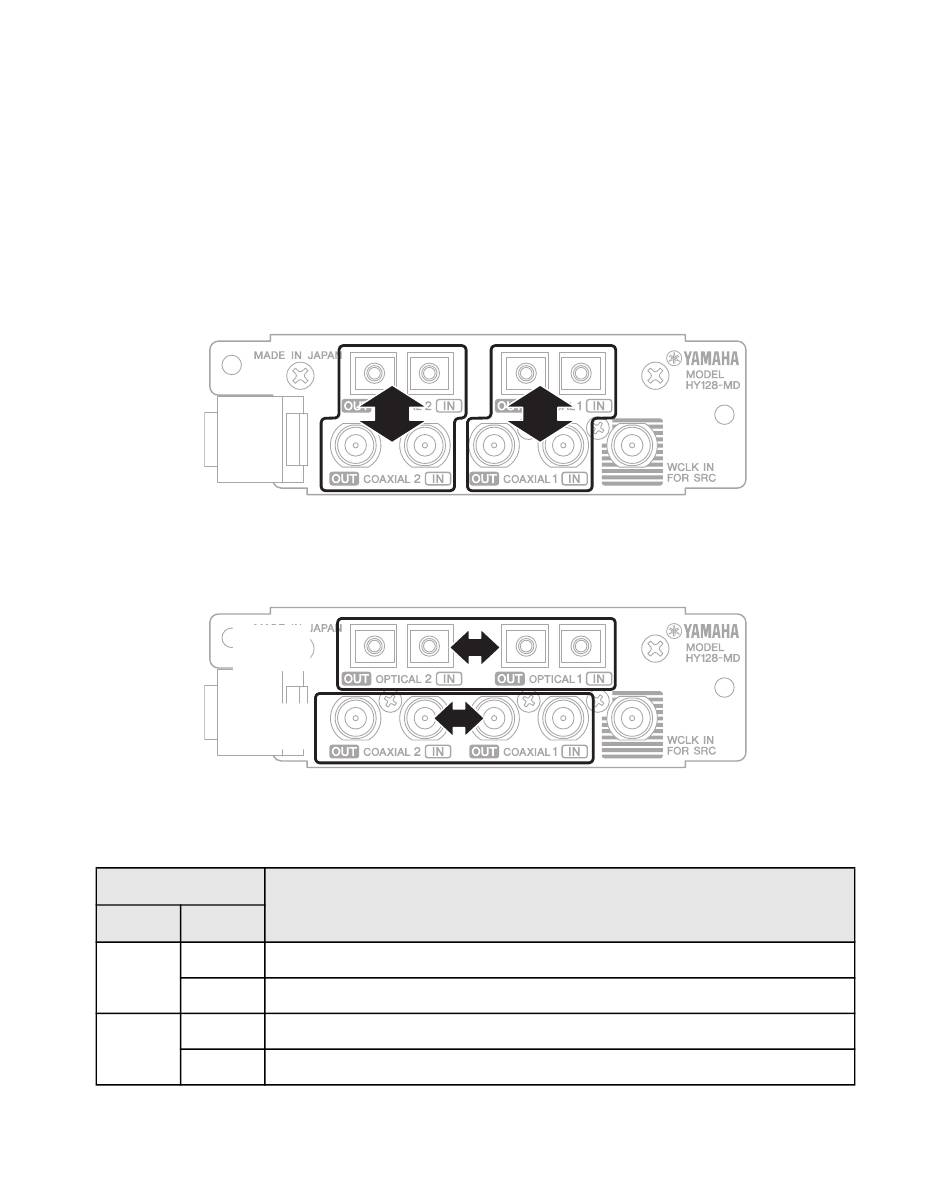

Establishing redundancy with an OPTICAL and COAXIAL
MADI 2
CH1–64
Establishing redundancy between OPTICAL or COAXIAL pairs.
MADI 1
CH1–64
MADI 2
CH1–64
2
OFF Mode 1 Prioritize the OPTICAL 1 and OPTICAL 2 signals (default setting)
ON Mode 1 Prioritize the COAXIAL 1 and COAXIAL 2 signals
OFF Mode 2 Prioritize the OPTICAL 1 and COAXIAL 1 signals
ON Mode 2 Prioritize the OPTICAL 2 and COAXIAL 2 signals
MADI 1
CH1–64
Settings
