GB
5.2 In-Line Current Measurement
In this mode, current measurements can be taken in-line with the circuit in the same way as a normal multimeter.
This is a more accurate method when measuring smaller currents such as a parasitic drain.

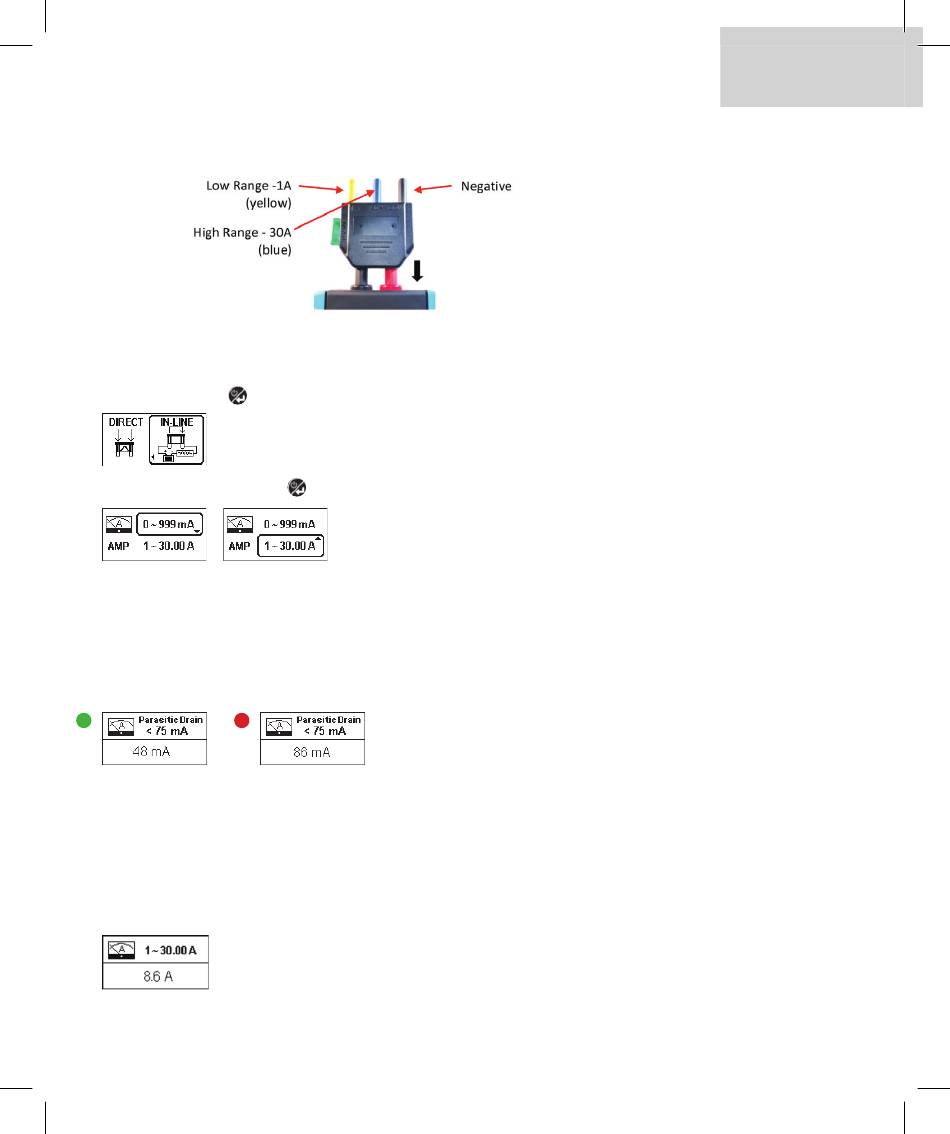

1. Insert current adapter into top of tester, making sure red/black contacts on adapter match red/black sockets on tester
2. Attach black probe to black (negative) terminal on current adapter
3. Attach red probe to either 1amp (yellow) or 30Amp (blue) terminal on current adapter
4. Turn Selector Dial to Current Mode (A position)
5. Select IN-LINE then press button to continue
6. Select required test range then press button.
Low range High range
7. The probes can now be connected in-line with the circuit to be tested. For example, remove a fuse and connect the probes directly to the fuse contacts
5.2.1 Low Range (0 - 999mA)
This range is useful for measuring parasitic drains, which may cause long term discharge on vehicle batteries
The current draw will displayed as shown below
To assist when checking for parasitic drains, the Status Indicator will also light up
Green = Current drain < 75mA
Red = Current drain > 75mA
4.2.2 High Range (1 – 30A)
This range is useful for checking higher current circuits such as wiper motors, radiator fans, power windows, etc.
The current draw will displayed as shown below
6
