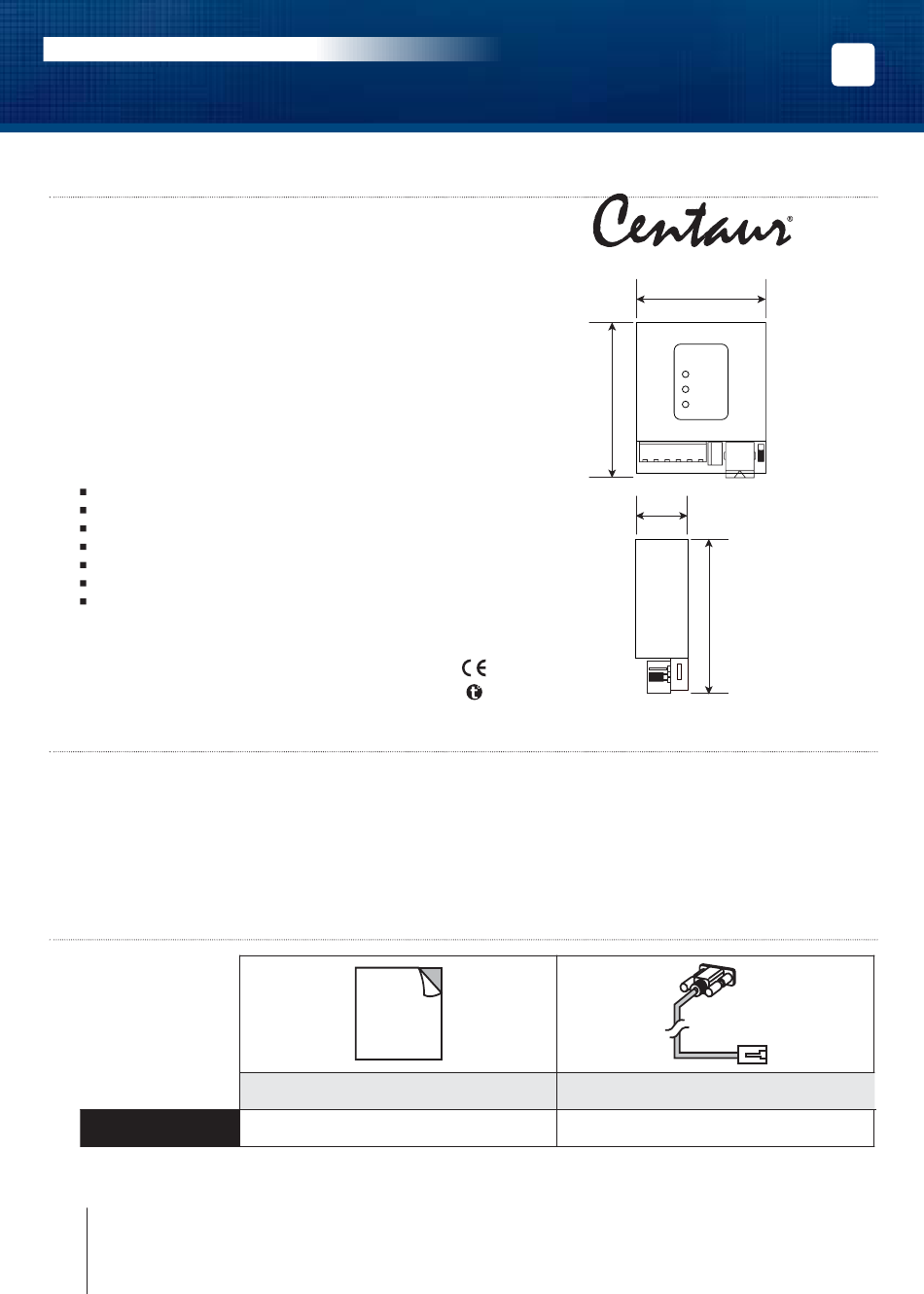

INSTALLATION MANUAL
CAA360USBRS
USB or RS232 > RS-485 Converter
1] PRODUCT OVERVIEW
The CA-A360-USBRS > RS-485 Converter module
is a communication interface that is installed
between the managing computer and the first
controller of your access control system. Connect
the controllers in a "daisy chain" configuration up
to a distance of 1220m (4000ft). Two converters
can also be used as a repeater, extending the
distance of an RS-232 or RS-485 bus by 1220m
(4000ft). Transmit, receive and power LEDs provide
visual indication of the module's status.
Technical specifications
Converts USB or RS-232 protocol to RS-485 protocol
Allows a total of up to 1000m (4000 feet) of RS-485
Utilizes UTP cable (Cat 5)
Transmit, Receive and Power status LEDs
Power Requirements: 12Vdc
Current consumption: 100mA max
Operating temp: -10°C to 55°C (14°F to 131°F)
2] RECOMMENDATIONS
CT-V900 Controllers communicate with the managing computer via an RS485 bus,
and to "plug and play" expansion modules through a second RS485 bus.
We recommend you use CBL-485 Bus Cable or its equivalent (Belden 1227A)
for both communication buses.
3] MOUNTING KIT
CA-A360-IUSBRS
2
cdvigroup.com
-10°C to +55°C
Two-sided adhesive
1
62,3
72
12V GND A+
B-
RX TX
24
72
DB9-25F cable
1
EN
