PP Plus 36D/401D
4.3.1 Liner
1
1 Torch neck
2 Inlet nipple
3 Wire conduit

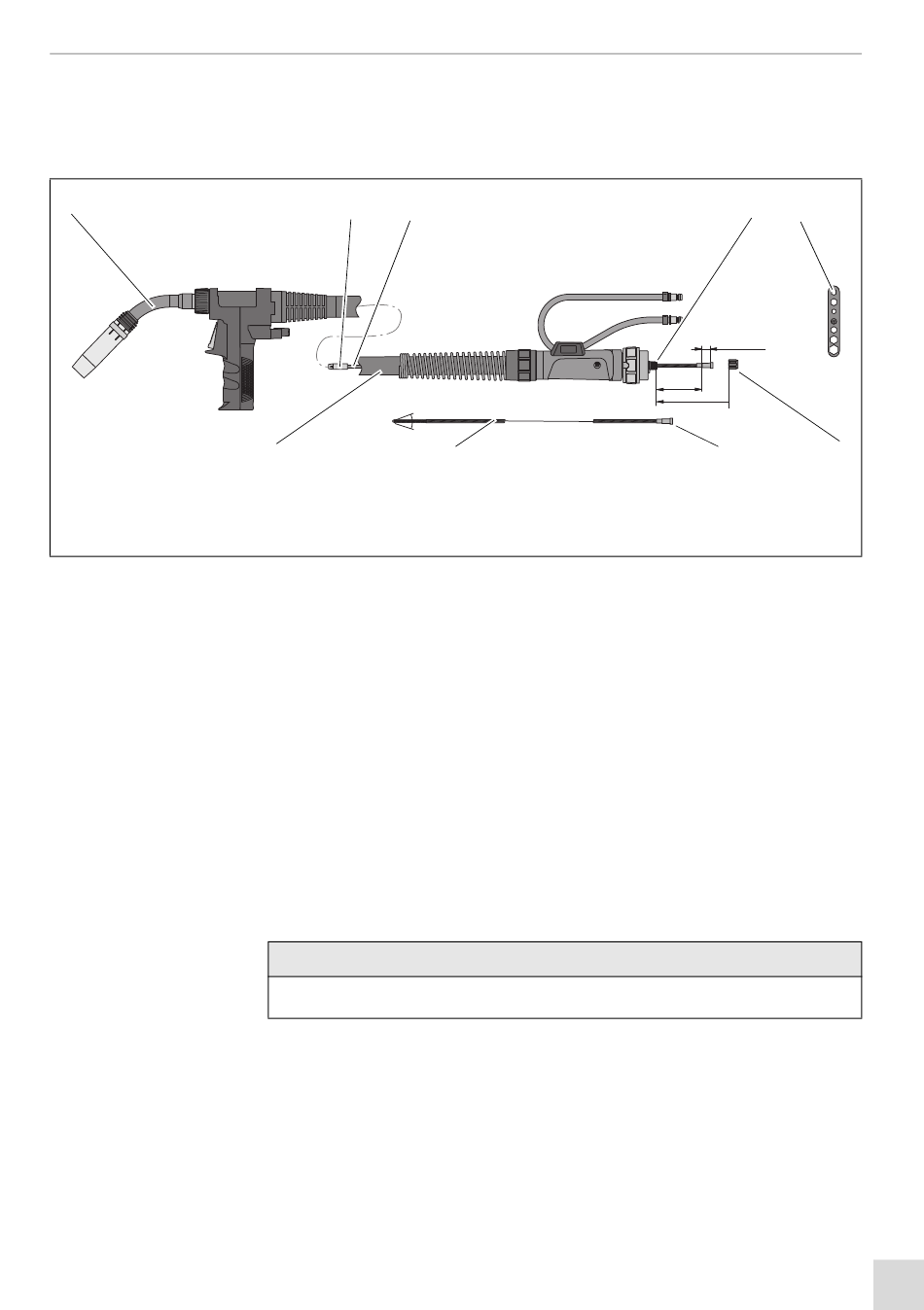

Fig. 3 Liner
To be used for steel wires.
2 3
40°
9 8
4 Central connector
5 Multiple wrench
6 Nut
1 Lay down the cable assembly (9) straight and unscrew nut (6) from central
connector (4).
2 Slide the liner (8) through the wire conduit (3) until a noticeable resistance
is felt in the inlet nipple (2).
3 Determine excess length x and pull out the liner (8) again.
4 Shorten the liner (8) by the dimension x.
5 Debur the cutting point and sharpen the spiral beginning to an angle
of 40°.
6 Insert the liner cut to length (8) into the wire conduit (3).
7 Screw down nut (6) and secure with multiple wrench (5).
NOTE
• Mount the liner (8) pressing it slightly.
4 Putting into operation
4
4 – 5 mm
x
7
7 Holding nipple
8 Liner
9 Cable assembly
5
6
EN - 7
