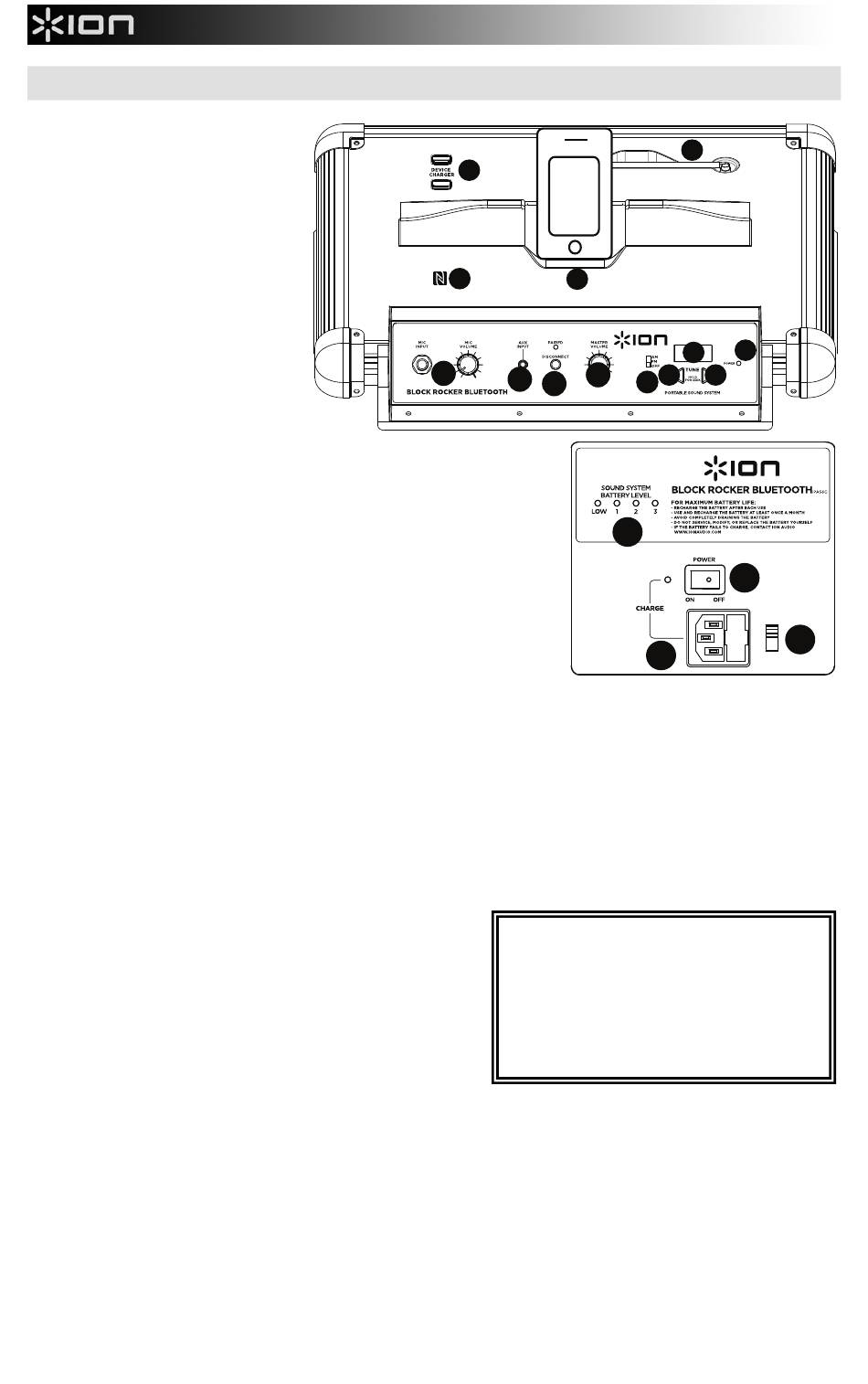

Diagram and Parts Description
1. Instrument/ Microphone Input
with Volume Control (1/4"): This
mono input accepts a 1/4" input
such as a microphone, guitar, or
other musical instrument.
2. Auxiliary input: This stereo 1/8"
input can be used to connect a
CD player, MP3 player, or other
audio source.
3. Bluetooth: The Paired LED will
be lit when a device is paired to
BLOCK ROCKER BLUETOOTH.
This LED will not be lit when
BLOCK ROCKER BLUETOOTH
is first powered on (unless it was
previously paired with a device).
Press the Disconnect button to
disconnect a paired Bluetooth
device.
4. Master Volume Control: This adjusts the speaker's main mix volume,
which includes Instrument/Microphone Input, Auxiliary Input, Tuner, and
the audio of a paired Bluetooth device.
5. Radio Selector: This switch sets the tuner to AM or FM or turns the tuner
off. (Note: This switch does not turn the unit's power off – just the tuner.)
6. LCD: Displays the current radio station.
7. Tuner: Use these buttons to search for a radio station. To "seek" (jump to
the next available station), hold this down for a few seconds until it starts to
seek a station. Unit will remember the last station you were on when you
power off and power back on.
8. Power LED: Indicates whether BLOCK ROCKER BLUETOOTH is on or
off.
9. USB Charge Ports: Connect your devices charge cables to these ports to
charge them. USB charging only functions when the unit's power is turned
on.
10. Device Cradle: Place your iPad/iPod touch®/iPhone®, Android or other device here to be held. These can be
connected via Bluetooth or to aux input using the included 1/8" to 1/8" cable.
Note: It is recommended to remove your iPad or other device from the cradle before transporting or traveling with
BLOCK ROCKER.
11. NFC: Tap your NFC (near-field communication) supported and enabled device here to pair your phone by gently
bumping on the 'N' logo. See the section Pairing with a Device using NFC for more information.
12. Antenna: Adjust this telescoping FM antenna to get the best radio reception.
Note: To prevent accidental damage, we recommend rotating the antenna only when it is extended horizontally. Also,
retract the antenna when the Tuner is not in use.
Note: To adjust AM reception, move entire unit.
13. Power Cable Input (IEC): Insert the included power cable here to charge the unit. Note that the BLOCK ROCKER
BLUETOOTH can run off the power adapter while it simultaneously charges the battery. The charge indicator illuminates
when the battery is charging.
14. Voltage Selector*: If your unit has a voltage selector switch,
change its setting only when necessary (e.g., when traveling
to a country or region with a different voltage). Selecting an
improper voltage setting can damage the unit. To change its
setting, only remove *one* screw of the cover and slide it
aside to expose the selector.
15. Power ON/OFF
BLUETOOTH on or off. Please note that while BLOCK
ROCKER BLUETOOTH is connected to a power source, it
does not need to be powered on to charge the battery.
16. Battery Level Indicator: While the unit is powered ON and
unit is not plugged in, these four lights indicate the power left
in the battery. Battery life varies based on volume and usage.
