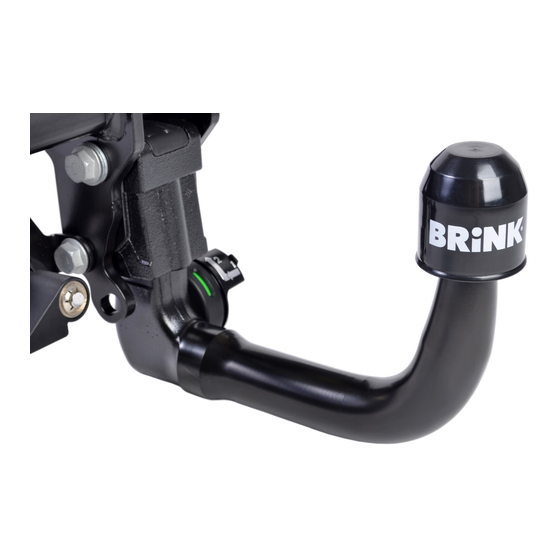

- Page 1 Fiat / Jeep Montagehandleiding Fitting instructions Montageanleitung Instructions de montage Monteringsanvisningar Montagevejledning Instrucciones de montaje Istruzioni per il montaggio Instrukcja montażu Asennusohjeet Pokyny k montáži Szerelési útmutató Руководство для монтажа Your perfect fit brink.eu...
- Page 2 1000km Couplingsclass: A50-X euro Approved tested ECE R55 E11 55R 0110623 Max. vertical load : 100 kg D-Value: 10,5 kN Copy of manufacturersplate 10.9...
- Page 3 M12x40(10.9) 110Nm M14x40 (10.9) 160Nm 6050/4 Only for trailhawk 6050/18 25Nm Ad-Blue M14x40 (10.9) M14x80(8.8) 140Nm M12x40(10.9) 110Nm 6050/2 M12x25 (100) Jeep Compass 130Nm M6x20 (10.9) 6050/3 15Nm 25Nm Fiat 500X Jeep Renegade M12x60(10.9) Jeep Renegade trailhawk 110Nm M14x40 (10.9)
- Page 4 M12x40(10.9) 95Nm M14x40 (10.9) 160Nm 6050/4 Only for trailhawk 6050/18 25Nm Ad-Blue M14x40 (10.9) M14x80(8.8) 140Nm M12x40(10.9) 95Nm 6050/2 M12x25 (100) Jeep Compass 130Nm 6050/3 M6x20 (10.9) 15Nm M12x60(10.9) 25Nm Fiat 500X 110Nm Jeep Renegade Jeep Renegade trailhawk M14x40 (10.9)
-
Page 5: Fitting Instructions
MONTAGEHANDLEIDING: BELANGRIJK: FITTING INSTRUCTIONS:... - Page 6 MONTAGEANLEITUNG: NOTE:...
- Page 7 INSTRUCTIONS DE MONTAGE: HINWEISE:...
- Page 8 MONTERINGSANVISNINGAR: REMARQUE:...
- Page 9 OBS: MONTAGEVEJLEDNING: BEMÆRK:...
- Page 10 INSTRUCCIONES DE MONTAJE: N.B.:...
-
Page 11: Istruzioni Per Il Montaggio
ISTRUZIONI PER IL MONTAGGIO: N.B.: INSTRUKCJA MONTAŻU:... - Page 12 Wskazówki:...
-
Page 13: Pokyny K Montáži
POKYNY K MONTÁŽI: TÄRKEÄÄ:... - Page 14 DŮLEŽITÉ FONTOS:...
- Page 15 РУКОВОДСТВО ДЛЯ МОНТАЖА: ВНИМАНИЕ:...
- Page 17 Fiat Fig. 1...
- Page 18 Jeep Compass Renegade Fig. 1a...
- Page 19 13 13 Fig. 3 Fig. 2...
- Page 20 Sjabloon Template Schablone Gabarit schablonen skabelon Plantilla Sagoma Szablon Malline šablona Sablon шаблон Lado interior Wewnętrzn внутренняя Binnenkant Inside bum- Innenseite Intérieur du Stötfångarens Kofangerens Lato interno Puskurin Vnitř strana Belső lökhá- del paracho- a strona сторона бам- bumper Stoßstange pare-chocs insida inderside...
- Page 24 Smart position sticker 6050 Place on outside bumper Only for Jeep Compass + Trailhawk Cut out Cut out Cut out Cut out Underside bumper...
- Page 25 Smart position sticker 6050 Only for Jeep Renegade Place on outside bumper Trailhawk Cut out Cut out Cut out Underside bumper...
- Page 26 Smart position sticker 6050 Only for Fiat 500X Urban Place on outside bumper Cut out Cut out Cut out Underside bumper Underside bumper Underside bumper Cut out Underside bumper...
- Page 27 Smart position sticker 6050 Only for Fiat 500X O -road-Look; 2015-2018 City-Look; 2015-2018 Place on outside bumper City Cross; 2018-> Cut out Underside bumper...
