5.6. Closing the casing

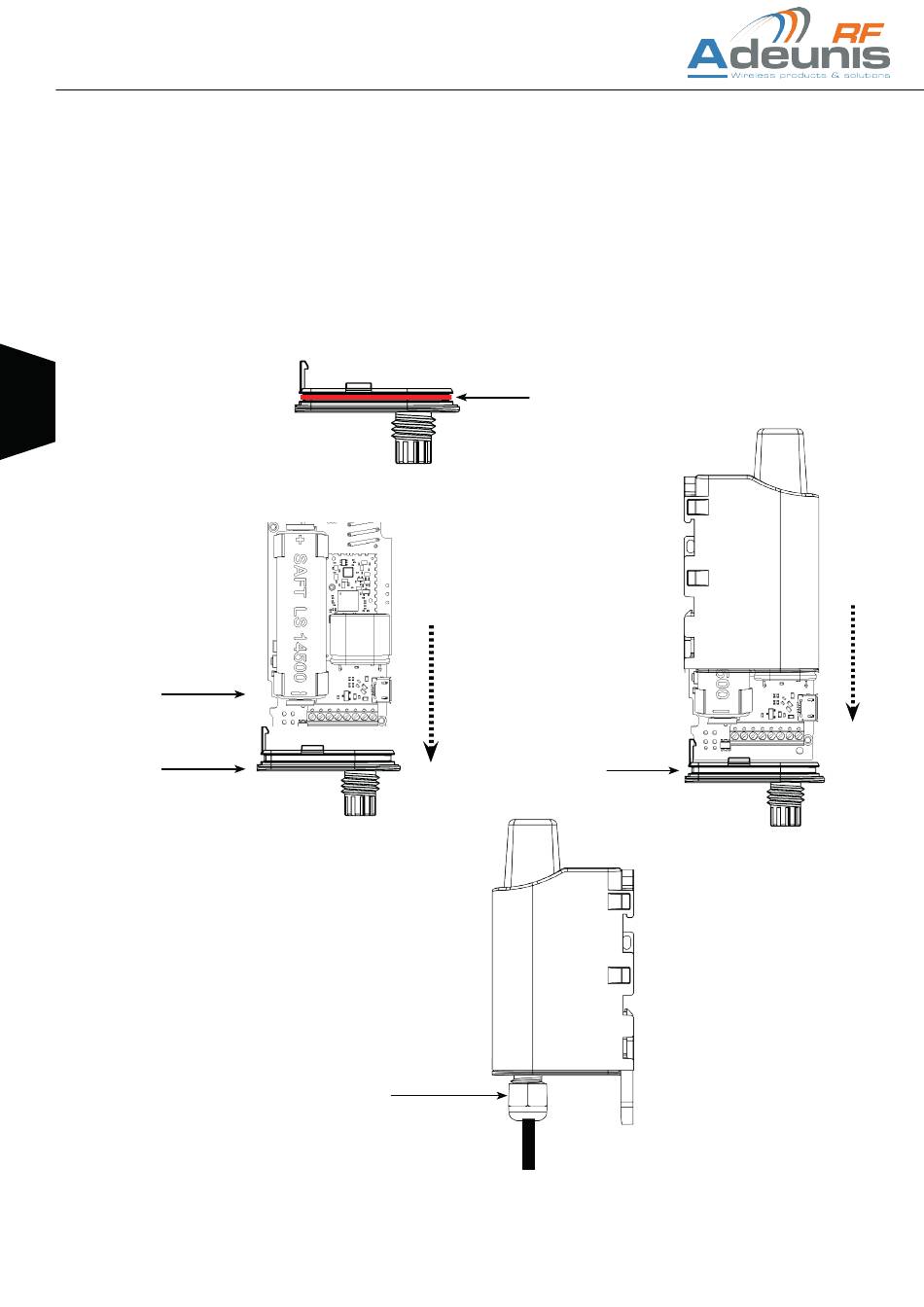

Once previous stages have been carried out, you can close the casing of the sigfox DRY CONTACTS
Procedure:
1.
Make sure that the seal is properly positioned on the base
2.
Clip the electronic board onto the casing's base. Make sure that the fastening clip is properly locked into the board's fitting.
3.
Insert the upper part of the casing. Inside this part there are guide rails for the board. Make sure that the board is properly positioned
within these guides.
4.
Once the board is in position, lower the upper cover and lock it onto the casing's base. Strong pressure will enable both parts to be clipped
together and will enable protection level IP67 to be ensured.
5.
Finish the assembly by locking the packing gland's nut in position
EN
Fitting
Fastening clip
1
2
Packing gland nut
Seal
3/4
Locking clips for
the upper casing
5
