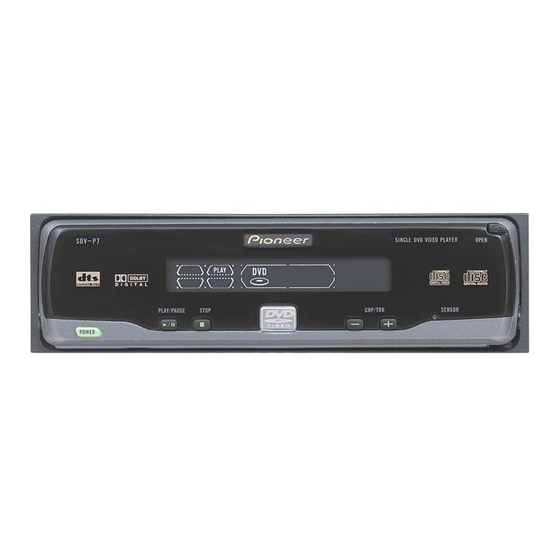

Pioneer SDV-P7 Manuel D'installation

SDV-P7
This product conforms to CEMA cord colors.
Le code de couleur des câbles utilisé pour ce produit est
conforme à CEMA.
Printed in Japan
Imprimé au Japon
<CRD3465-A> UC <KYMFF/01D00000>
Connecting the Units
Note:
• This unit is for vehicles with a 12-volt battery and
• To prevent incorrect connection, the input side of
negative grounding. Before installing it in a recre- the IP-BUS connector is blue, and the output side
ational vehicle, truck, or bus, check the battery is black. Connect the connectors of the same
voltage. colors correctly.
• To avoid shorts in the electrical system, be sure to • If this unit is installed in a vehicle that does not
disconnect the ≠ battery cable before beginning have an ACC (accessory) position on the ignition
installation. switch, the red lead of the unit should be connected
to a terminal coupled with ignition switch ON/OFF
• Refer to the owner's manual for details on
operations. If this is not done, the vehicle battery
connecting the power amp and other units, then
make connections correctly. may be drained when you are away from the vehi-
cle for several hours. (Fig.1)
• Secure the wiring with cable clamps or adhesive
tape. To protect the wiring, wrap adhesive tape
around them where they lie against metal parts.
• Route and secure all wiring so it cannot touch any
moving parts, such as the gear shift, handbrake and
seat rails. Do not route wiring in places that get
hot, such as near the heater outlet. If the insulation
of the wiring melts or gets torn, there is a danger of
the wiring short-circuiting to the vehicle body.
• Don't pass the yellow lead through a hole into the ACC position No ACC position
engine compartment to connect to the battery. This
will damage the lead insulation and cause a very
dangerous short.
• Do not shorten any leads. If you do, the protection
circuit may fail to work when it should.
• Never feed power to other equipment by cutting
• Cords for this product and those for other products
the insulation of the power supply lead of the unit may be different colors even if they have the same
and tapping into the lead. The current capacity of function. When connecting this product to another
the lead will be exceeded, causing overheating. product, refer to the supplied Installation manuals
of both products and connect cords that have the
• When replacing fuse, be sure to use only fuse of
the rating prescribed on the fuse holder. same function.
When Connecting the Multi-Channel AV Master Unit
Multi-Channel AV
Master Unit (e.g. AVM-P9000R)
(sold separately)
Green
Yellow Blue
Fig. 1
Blue
Optical cable (supplied with the
Multi-Channel AV Master Unit)
IP-BUS cable
(supplied with the TV tuner)
FM MODULATOR
IP-BUS MAIN UNIT
IP-BUS AV MASTER
RCA cable
(sold separately)
Red
20 pin cable
(supplied with the TV tuner)
IP-BUS STAND ALONE
Black
RCA cable (supplied) Yellow
6 m
IP-BUS cable
Blue
(supplied with the Multi-
Channel AV Master Unit)
V.SEL cable
(supplied with the display)
Speaker Unit
(supplied with the
display)
Black
Blue
Hide-away TV Tuner
(e.g. GEX-P7000TV)
(sold separately)
AV system Display
(e.g. AVX-P7000CD)
(sold separately)
IP-BUS cable
(supplied with the display)
Green
Gray
AV cable (supplied with the
Gray
Multi-Channel AV Master Unit)
<ENGLISH>
Yellow (front video output)
This product
15 cm
Blue
Not used.
40 cm
Blue
Multi-CD player
(sold separately)
Blue
Black
Green
Gray
20 pin cable
(supplied with the display)
Fig. 2
