3.2 CONNECTIONS
Reminder of Safety Instructions:
Select an electrical power supply outlet that corresponds to the general safety requirements listed in section 1
of this document.

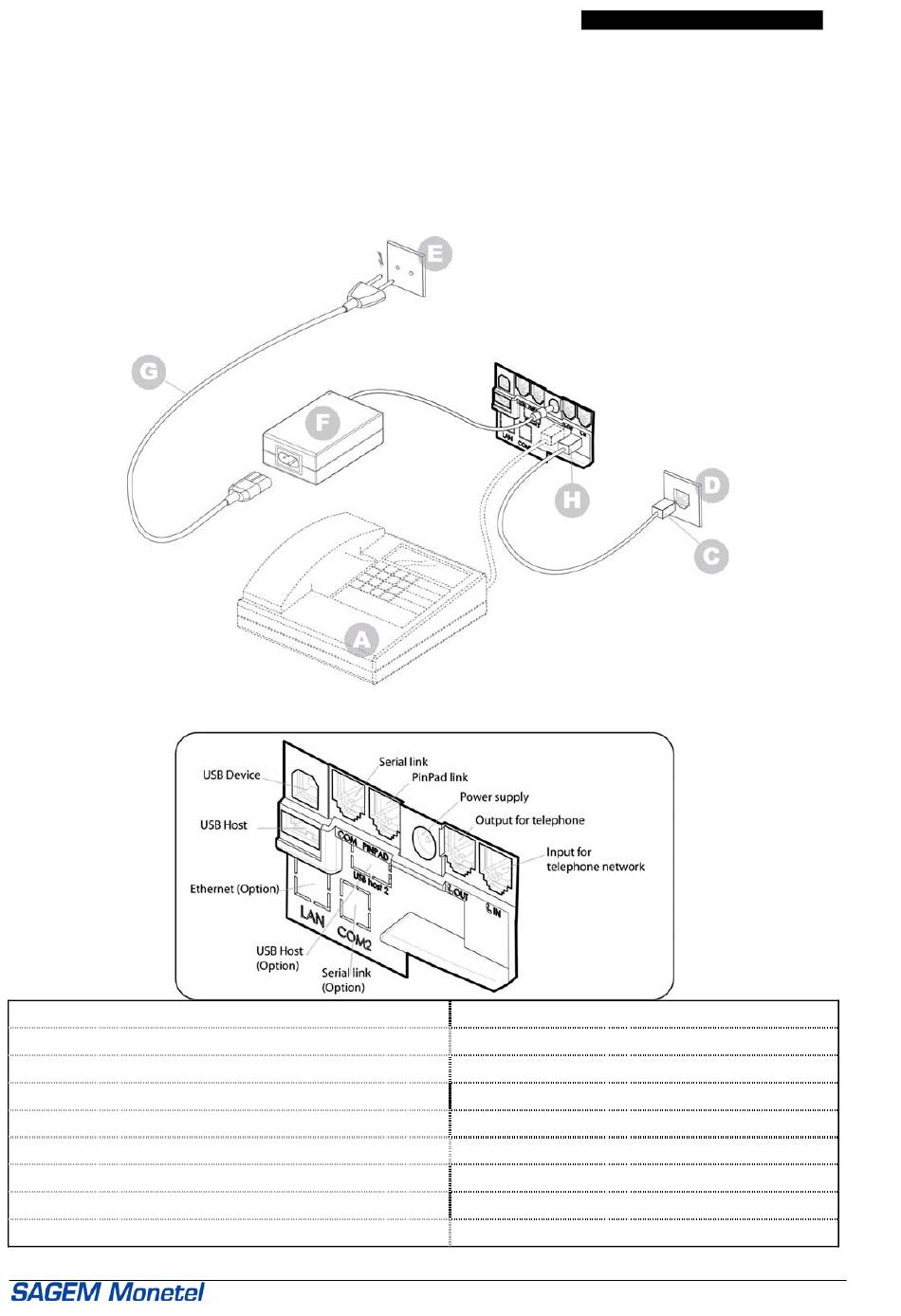

Equip the EFTsmart terminal by making the following connections:
- plug in telephone cord (H) in jack "IN" of the EFTsmart terminal,
- plug in the jack of its power supply unit (F).
A = telephone (if needed)
C = connection to the telephone network
E = mains power supply network
G = mains supply cable
IN = input for telephone network
COM = serial link (cash register, Local Loading Tool...)
USB Host = Universal Serial Bus host (PPR30, P30)
Ethernet plug = LAN link (optional)
nd
USB Host 2 = 2 universal serial bus host (optional)
D = telephone network outlet jack
F = power supply block
H = connection to IN of EFTsmart
OUT = output for telephone
PIN PAD = P in- P a d link
USB S = Universal Serial Bus function
COM 2 = 2
page 24 / 40
INSTALLATION MANUAL
nd
serial link (optional)
