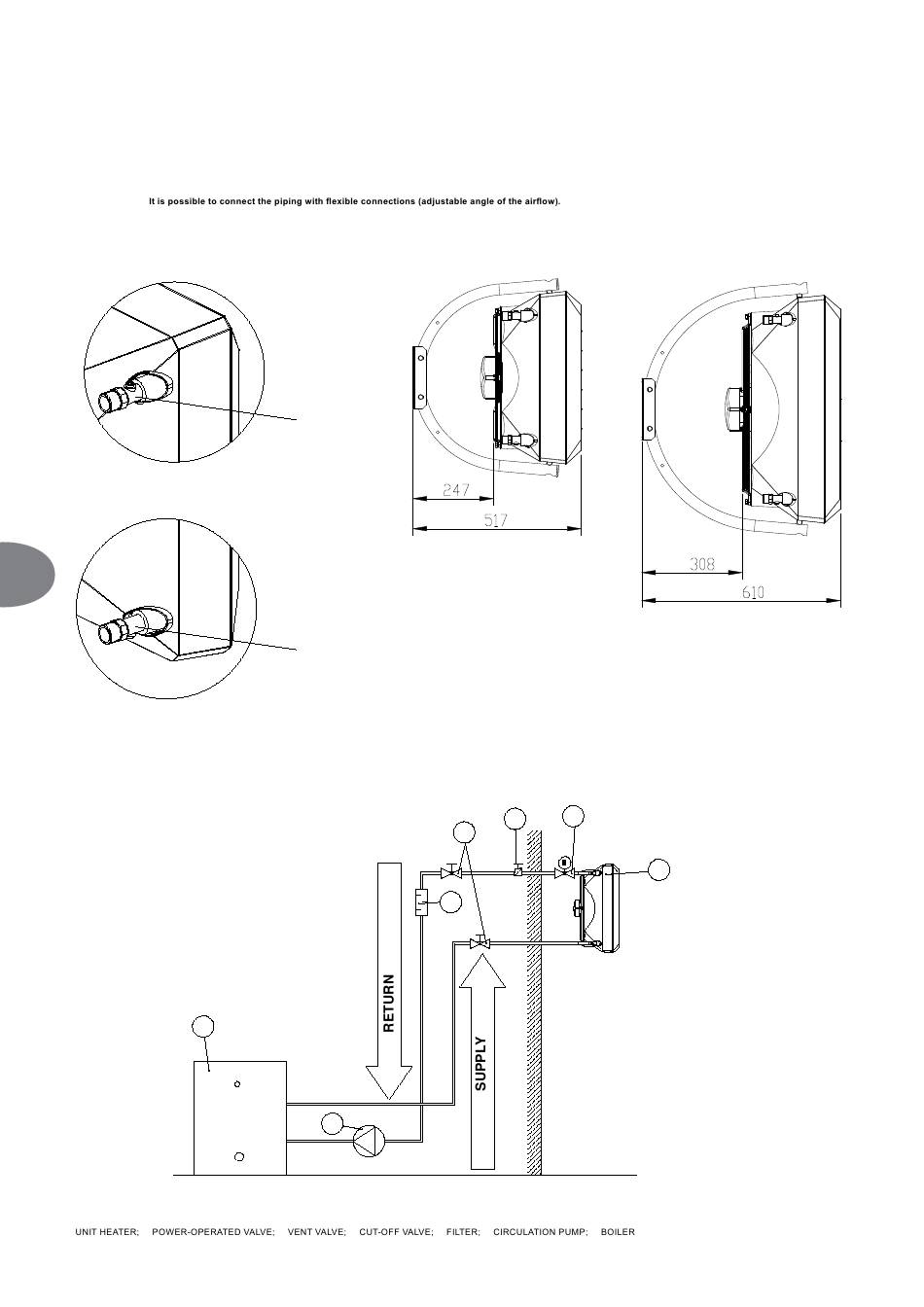

4.2 INSTALLATION INSTRUCTIONS AND MOUNTING DISTANCES
Installation of the heating medium supply system While installing the piping for the heating medium, secure the exchanger connection against twisting 1. The piping should not overload the
heater connections.
VOLCANO VR Mini, VR1, VR2, VR3
EN
EXAMPLE OF A HYDRAULIC SYSTEM:
1. 2.
return
supply
7
6
3. 4.
VOLCANO VR Mini
2
3
4
5
5. 6. 7.
34
VOLCANO VR1, VR2, VR3, VR-D
1
