H-10195, H-10196
H-10197
MODULAR DRAWER
WORKBENCHES
TOOLS NEEDED
Drill
3/16" Drill Bit
Cabinet x 1
Channel
(left-hand) x 1
1.
Flip leg upside down. Place
leveling feet into threaded
holes on bottom of leg and
twist clockwise to attach.
(See Figure 1)
NOTE: Workbench can
have leg assembled to
the right or left-hand side
of the cabinet. Cabinet
has threaded holes on
each side for support
dowels.
PAGE 1 OF 6
1-800-295-5510
uline.com
Phillips Head
or
10 mm Socket
Drill Bit

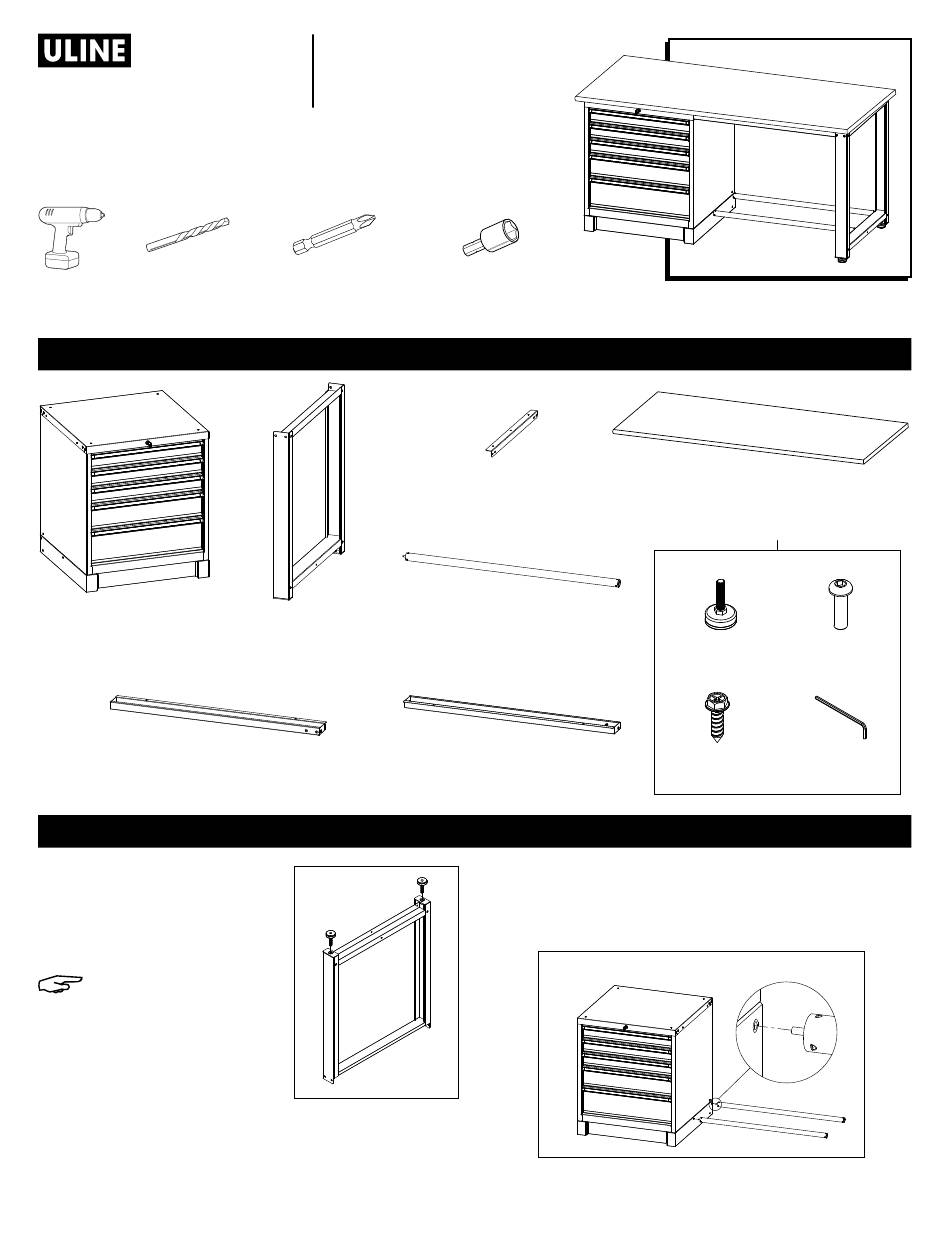

PARTS
Support Bracket x 2
Leg x 1
Support Dowel x 2
(right-hand) x 1
ASSEMBLY
Figure 1
Drill Bit
Channel
2. Choose desired cabinet side. Support dowel has a
male and female threaded end. Insert male end
of dowel into threaded holes of cabinet and turn
clockwise until fully tightened. (See Figure 2)
Figure 2
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Tabletop x 1
Hardware Kit
Leveling Foot x 2
M6 x 20 mm
Bolt x 16
ST6.3 x 25 mm
Allen Wrench x 1
Wood Screw x 12
0125 IH-10195
