Description
1
Bolt M5×50
2
Exhaust Cap
3
Compressed Spring
16*8*2.6
4
Rectangle Washer
5
Cylinder Cover
6
O-ring 11.7 2.4
*
7
O-ring 26.2 2.4
*
8
Head Valve Piston
9
Collar
10
O-ring 21.3*3
11
O-ring 29.2*3.55
12
O-ring 20.3*2.3
13
Cylinder
14
O-ring
18*2.65
15
Main piston
16
Bumper
17
Sealing Washer
18
Gun body
19
Washer
20
Rectangle Washer

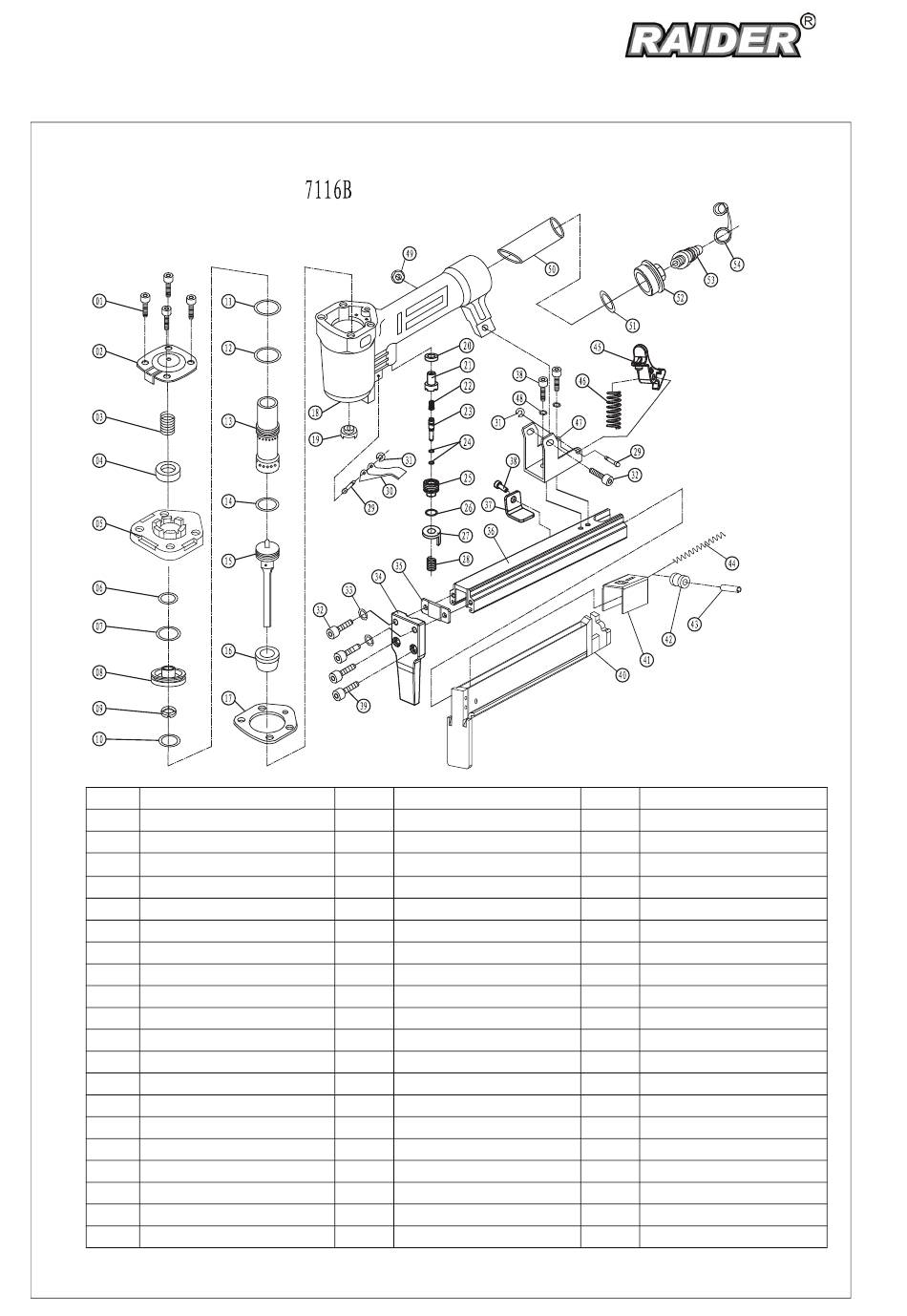

PARTS LIST RD-AS03
SPARE PARTS
No.
Description
21
Trigger Valve Guide
22
Trigger stem Spring
23
Trigger Valve Stem
24
O-ring 2.5*1.5
25
Trigger Valve Seat
26
O-ring 11.2*2
27
Safety Latch
28
Compressed Spring
29
Step Pin
30
Trigger Lever
31
E-ring ø 2.5
32
Bolt M5×20
33
Spring Washer 5
34
Driver Guide
35
Sticker Plate
36
Mixed magazine
37
Wire stop plunger
38
Bolt M4 6
39
Bolt M4 14
40
Guide pin cover Assembly
12*7.2*3
No.
41
42
43
44
45
46
47
48
49
50
51
52
53
54
*
*
Description
Pusher
Trolley
Pin 2.5*7.4
Spring
Fixed Seat
Fixed Seat Spring
Support seat
Spring Washer 4
Nut M5
Rubber Handle Case
O-ring 35.5×2.3
Rear cap
Air Inlet Plug
Plug Sheath
