For all models except 15" (38.1 cm) model:
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper wire.
Electrically ground cooktop.
Failure to follow these instructions can result in death,
fire, or electrical shock.
For 15" (38.1 cm) model only:
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 12 gauge copper wire.
Electrically ground cooktop.
Failure to follow these instructions can result in death,
fire, or electrical shock.
This cooktop is manufactured with a frame connected, green or
bare ground wire. Connect the cooktop cable to the junction box
through the UL listed or CSA approved conduit connector.

Make Electrical Connection

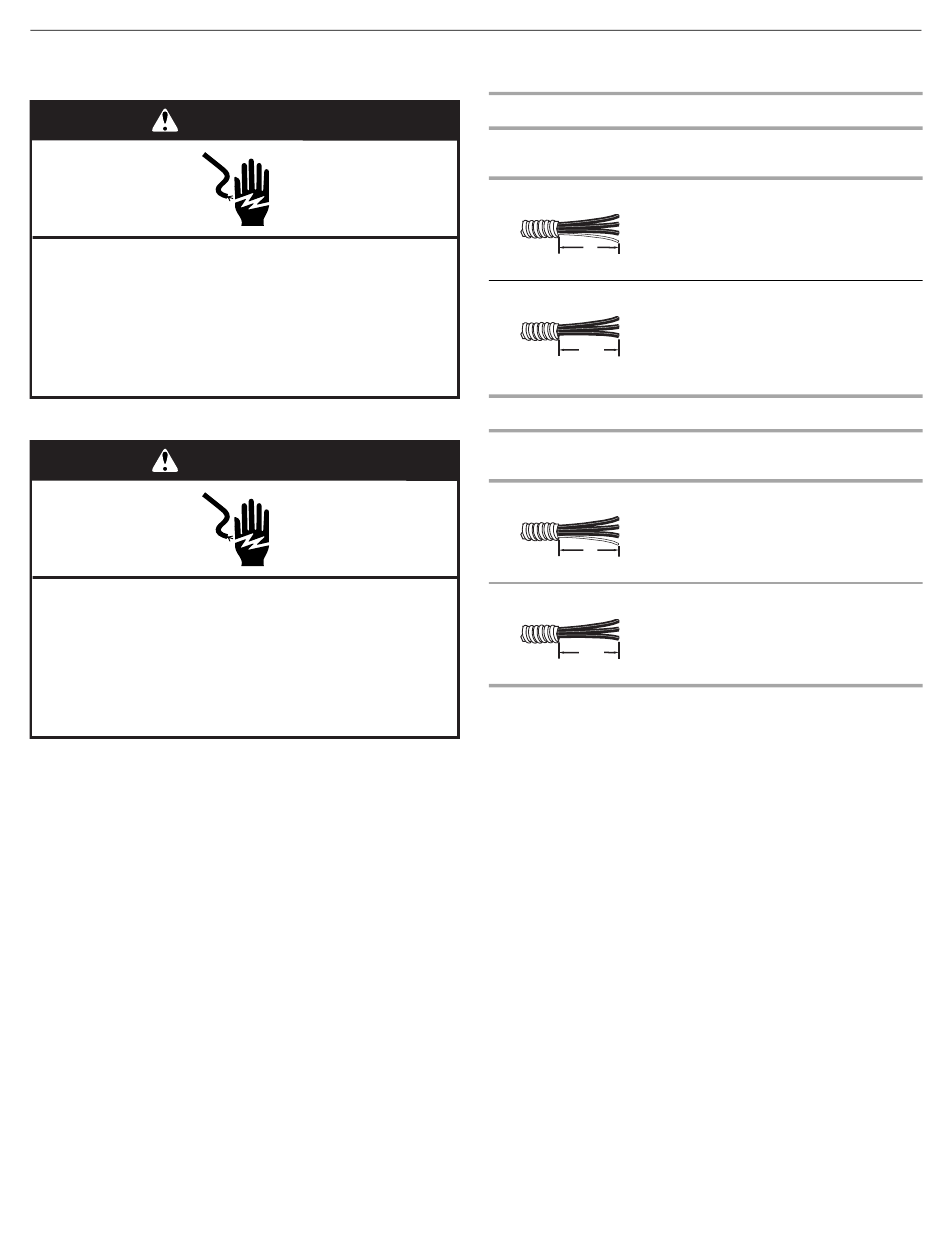

Electrical Connection Options
For cooktops with a 4-wire cable:
If your home has:
4-wire direct
3-wire direct
For cooktops with a 3-wire cable:
If your home has:
4-wire direct
3-wire direct
And you will be
connecting to:
A fused
disconnect or
circuit breaker
box
5"
(12.7 cm)
A fused
disconnect or
circuit breaker
box
3¹⁄₂"
(8.9 cm)
And you will be
connecting to:
A fused
disconnect or
circuit breaker
box
5"
(12.7 cm)
A fused
disconnect or
circuit breaker
box
3¹⁄₂"
(8.9 cm)
Go to Section:
4-Wire Cable from
Power Supply to
4-Wire Cable from
Cooktop
3-Wire Cable from
Power Supply to
4-Wire Cable from
Cooktop
Go to Section:
4-Wire Cable from
Power Supply to
3-Wire Cable from
Cooktop
3-Wire Cable from
Power Supply to
3-Wire Cable from
Cooktop
7
