ABB ReliaHome Canadian Load Centers Instructions D'installation

—
INSTA LL ATION INSTRUC TIONS

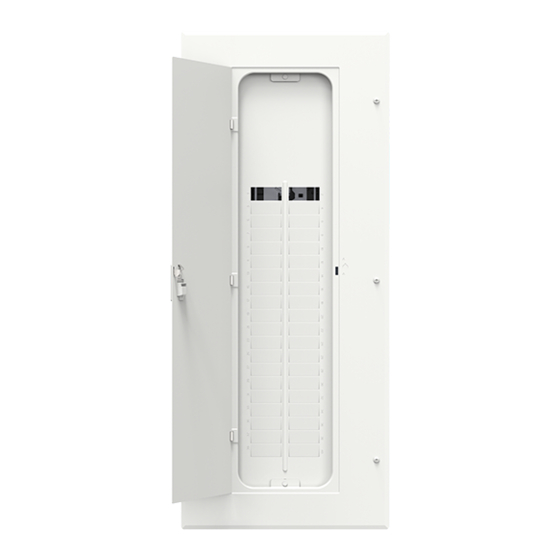

ReliaHome™ Canadian Load Centers
100–225 Ampere Three-Phase 12–42 Circuits Indoor Type
Important Safety Instructions – Read All Instructions
Before Using
WARNING: Hazard of electrical shock or burn. Turn
off power before working inside this equipment.
Do not attempt to install or perform maintenance on
equipment while it is energized. Death, severe
personal injury, or substantial property damage can
result from contact with energized equipment.
Always verify that no voltage is present before
proceeding with the task, and always follow generally
accepted safety procedures. ABB is not liable for the
misapplication or mis installation of its products.
General
To comply with the Canadian Electrical Code and the Canadian
Standards Association, the load center must be installed in
accordance with the information included on the label on the
inside of the equipment. This must also be done in accordance
with the applicable local electrical codes and by a qualified
electrical contractor or licensed electrician.
Installation
1. Remove Front
Slip the front and the accessory package back into the carton
to protect the finish.
2. Remove Service Entrance Barrier (Main Breaker only)
Back out and save the two mounting screws securing the service
entrance barrier over the main breaker connections, then lift the
barrier up and out.
Barrier
Mounting
Screws
3. Remove Interior (Optional)
Back out the mounting screws and save them for reuse.
Mounting
Screws
4. Mount Box
Flush mount: Line up the front box edge with the finish wall
surface and screw or nail to the stud through the small knockouts
in the box side.
Surface mount: Screw or nail through the keyhole slots in the
back of the box.
5. Remove Knockouts for All Main and Branch Circuits
First knock the center knockout inward. The outer rings should
be alternately pried up or driven in one at a time.
