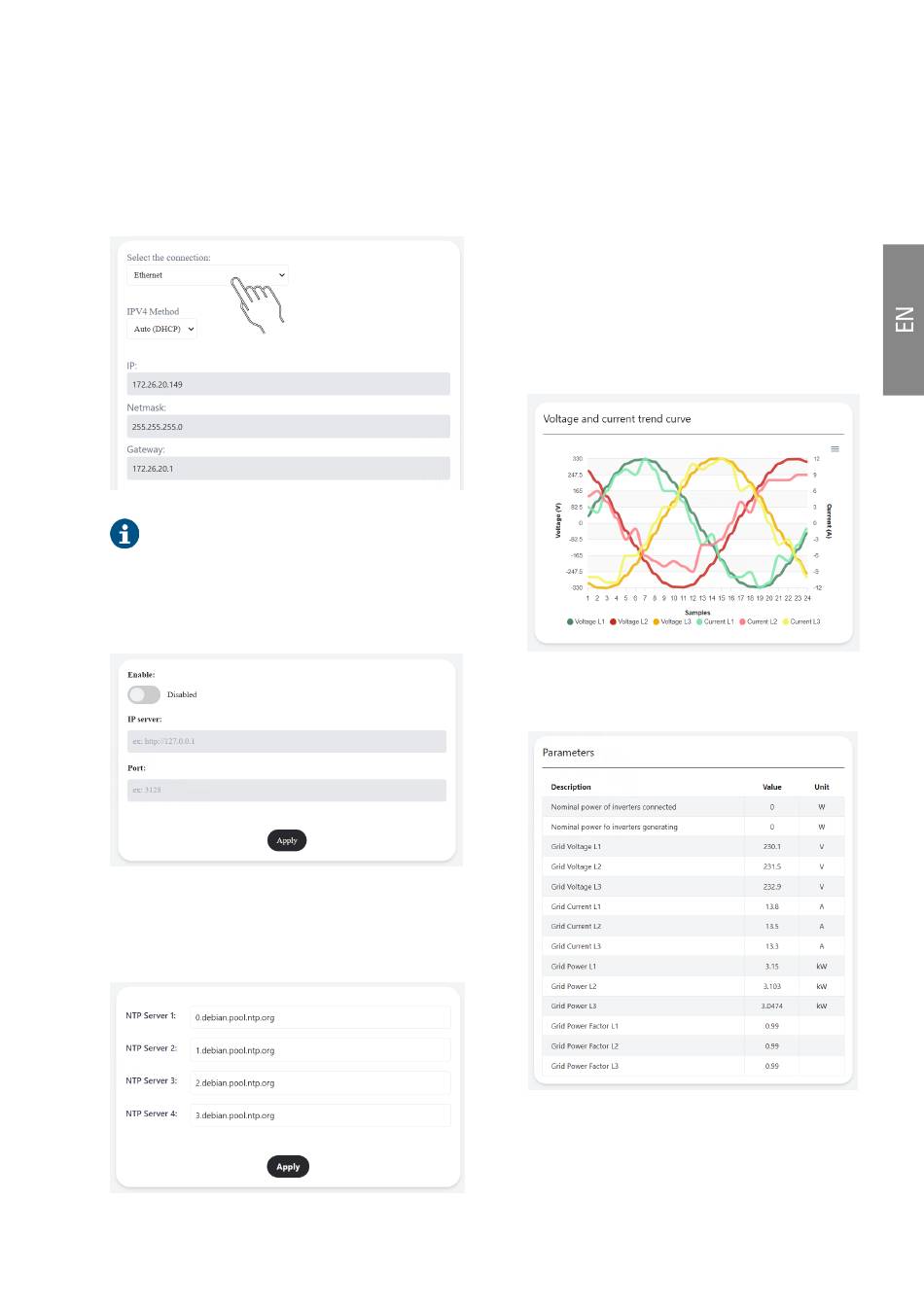

8.3.3.2. Ethernet configuration.
To access the Ethernet configuration, change the connection mode
to Ethernet using the first drop-down menu.
Next, set the IP of the device manually or enable DHCP mode so
that the device acquires a default IP.
It is not necessary to add the DNS for correct configuration
of the network.
8.3.4. Proxy configuration.
On this screen, a proxy server is configured.
8.3.5. NTP servers.
If you want to modify the NTP server on the card, do so in this
section. By default, it is configured with the pool.ntp.org servers.
USER MANUAL
8.3.6. Manager Settings.
Available only for engineer or administrator users. This screen
allows you to view the initialisation of the meter, make a single
reading of the supply voltages, currents and powers, view/scan the
number of inverters installed and configure the control parameters,
such as the Export Power Control.
8.3.6.1. Meter.
This screen is composed of four windows:
Voltage and current trend
1.
voltage and current signals in a 50 Hz cycle. It also allows you
to interact with them: apply display filter, dynamic cursor, ex-
port signals in different formats (.svg, .png and .csv).
Paremeters: Visualisation of several parameters (voltages,
2.
currents, powers, power factors, ...) per phase, per service
connection by means of a single reading.
Phase
settings: Includes, phase rotation detection algorithm
3.
and meter initialisation, phase rotation and phase direction
configuration and help button with phase rotation auto-con-
figuration algorithm.
curve: It allows the display of
SLC ENERGY MANAGER ENERGY METER
91
