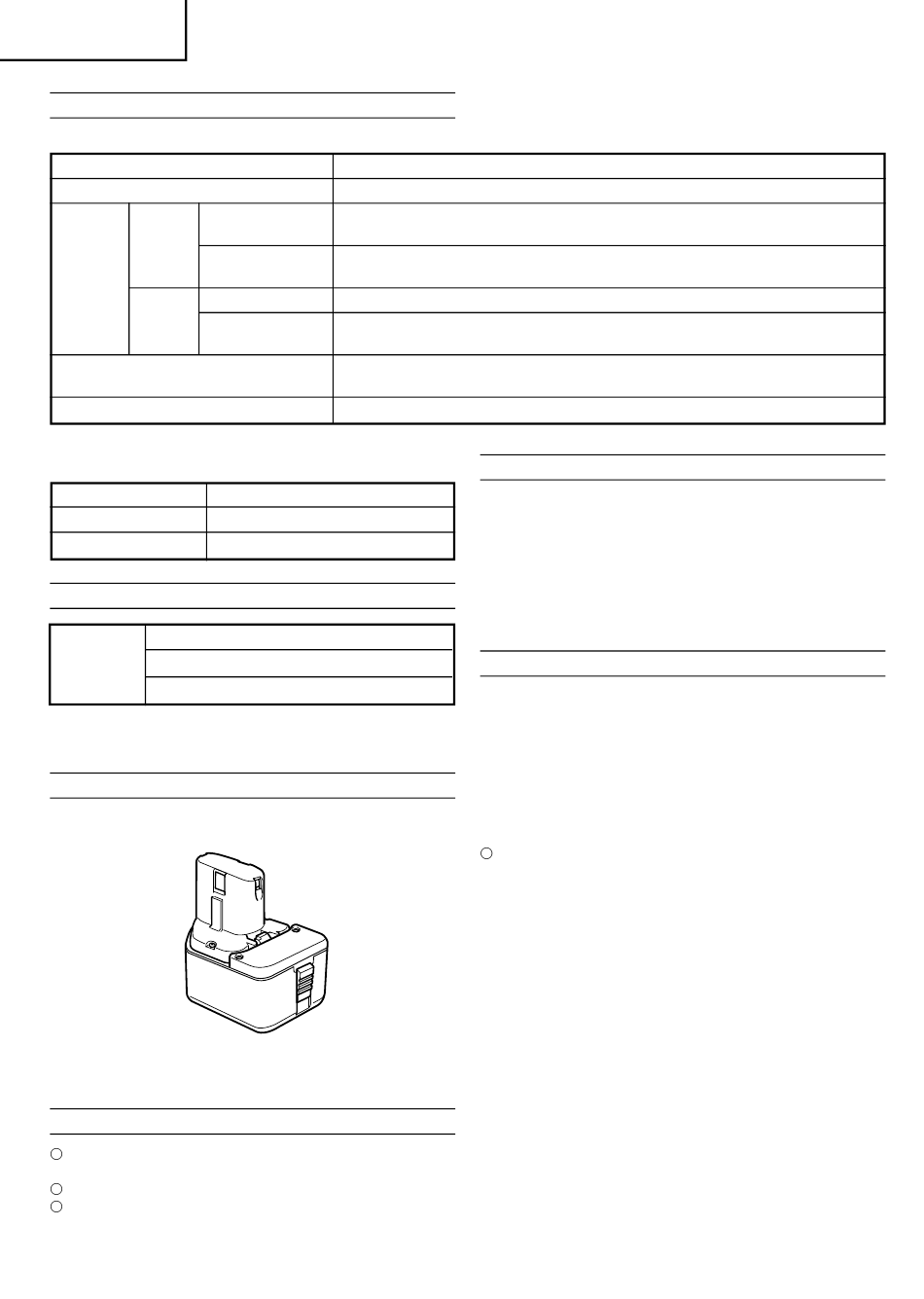

SPECIFICATIONS
POWER TOOL
Model
No-load speed (Low/High)
Wood
(Thickness 18mm)
Drilling
Metal
Capacity (Thickness 1.6mm)
Machine screw
Driving
Wood screw
Rechargeable battery
Weight
CHARGER
Model
Charging voltage
Weight
STANDARD ACCESSORIES
1 Plus driver bit (No. 2) .................. 1
2 Charger (UC14YFA) ......................... 1
DS12DM
3 Plastic case ....................................... 1
Standard accessories are subject to change without
notice.
OPTIONAL ACCESSORIES (sold separately)
1. Battery (EB1214L, EB1220BL, EB1222HL, EB1230HL)
Optional accessories are subject to change without
notice.
APPLICATIONS
Driving and removing of machine screws, wood
screws, tapping screws, etc.
Drilling of various metals.
Drilling of various woods.
7
All manuals and user guides at all-guides.com
UC14YFA
7.2 – 14.4 V
0.6 kg
DS12DM
0 – 350 / 0 – 1200min
27 mm
Steel: 13 mm,
Aluminum: 13 mm
6 mm
6.8 mm (diameter) × 50 mm (length)
(Requires a pilot hole)
EB1220BL: Ni-Cd 12 V (2.0 Ah, 10 cells)
EB1230HL: Ni-MH 12 V (3.0 Ah, 10 cells)
1.7 kg
BATTERY REMOVAL/INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery latch
to remove the battery (see Figs. 1 and 2).
CAUTION:
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (see
Fig. 2).
CHARGING
Before using the driver drill, charge the battery as follows.
1. Connect the charger's power cord to a receptacle.
When the power cord is connected, the charger's
pilot lamp will blink in red. (At 1-second intervals).
2. Insert the battery into the charger.
Firmly insert the battery into the charger till it
contacts the bottom of the charger and checking
the polarities as shown in Fig. 3.
CAUTION:
If the batteries are inserted in the reverse direction,
not only recharging will become impossible, but it
may also cause problems in the charger such as
a deformed recharging terminal.
3. Charging
When inserting a battery in the charger, charging
will commence and the pilot lamp will light
continuously in red.
When the battery becomes fully recharged, the pilot
lamp will blink in red. (At 1-second intervals.) (See
Table 1)
(1) Pilot lamp indication
The indications of the pilot lamp will be as shown
in Table 1, according to the condition of the charger
or the rechargeable battery.
–1
