Components
 Components
1. Main Unit
The Main Unit is the heart of the unit. Operating signals are generated here and passed to the
micro-motor.
2. Micro-Motor
The micro-motor is a DC micro-motor. Speed is dependent on voltage input.
3. AC power cord
4. Micro-Motor
The micro-motor is a DC micro-motor. Speed is dependent on voltage input.
5. Main Power Switch
The main power switch is used to turn the unit on and off.
6. Forward/Reverse Switch
Controls the direction that the micro-motor rotates.

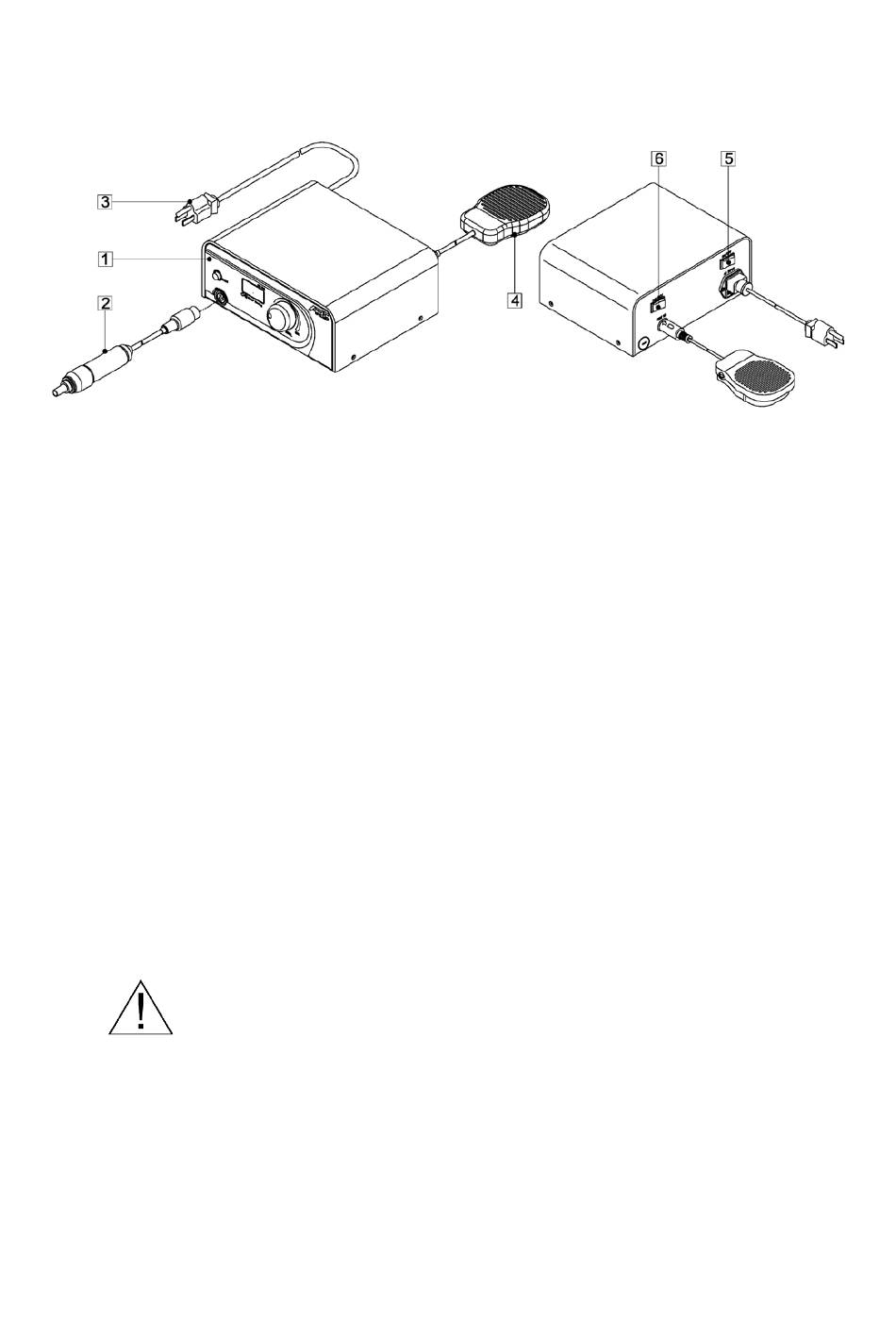

Figure 1. ART-PL3 Outlook diagram
Before turning the unit on, be sure the foot switch is not
in use and that there is no weight on the foot switch.
