Installation instructions, only for experts

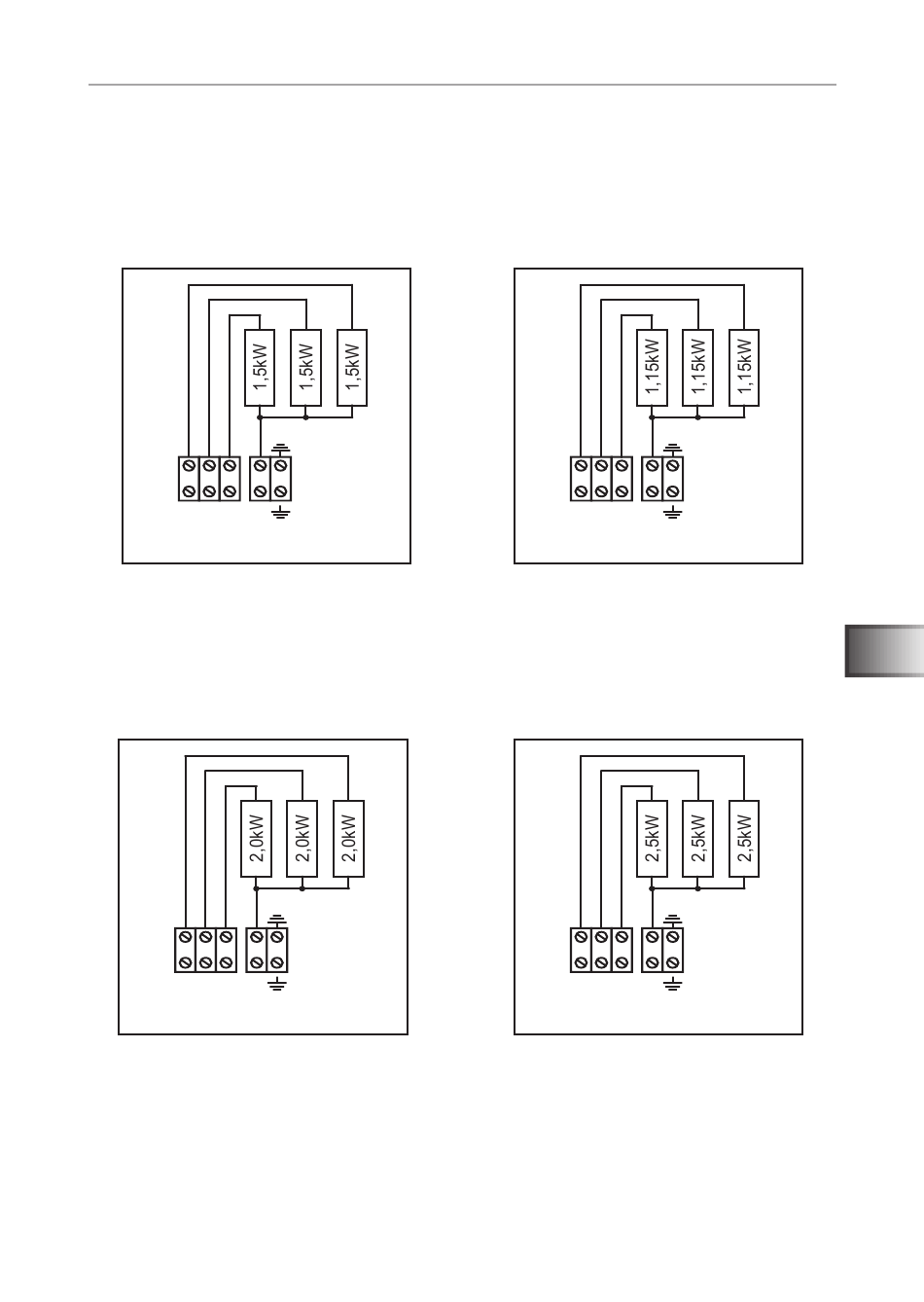

4.5. Wiring diagrams
U V W N
to the control unit
U V W N
to the control unit
WORLD OF WELLNESS
CP-RM-35
3.45 kW
CP-RM-60
6.0 kW
U V W N
CP-RM-45
to the control unit
4.5 kW
U V W N
CP-RM-75
to the control unit
7.5 kW
p. 15/24
EN
