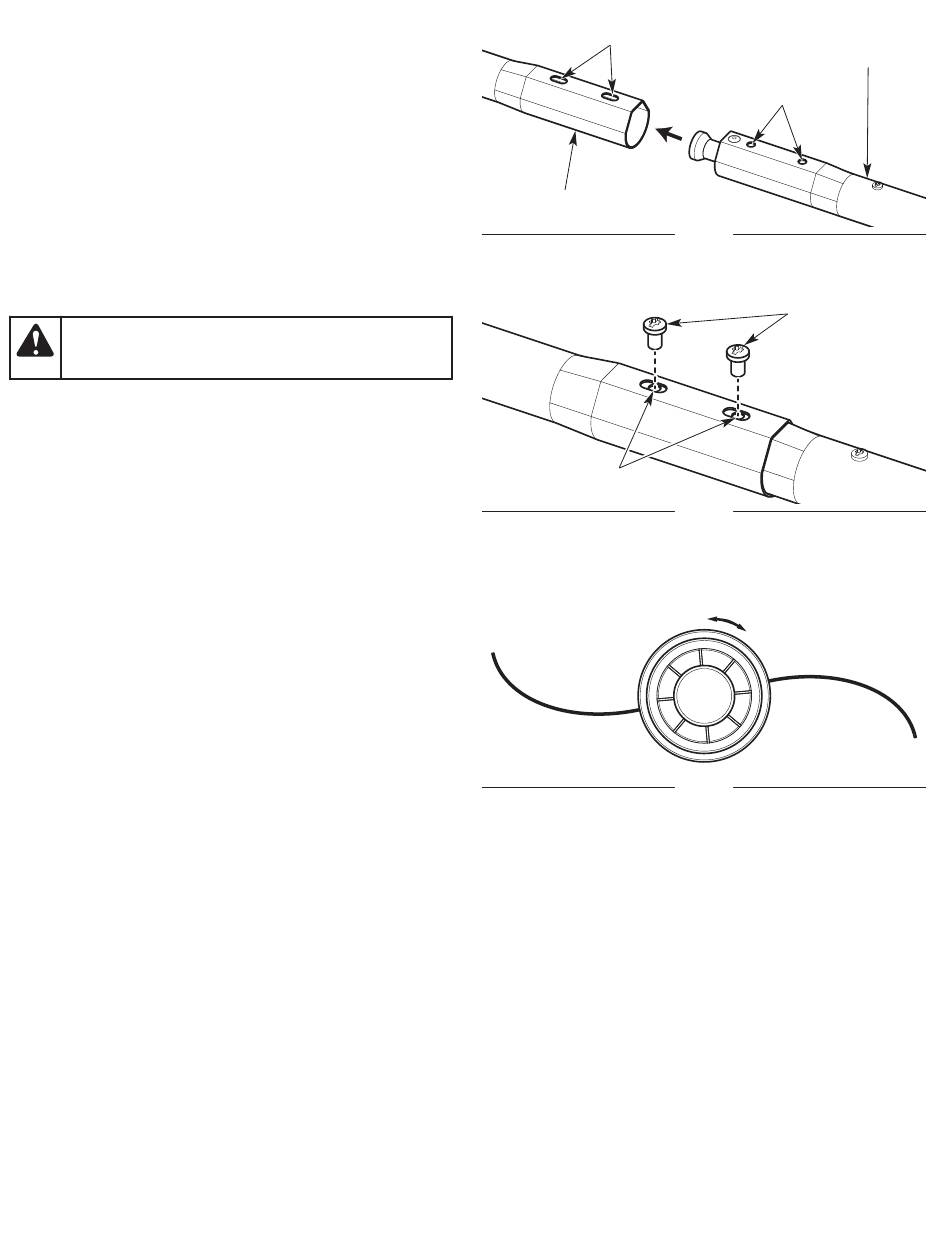

CONNECTING THE UPPER AND LOWER SHAFTS
1. Set the unit on a flat, level surface.
2. Turn the upper portion of the unit upside down. The holes on the
coupler should face up (Fig. 5).
3. Turn the lower portion of the unit upside down. The holes on the
lower shaft housing should face up (Fig. 5).
4. Push the lower shaft housing into the coupler (Fig. 5). The holes
on the lower shaft housing should align with the holes on the
coupler (Fig. 6).
IF... the lower shaft housing does not enter the coupler completely
and the holes do not align, remove the lower shaft housing,
rotate the cutting head slightly (1/8th turn) and repeat step 4
(Fig. 7).
5. Insert the screws (x2) into the aligned holes (Fig. 6).
6. Tighten the screws securely with a #2 Phillips screwdriver.
WARNING:
To prevent serious personal injury or
damage to the unit, always make sure that the screws are
securely tightened before each use.
Holes
Coupler
Holes
9
Lower Shaft
Housing
Holes
Fig. 5
Screws (x2)
Fig. 6
1/8
Fig. 7
