An installation video guide can be found on our Youtube channel:
Un guide d'installation video est disponible sur notre chaîne Youtube:
Una guía de instalación de vídeo está disponible en nuestro canal de Youtube:
OVE 2019-11-21
INSTALLATION MANUAL - SHOWER ENCLOSURE
MANUEL D'INSTALLATION - CABINE DE DOUCHE
MANUAL DE INSTALACIÓN - PUERTA DE DUCHA
Questions, problems, need help?
Call our customer service department at
1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday
Questions, problèmes ou besoin d'aide?
Contactez notre service à la clientèle au
1-866-839-2888, du lundi au vendredi de 9h00 à 17h00 HNE.
Preguntas, problemas o necesita ayuda?
Llame a nuestro departamento de servicio al cliente al
1-866-839-2888, 9 am. – 5 pm., HDE, Lunes a Viernes.

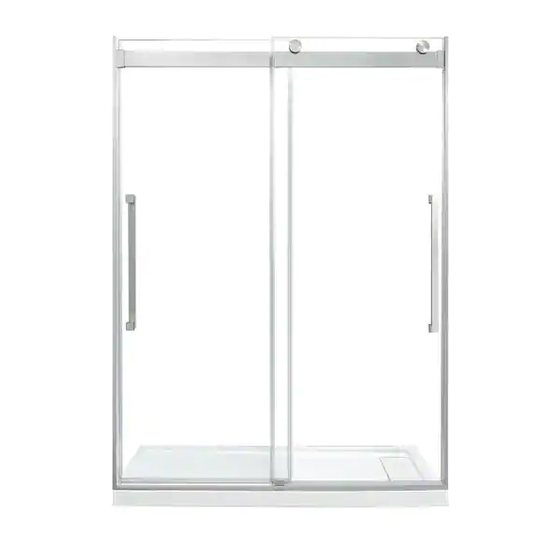

MONTEBELLO 60
PAGE 1
Publicité
Table des Matières
Manuels Connexes pour OVE MONTEBELLO 60
Sommaire des Matières pour OVE MONTEBELLO 60
- Page 1 MONTEBELLO 60 INSTALLATION MANUAL - SHOWER ENCLOSURE MANUEL D’INSTALLATION - CABINE DE DOUCHE MANUAL DE INSTALACIÓN - PUERTA DE DUCHA An installation video guide can be found on our Youtube channel: Un guide d’installation video est disponible sur notre chaîne Youtube: Una guía de instalación de vídeo está...
- Page 2 DO NOT START WITH THIS INSTALLATION MANUAL 1) FIRST, INSTALL YOUR SHOWER BASE (AN INSTALLATION MANUAL CAN BE FOUND IN THE SHOWER BASE PACKAGE). 2) SECOND, INSTALL YOUR SHOWER SIDE PANEL, IF APPLICABLE (AN INSTALLATION MANUAL CAN BE FOUND IN THE SIDE PANEL PACKAGE). 3) THIRD, INSTALL YOUR SHOWER ENCLOSURE (USING THIS MANUAL).
-
Page 3: Table Des Matières
TABLE OF CONTENT TABLE DES MATIÈRES TABLA DE CONTENIDOS TABLE OF CONTENT ................3 TABLE DES MATIÈRES ................3 TABLA DE CONTENIDOS ................3 SAFETY INFORMATION ................4 INFORMATION SUR LA SÉCURITÉ ............4 INFORMACIÓN DE SEGURIDAD ...............4 SAFETY NOTICE ..................5 AVIS DE SÉCURITÉ ..................5 AVISOS DE SEGURIDAD ................5 PREPARATION ....................5 PRÉPARATION ....................5... -
Page 4: Safety Information
SAFETY INFORMATION INFORMATION SUR LA SÉCURITÉ INFORMACIÓN DE SEGURIDAD CAUTION Please carefully read the following important safety information before handling or installing this shower. There is a risk of serious injury while handling this product. To minimize these risks, please note: •... -
Page 5: Safety Notice
SAFETY NOTICE AVIS DE SÉCURITÉ AVISOS DE SEGURIDAD NOTICE • Any modification or alteration from what is specified in this instruction manual will void any and all warranty on this product. • The distributor is not responsible for any damage to the unit or personal property caused by improper installation. If you disregard instructional warnings, you will void your warranty and possibly deal with water damage. -
Page 6: Package Content
PACKAGE CONTENT CONTENU DE L’EMBALLAGE CONTENIDO DEL PAQUETE PAGE 6... - Page 7 PACKAGE CONTENT CONTENU DE L’EMBALLAGE CONTENIDO DEL PAQUETE PAGE 7...
-
Page 8: Part List
PART LIST LISTE DES PIÈCES LISTA DE PIEZAS PART # DESCRIPTION QUANTITY CODE # DE PIÈCE DESCRIPTION QUANTITÉ CODE PARTE # DESCRIPCIÓN CANTIDAD CÓDIO Positioning tool Outil de positionnement Chrome / Chrome / Cromo: 99STR1134-WM Herramienta de posicionamiento Inner door panel Panneau de porte intérieure 99SGD0082-WM Panel de la puerta interior... -
Page 9: Supplied Hardware List
SUPPLIED HARDWARE LIST QUINCAILLERIE FOURNIE CONTENIDO DE HARDWARE Wall Anchor Screw Screw Ancrage mural Cap of inner door roller Tarugo Tornillo Tornillo Capuchon du rouleau intérieur de porte ø10x60mm ST6x70mm ST4x20mm Casquillo del rodillo interno de la puerta Cap of outer door roller Cap of outer door roller Allen key Wrench... -
Page 10: Reversibility
REVERSIBILITY RÉVERSIBILITÉ REVERSIBILIDAD This instruction is drawn up for a door opening from right to left (see illustration A). For an installation for a door opening from left to right (see illustration B), use the same instructions, but switch around the panels: mirror effect. Utilisez ces instructions pour une ouverture de la porte de droite à... -
Page 11: Shower Dimensions
SHOWER DIMENSIONS DIMENSIONS DE LA DOUCHE DIMENSIONES DE LA DUCHA Measurements Mesures Medidas 32”[813] Base depth Profondeur de la base 60”[1524] Profundidad del plato Base width Largeur de la base Anchura de la base Shower height Hauteur de la douche Altura de la ducha Shower width Largeur de la douche... -
Page 12: Shower Installation: Overview
SHOWER INSTALLATION: OVERVIEW INSTALLATION DE LA DOUCHE: VUE D’ENSEMBLE MONTAJE DE LA DUCHA: VISIÓN GENERAL A. Before you start the installation of your shower enclosure, consult the illustration A below showing a side-view of the completed installation. B. Illustration B shows the recommended wall structure and measurements for the shower installation. NOTE: Customer must follow and comply with the local and national building and plumbing code. -
Page 13: Wall-To-Wall Dimensions
WALL-TO-WALL DIMENSIONS MESURES MUR-À-MUR MEDIDAS DE PARED-A-PARED • Measure the thickness of your tiles on either side before installing the metal tracks. A thicker tile will limit your space to install the shower panels. • Make sure to have a distance tile to tile (D) between 1478mm (58 3/16 in) min. and 1498mm (59 in) max. (see image). - Page 14 STOP HERE The next step will require you to use the POSITIONING TOOL (A), do not mistake it for the WALL TRACKS (P)! REFER TO THE BELOW CLOSE-UP DRAWINGS AND ENSURE YOU USE THE POSITIONING TOOL (A) DURING THE NEXT STEP ARRÊTEZ ICI La prochaine étape vous demandera d’utiliser l’OUTIL DE POSITIONNEMENT (A), ne pas le confondre avec les RAILS D’ÉTANCHÉITÉ...
-
Page 15: Positioning Tool Installation
POSITIONING TOOL INSTALLATION INSTALLATION DE L’OUTIL DE POSITIONNEMENT INSTALACIÓN DE LA HERRAMIENTA DE POSICIONAMIENTO A. Ensure the base and walls are leveled. Place the positioning tool (A) at 3/8” (9mm) measured from the edge of the base to the edge of the positioning tool (A). -
Page 16: Support Bar Installation
SUPPORT BAR INSTALLATION INSTALLATION DE LA BARRE DE SUPPORT INSTALACIÓN DE LA BARRA DE SOPORTE A. Loosen the hex bolts from the support bar anchors (C) and then remove the cover from the support anchor (C). B. Insert the wall anchors (AA) in the pilot holes using a rubber mallet. Fix the support bar anchors (C) on the wall using the screws (BB). C. -
Page 17: Shower Door Installation
SHOWER DOORS INSTALLATION INSTALLATION DES PORTES DE DOUCHE INSTALACIÓN DE LAS PUERTAS DE LA DUCHA A. Measure the wall-to-wall distance “X” in mm, subtract 38mm, then divide the result by 2. This calculated measure is the distance of the edge of the door guide (M) to the wall, as illustrated below. - Page 18 SHOWER DOORS INSTALLATION INSTALLATION DES PORTES DE DOUCHE INSTALACIÓN DE LAS PUERTAS DE LA DUCHA Note: The Inner door panel and the Outer door panel are not interchangeable. The distance from the roller’s hole to the top edge of the panel is 3-3/4”...
- Page 19 SHOWER DOORS INSTALLATION INSTALLATION DES PORTES DE DOUCHE INSTALACIÓN DE PUERTAS DE DUCHA A-B. Gently hang the inner door panel (B) by its 2 rollers (F) on the support bar (E). C. Smoothly slide the sliding door guide (M) at the bottom of the inner door panel (B). D.
- Page 20 SHOWER DOORS INSTALLATION INSTALLATION DES PORTES DE DOUCHE INSTALACIÓN DE PUERTAS DE DUCHA A. Install the door vertical seal strip (N) on the closing end of the inner door (B). B. Install the glass panel vertical seal strip (K & L) onto the inner door panel (B). C.
- Page 21 SHOWER DOORS INSTALLATION INSTALLATION DES PORTES DE DOUCHE INSTALACIÓN DE PUERTAS DE DUCHA A-C. Gently hang the outer door panel (H) by its 2 rollers (G) on the support bar (E). D. Install the door vertical seal strip (N & L) on the closing end of the outer door (H). E.
- Page 22 SHOWER DOORS INSTALLATION INSTALLATION DES PORTES DE DOUCHE INSTALACIÓN DE PUERTAS DE DUCHA A. Adjust the level of the inner door (B) using the eccentric mechanism of the rollers. Using the wrench, keep the door roller (F) fixed, fit the bigger Allen key in the center of the inner roller, hold it in place, do not turn it.
-
Page 23: Handle Installation
HANDLE INSTALLATION INSTALLATION DE LA POIGNÉE INSTALACIÓN DE LA MANIJA A-B. Install the handles (I). First, loosely assemble the two square plates. C-D. Loosely insert the handle on the protruding peg, ensuring that the handle fits snuggly into place. If not, slightly move the square plates up or down accordingly. - Page 24 HANDLE INSTALLATION INSTALLATION DE LA POIGNÉE INSTALACIÓN DE LA MANIJA A-D. Install the handle onto the peg, align the square plates with the handle, and tightly secure the handle with the provided hex screw. E-G. Using silicone, install the decorative track (P) in front of the door panel, position it right in front of the sliding door guide (M). A-D.
-
Page 25: Doors Seal Tracks Installation
DOORS SEAL TRACKS INSTALLATION INSTALLATION DES PISTES D’ÉTANCHÉITÉ DES PORTES INSTALACIÓN DE LAS PISTAS DEL SELLO DE LAS PUERTAS A. Insert the 2 doors seal tracks (O) onto the decorative track (P). B. Level the 2 tracks (O) and mark their profile on the wall. C. -
Page 26: Sealing
SEALING SCELLAGE SELLADO Ensure that the door closes tightly and opens smoothly. Ensure that there is a firm connection between the fixed panel(s) and the support bar. Apply a clear silicone water sealant around the outside perimeter of any fixed shower components. Allow 24 hours for silicone to dry. Improper application of silicone sealant may cause your shower to leak. -
Page 27: Care And Maintenance
CARE AND MAINTENANCE TRAITEMENT ET ENTRETIEN CUIDADO Y MANTENIMIENTO For the daily maintenance, use a wet cloth and a soft liquid cleaner. Never use abrasive cleaners containing some acetone, chlorine or strong bleach, scrapers, metallic brushes, nor other objects or the products which can graze or tarnish surfaces. -
Page 28: Limited Product Warranty
Modification de produit : OVE se réserve le droit de changer, de modifier ou d’améliorer les produits sans être tenue d’incorporer ces modifications aux produits vendus ou installés précédemment. Autorité et modification : Le vendeur au détail n’est pas le représentant d’OVE et n’est pas autorisé à modifier ou à changer les modalités de la garantie limitée. De plus, le détaillant ne peut lier OVE ni faire de représentation ou de promesses à...
