1. Automatic means that when the controller stops, the vent valve is opened
NOTE
with a delay defined by window n. 126; when the controller starts, the vent valve
is immediately closed.
2. On command means that the vent valve is opened or closed by means of
window n. 122.
3. These commands remove the pump motor supply for a short time. If they are
used continuously, they can cause the pump stopping.
Figure 17
TwisTorr 304 FS on board Controller User Manual / 87-901-028-01 (C)
RS 232/RS 485 communication description
7
6
5
TOO HIGH LOAD
SHORT CIRCUIT
OVERVOLTAGE
AUX FAIL

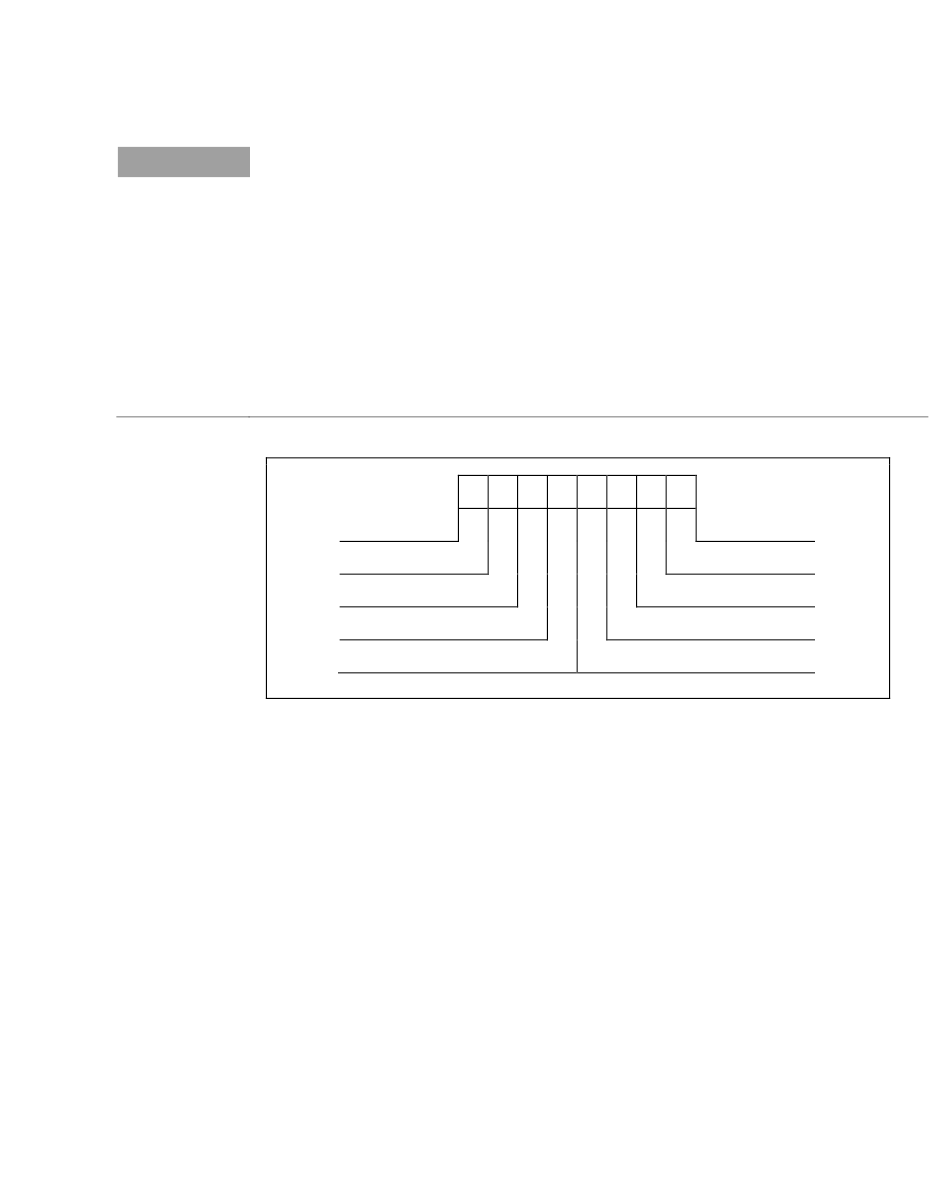

Window N. 206 Bit Description
Technical Information
4
3
2
1
0
NO CONNECTION
PUMP OVERTEMP.
CONTROLL. OVERTEMP.
POWER FAIL
17
169/178
