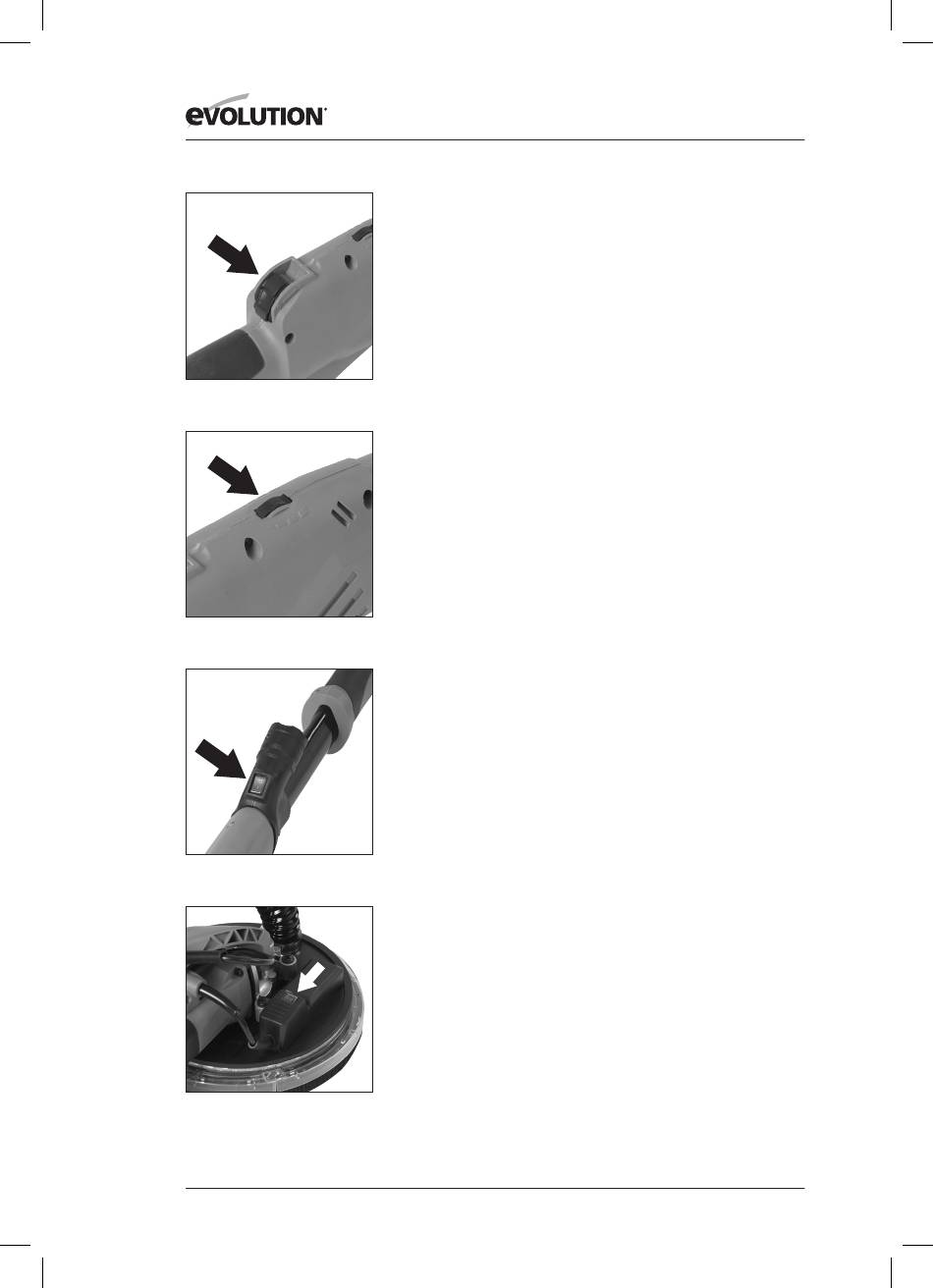

Fig. 9
Fig. 10
Fig. 11 a
Fig. 11 b
THE MACHINES CONTROLS
• The 'ON/OFF' slide switch (Fig. 9) is a latching type. Slide it
forward to start the motor. Push forward and down on the
central section of the switch to latch it in the 'ON' position
• Push down on the rear central section of the slide switch to
release the switch and turn the motor 'OFF' . The switch will
automatically return to the 'OFF' position
• The speed control dial (Fig. 10) is located forward of the 'ON/OFF'
switch. Rotate this control dial to alter the speed of the motor.
• The Sanding Head LED Light switch is positioned on top of a
housing located to the RH (Right Hand) side of the Sanding
Head casing. (Fig. 11a) This light will provide illumination to
the immediate area being worked upon.
• The LED Projector Light (Fig. 11b). The 'ON/OFF' Rocker
switch is located on the body of the light, underneath and to
the rear. This Light will provide extra illumination to the area
about to be worked upon.
• A ring located just to the front edge of the integral protection
stand can be rotated slightly.
• Rotating this ring will reveal an air bleed port. (Fig. 12)
• Revealing this air bleed port in part or in full, allows the
operator to adjust the airflow from the Sanding Head to a
connected dust extraction machine.
• The operator should adjust this control to give the most
effective dust extraction from the Sanding Head.
WARNING: Even with an effective dust extraction/collecting
machine attached to this machine the operator should still
employ all relevant PPE procedures and processes. If working
'on site' consult the person responsible for Health & Safety on
the site for extra guidance.
OPERATIONAL GUIDANCE AND ADVICE
Body and Hand Positioning
• This machine is a two (2) handed machine. Soft grip hand
hold areas are provided along the machine.
• An auxiliary 'D' handle is provided and is particularly useful
when the machine is configured in Long Reach Mode.
• Position your hands along the machine to provide the best
and most comfortable combination of 'reach' and 'leverage'
for the particular operation being undertaken.
• Keep your hands away from the swivelling Sanding Head.
• Do not stretch or overbalance. Reposition yourself so that
you do not have to stretch.
