Note: The design of the 'D' handle is such that ergonomic
positioning of the handle on the clamp is possible. This
ensures comfortable operation for both right-handed and
left-handed users.
• Insert the Flexible Extraction Hose fully into the end of the
Extension Tube and tighten the sleeve nut to secure it in
place. (Fig. 7)
• The 'free' end of the Dust extraction Hose can now be connected
to a suitable dust extraction and collection machine.
Note: Follow the instructions provided by the manufacturer of
the dust extraction machine being used.
Note: A selection of Hose End Connectors is provided. These
should ensure that this machine can be connected to most
commercially available dust extraction machines.
To Change a Hose End Connector
• Locate the two (2) 'lugs' which fit into the two (2) 'notches' in
the Hose End Mounting Ring.
• Using a flat bladed screwdriver, gently and carefully press
the 'lugs inwards, and at the same time ease the Mounting
Ring away from the Hose End Connector. The Hose End
Connector will release from the Mounting Ring.
• Snap a new Hose End Connector onto the Mounting Ring.
• Check that the 'lugs' have deployed into the 'notches' .
ATTACHING AN ABRASIVE DISC TO THE SANDING PAD
Note: The Motor Driven Sanding Pad located in the swivelling
Sanding Head of the machine, is fitted with a 'hook and loop'
attachment system.
The 'loops' on the back of the abrasive discs engage with the
'hooks' on the surface of the Sanding Pad.
To attach an abrasive disc:
• Ensure that the Sanding Pad is clean and free from any dirt
or debris.
• Press the new abrasive disc onto the Sanding Pad with the
palm of a hand.
• Ensure that the holes in the new abrasive disc align with the
dust extraction ports in the Sanding Pad. (Fig. 8)
To remove an abrasive disc:
• Simply grip the edge of the abrasive disc and gently peel it
from the Sanding Pad.

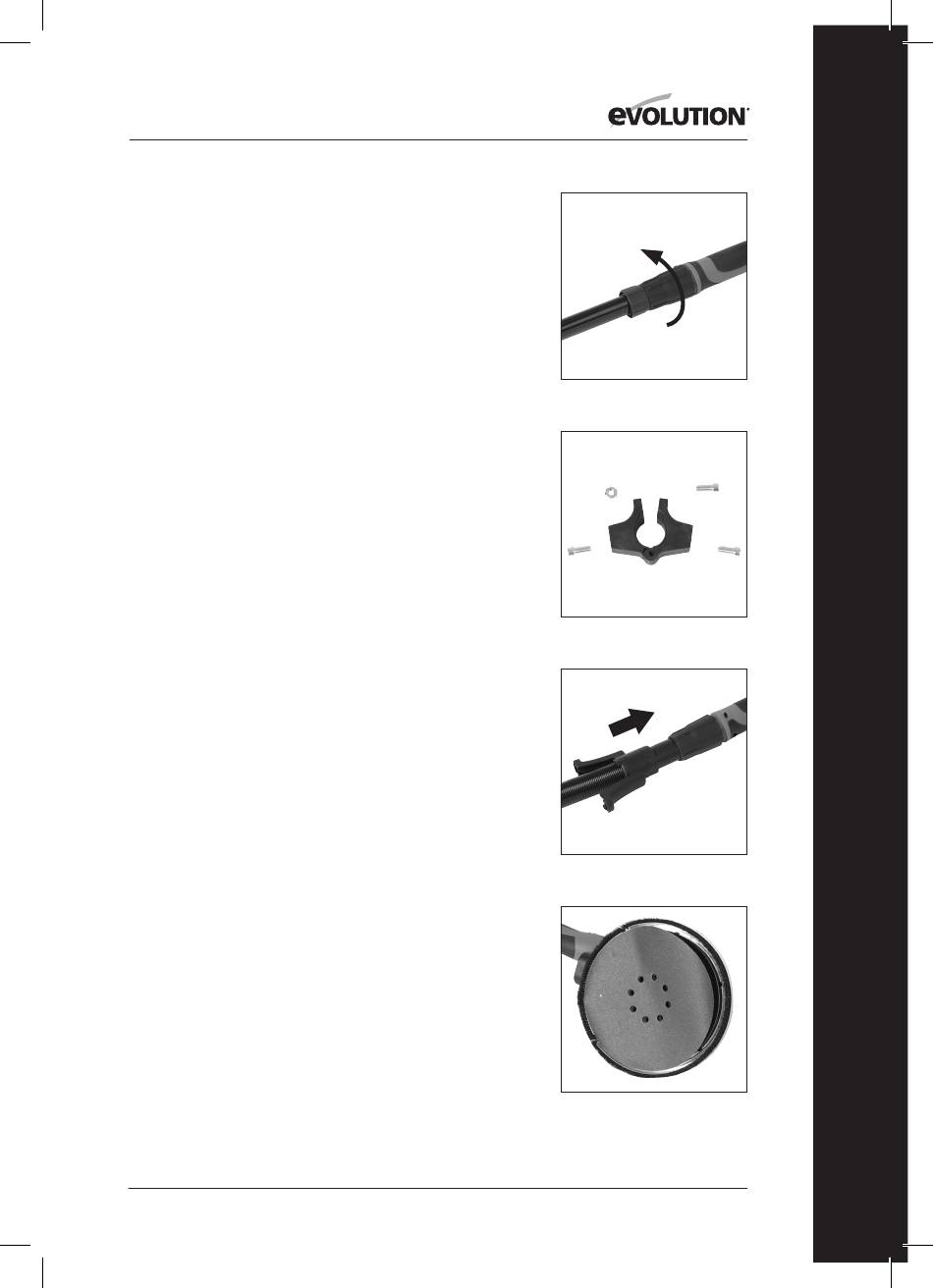

Fig. 5
Fig. 6
Fig. 7
Fig. 8
