STEP #4

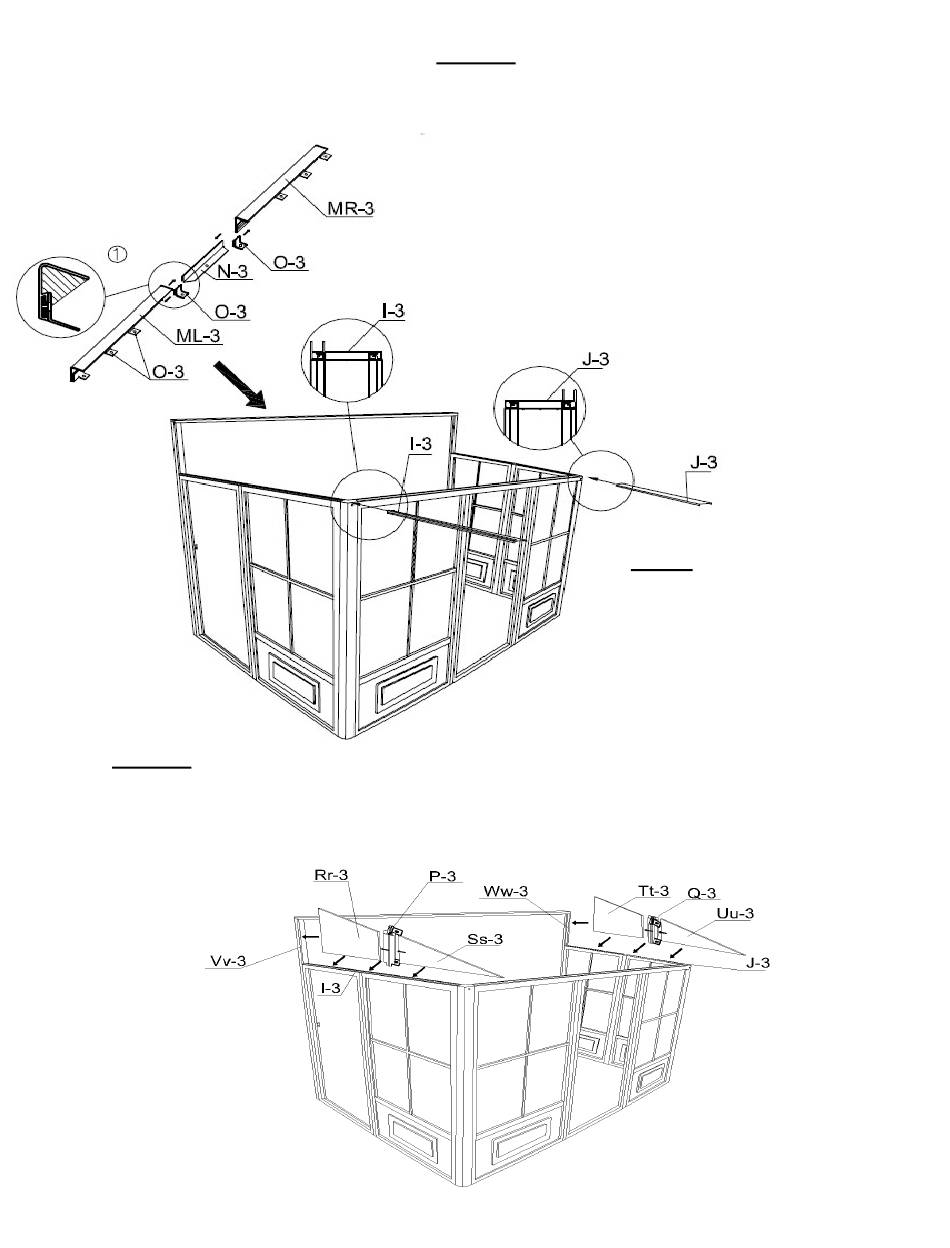

Set polycarbonate exposed side on the outside over horizontal left guide I-3, use one (1) Rr-3
panel, one (1) P-3 joint and one (1) Ss-3 panel, then do the right side with one (1) Tt-3 panel, one
(1) Q-3 joint and one (1) Uu-3 panel over the J-3 horizontal guide. Secure P-3 and Q-3 to I-3 and J-
3 respectively with self-tapping screws (PQ-3).
STEP #3
Slide brackets O-3 into ML-3 and MR-3 in equal quantity.
Then join ML-3 and MR-3 using N-3. Once assembled lift the
assembled wall track and position it above the vertical wall guides
Vv-3 and Ww-3 (approximate 96" from the ground).
Secure the wall track (ML-3, MR-3) and vertical wall guides (Vv-3
and Ww-3) to the wall by drilling holes through the aluminum, at
intervals of about 16" and using screws Xx-3 or by using
appropriate screws according to your type of wall. Insert the 2
horizontal guides, I3 & J3 at the top of the frame. Make sure the
frames are at the same level, if not, use shims to compensate.
Do not use tools to force.
ASSEMBLE THE PIECES BEFORE SCREWING
THEM TO THE WALL.
NOTE:
Once the wall track is in place,
apply silicon along the top of the
wall track and at the joint of the
two tracks.
Silicone is not supplied.
