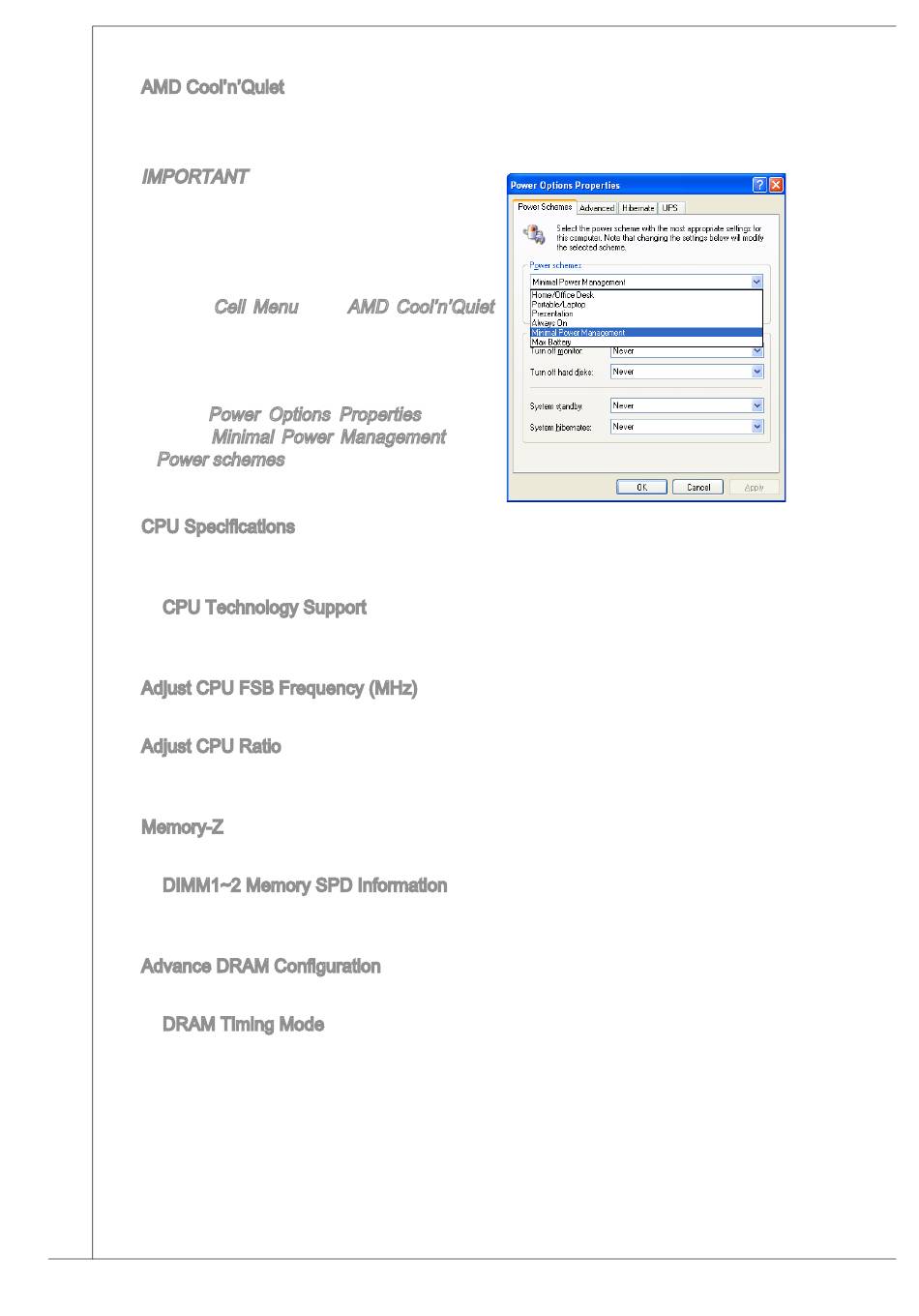

aMd Cool'n'quiet
the Cool'n'quiet technology can effectively and dynamically lower CPu speed
and power consumption.
iMPoRtant
to ensure that Cool'n'quiet function is acti-
vated and will be working properly, it is re-
quired to double confirm that:
Run BioS Setup, and select Cell Menu.
*
under Cell Menu, find aMd Cool'n'quiet,
and set this item to "enabled".
enter Windows, and select [Start]->[Set-
*
tings]->[Control Panel]->[Power options].
enter Power options Properties tag, and
select Minimal Power Management under
Power schemes.
CPu Specifications
Press <enter> to enter the sub-menu. this submenu shows the information of
installed CPu.
CPu technology Support
Press <enter> to enter the sub-menu. this sub-menu shows the technologies
that the installed CPu supported.
adjust CPu FSB Frequency (MHz)
this item allows you to adjust the CPu FSB frequency.
adjust CPu Ratio
this item is used to adjust CPu clock multiplier (ratio). it is available only when the
processor supports this function.
Memory-Z
Press <enter> to enter the sub-menu.
diMM~2 Memory SPd information
Press <enter> to enter the sub-menu. this sub-menu displays the information
of installed memory.
advance dRaM Configuration
Press <enter> to enter the sub-menu.
dRaM timing Mode
Selects whether dRaM timing is controlled by the SPd (Serial Presence de-
tect) eePRoM on the dRaM module. Setting to [auto] enables dRaM timings
and the following related items to be determined by BioS based on the con-
figurations on the SPd. Selecting [Manual] allows users to configure the dRaM
timings and the following related items manually.
