3
Proper compensation of the probe is
required to assure amplitude accuracy of
the waveform being measured by matching
the probe to the oscilloscope's input
capacitance. Compensation should be
adjusted whenever the probe is connected
to, or transferred between, oscilloscopes.
The procedure is the same as for a x10
passive probe.
187
Frequency Compensation
Connect the probe to the oscilloscope.
Apply a 1 kHz square wave to the
probe tip and adjust the oscilloscope
controls to display a few cycles of the
waveform.
Turn Trimmer (Figure 2) using
included Trimmer Tool (Figure 1) to
adjust the compensation on the probe
making a flat topped square wave.

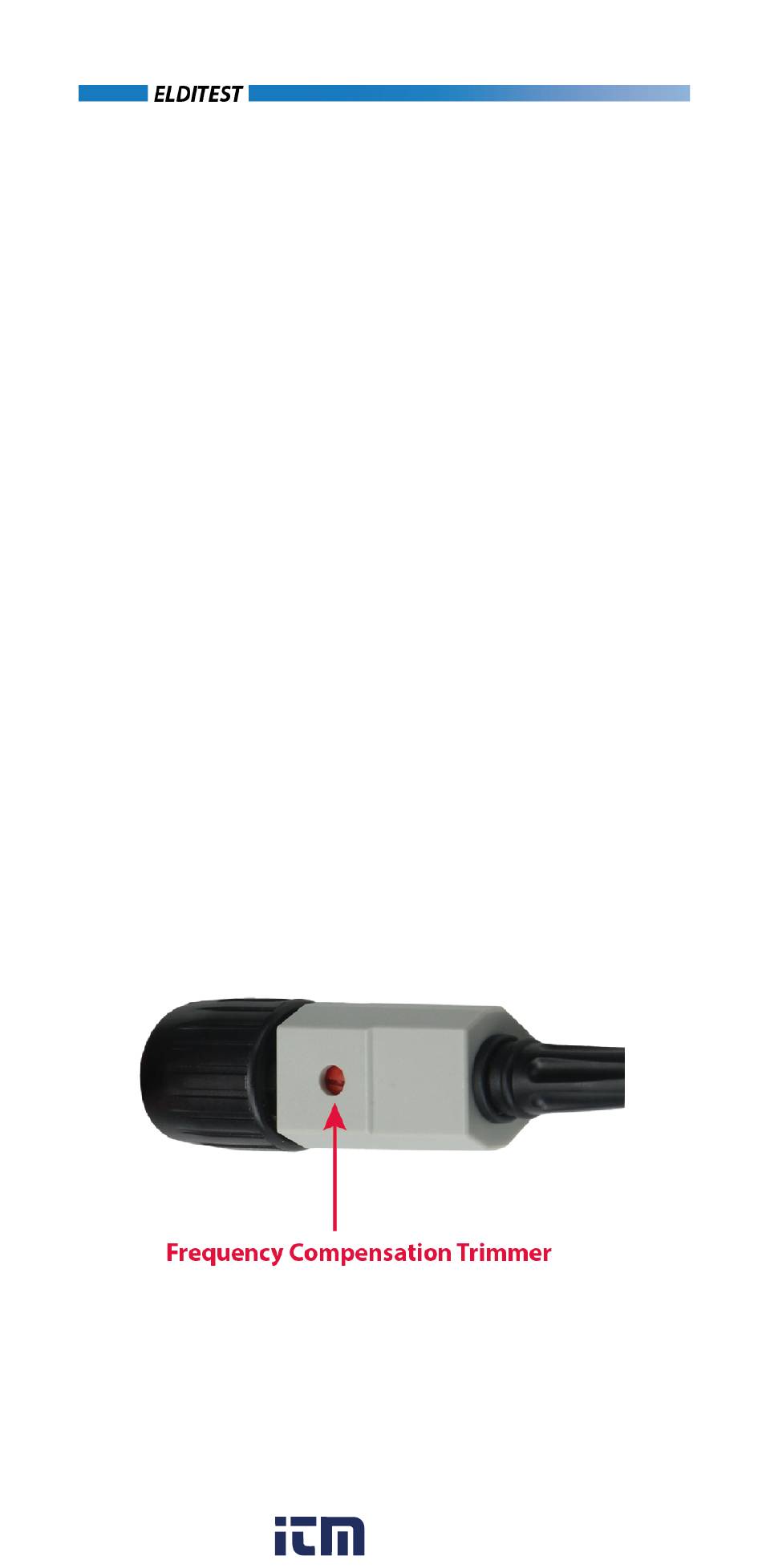

Figure 2: Frequency Compensation Trimmer
www.
.com
9
