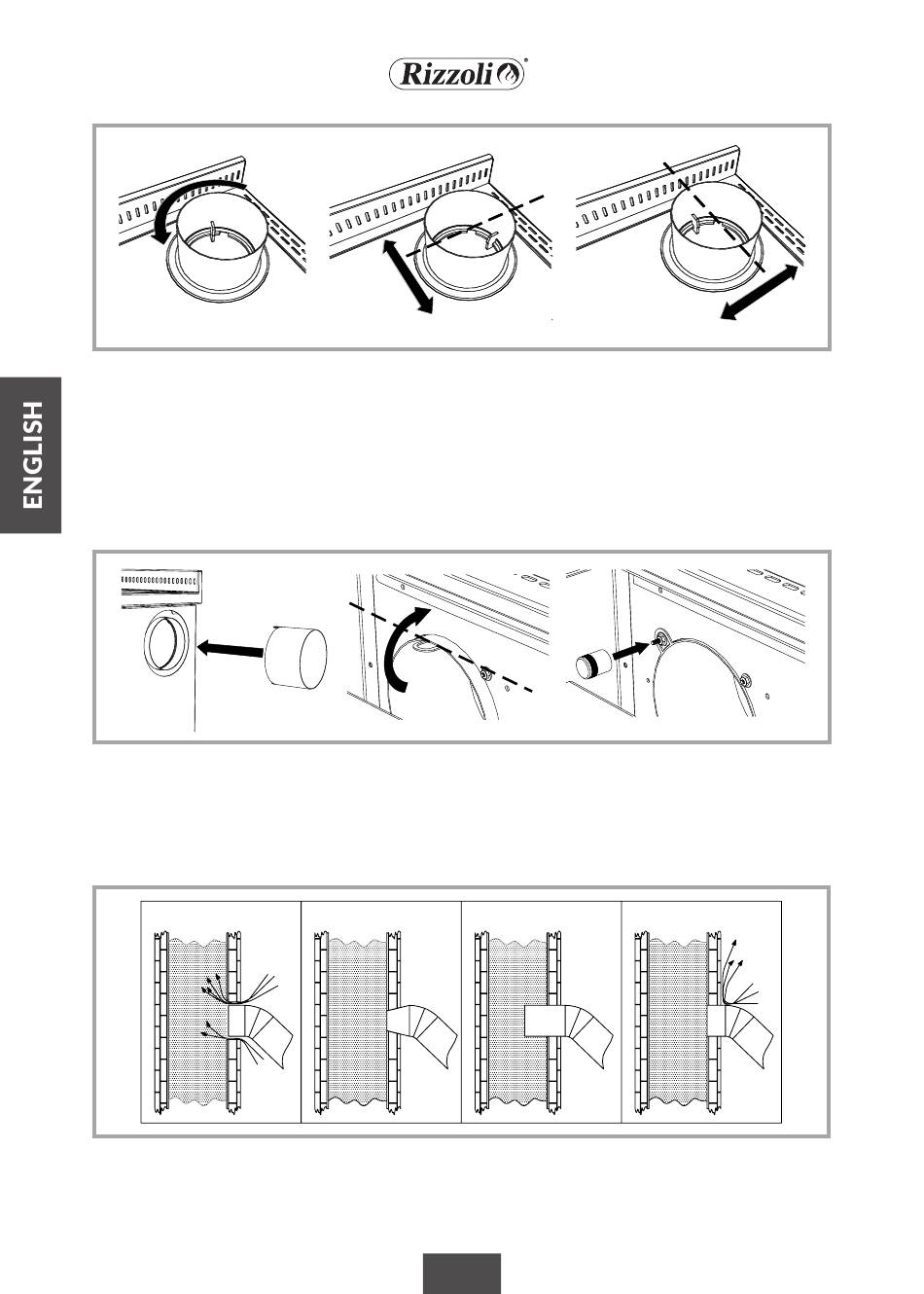

Picture 9 - Tolerance for flue outlet on the top and back. The tolerance depends on the orientation of the
connector.
If you have a lateral chimney in correspondence
of a side, the connector is sliding. To install it cor-
rectly, it is necessary to remove the cooking plate.
Now, the connector must be completely inserted
inside the wood fired cooker or the chimney, keep-
ing the fixing buttonhole on the same side of the
Picture 10 - Flue outlet on the side. Fixed connector for the flue outlet on the side.
The connection with the chimney must be always
well fixed and sealed, it must not have narrowing
and must not decrease the usable section of the
chimney (see picture 11). If near the cooker there
NO
Picture 11 - Examples of correct and incorrect connection of the chimney.
Y Y
+/- +/-
10 mm 10 mm
cooker. Then, you can place the wood fired cooker,
extract correctly the connector so that it connect
the cooker with the chimney. Finally, bend the but-
tonhole and block the parts with the screw­lock
see picture 10).
is inflammable material or high temperatures sen-
sible, the connection must be isolated and the
safety distances must be strictly observed.
NO NO
74
X X
+/- +/-
10 mm 10 mm
YES
