Operating Instructions
MaxLite RS Series
®
Setting Wattage & Color Temperature
Note: Applicable to models ending in WCS only. Models are set to lowest wattage and 4000K.
Color settings:
Left, stands for 3500K;
Middle, stands for 4000K;
Right, stands for 5000K;
Wattage settings:
Left, stands for Low;
Middle, stands for Medium;
Right, stands for High;

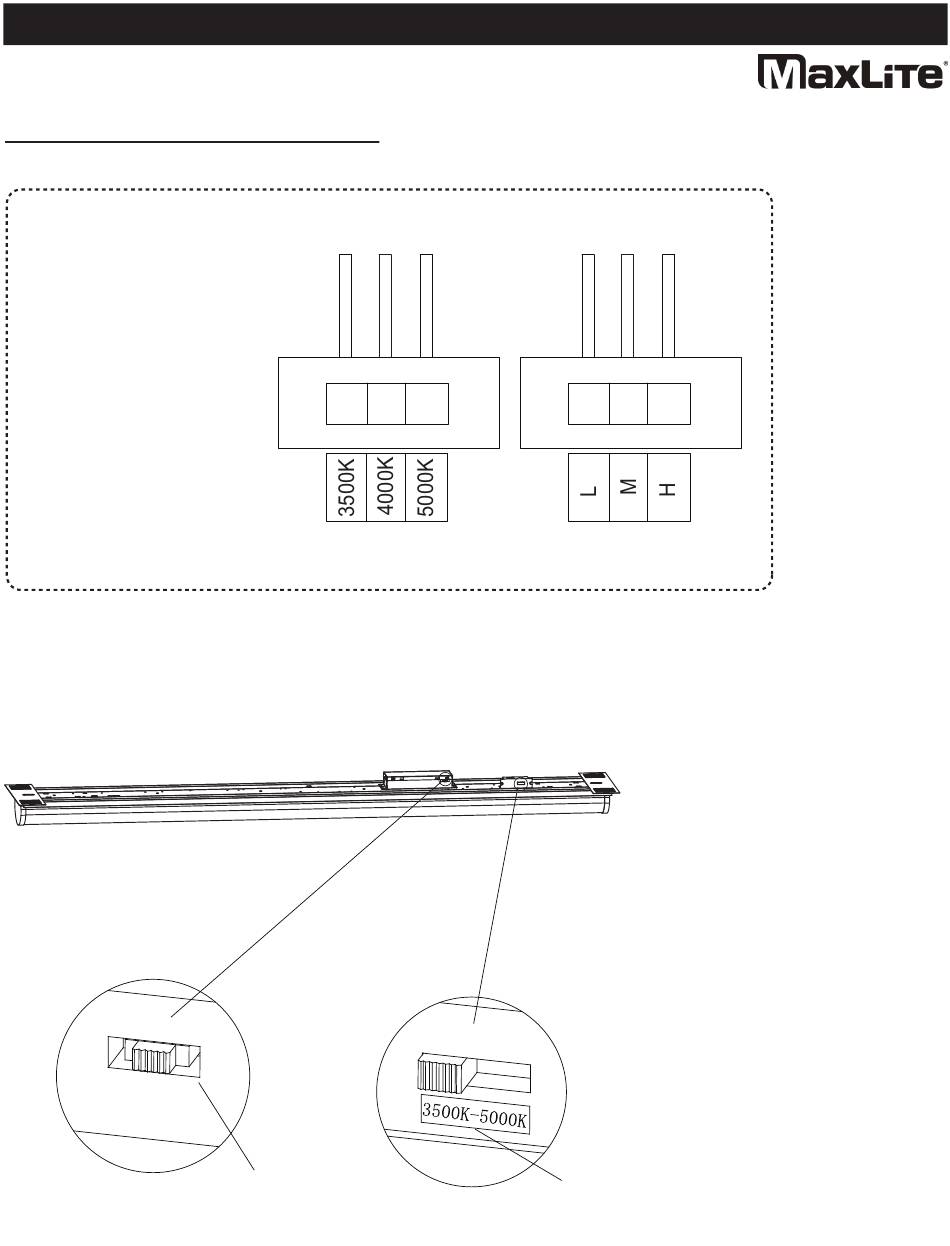

Adjust the color temperature and lumen output using the two DIP switches. Each DIP switch has 3 options (left,
middle and right), corresponding to 3 color temperatures and wattages. Use these switches to set desired color
temperature and lumen output combination.
1. DIP switches are located on the side of fixture.
Factory Settings: 4000K, lowest wattage based on fixture.
2. Select a wattage and color temperature by sliding switch left or right respectively to the desired value.
