H-9940

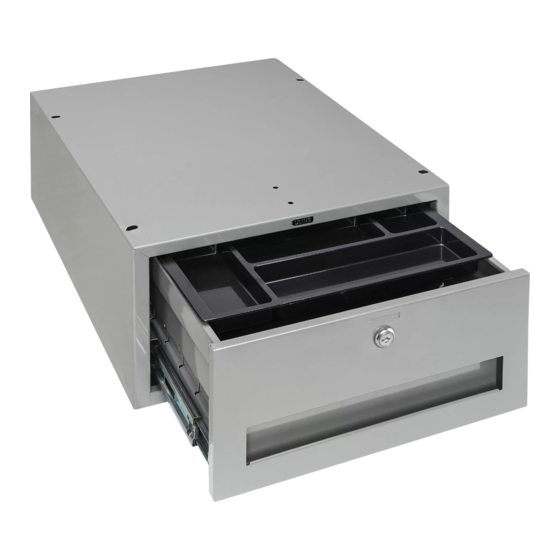

PACKING TABLE
DRAWER – HEAVY DUTY
TOOLS NEEDED
Drill
5/32" Drill Bit
DRAWER FRAME ASSEMBLY
NOTE: Installation is shown with table upside
down for ease of assembly.
1. Attach drawer brackets together using the spacing
bars, four Phillips head bolts and four flange nuts.
(See Figure 1)
NOTE: Spacing bars ensure bracket holes align
with drawer housing holes when attached to
tabletop.
NOTE: Brackets lower drawer housing to allow
drawer to clear workbench frame when open.
Figure 1
Phillips Head Bolt
Spacing Bar
Flange Nut
IMPORTANT! If installing on phenolic tabletop,
skip to Phenolic Top Installation on Page 2.
PAGE 1 OF 6
1-800-295-5510
uline.com
7/16" Wrench
Phillips Head Bolt x 4
INSTALLATION
Drawer Bracket
Phillips Screwdriver
PARTS
Wood Screw x 4
LAMINATE / WOOD TOP INSTALLATION
1. Position drawer frame assembly in the desired
mounting location.
NOTE: Attach frame assembly as close
to front frame bar as possible.
2. Using drawer brackets as a template, mark the
location of the four holes in brackets on the
underside of the bench top. (See Figure 2)
3. Drill holes into bench top at previously marked
locations about 1/2–3/4" deep with 5/32" drill bit.
Figure 2
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Flange Nut x 4
Front Frame Bar
Inner
Side
0323 IH-9940
