6 Technical data

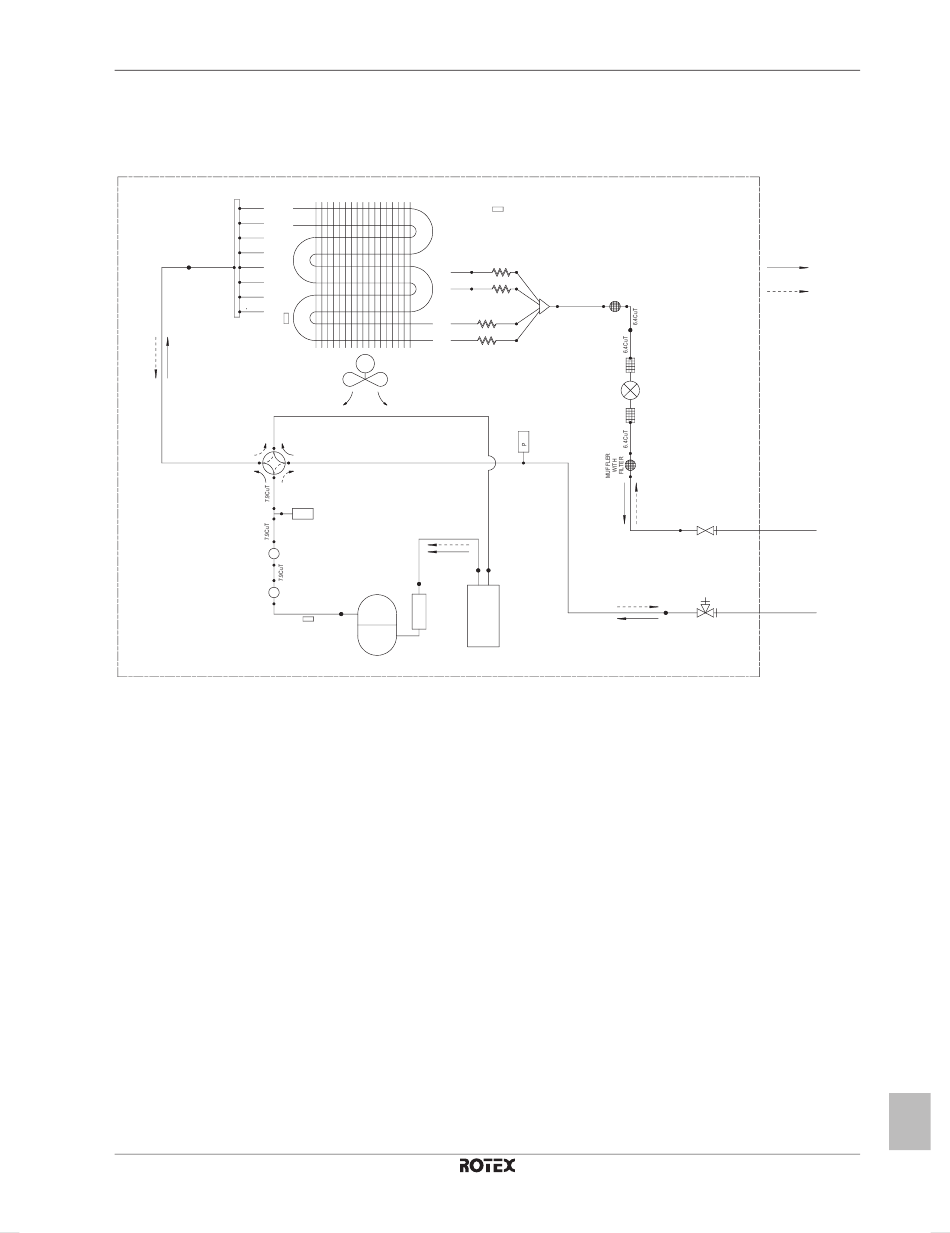

6.1 Piping diagram: Outdoor unit
OUTDOOR UNIT
7.9CuT
7.9CuT
7.9CuT
7.9CuT
12.7CuT 7.9CuT
7.9CuT
7.9CuT
7.9CuT
HEAT
EXCHANGER
THERMISTOR
12.7CuT
MUFFLER
MUFFLER
DISCHARGE PIPE
THERMISTOR
6.2 Wiring diagram: Outdoor unit
See the internal wiring diagram supplied with the unit (on the inside of the top plate). The abbreviations used are listed below.
C110~C112 Capacitor
DB1, DB2, DB401 Rectifier bridge
DC_N1, DC_N2 Connector
DC_P1, DC_P2 Connector
DCP1, DCP2, Connector
DCM1, DCM2 Connector
DP1, DP2 Connector
E1, E2 Connector
E1H Drain pan heater
FU1~FU5 Fuse
HL1, HL2, HL402 Connector
HN1, HN2, HN402 Connector
IPM1 Intelligent power module
L Live
LED 1~LED 4 Indication lamps
LED A, LED B Pilot lamp
M1C Compressor motor
M1F Fan motor
RRLQ004~008CAV3
ROTEX HPSU low temperature Bi‑bloc
4PW74444-1D – 2018.07
