NEC Multeos M40 Mode D'emploi page 15

1) AC IN
Connects with the supplied power cord.
2) RGB/HV OUT [R, G, B, H, V] (BNC)
Outputs the signal from the RGB/HV IN connector to an
input on a separate device.
3) HDMI
To input digital HDMI signals.
4) DVD/HD IN
Connecting equipment such as a DVD player, HDTV
device, or Set-Top-Box.
5) S-VIDEO IN
Input S-video.
6) VIDEO OUT
Output the composite video signal from the VIDEO IN
connection.
7) AUDIO IN
Input the audio signal from external equipment such as a
computer, VCR or DVD player.
8) AUDIO OUT
Output the audio signal from the AUDIO IN 1, 2, 3,
HDMI, and TV jack to an external device (stereo receiver,
amplifier, etc,).
9) SPEAKER TERMINALS
Output the audio signal from AUDIO 1, 2, 3, HDMI, and
TV to external speakers jack.
NOTE: Speaker Terminal for 15W + 15W (8 ohm).
All manuals and user guides at all-guides.com

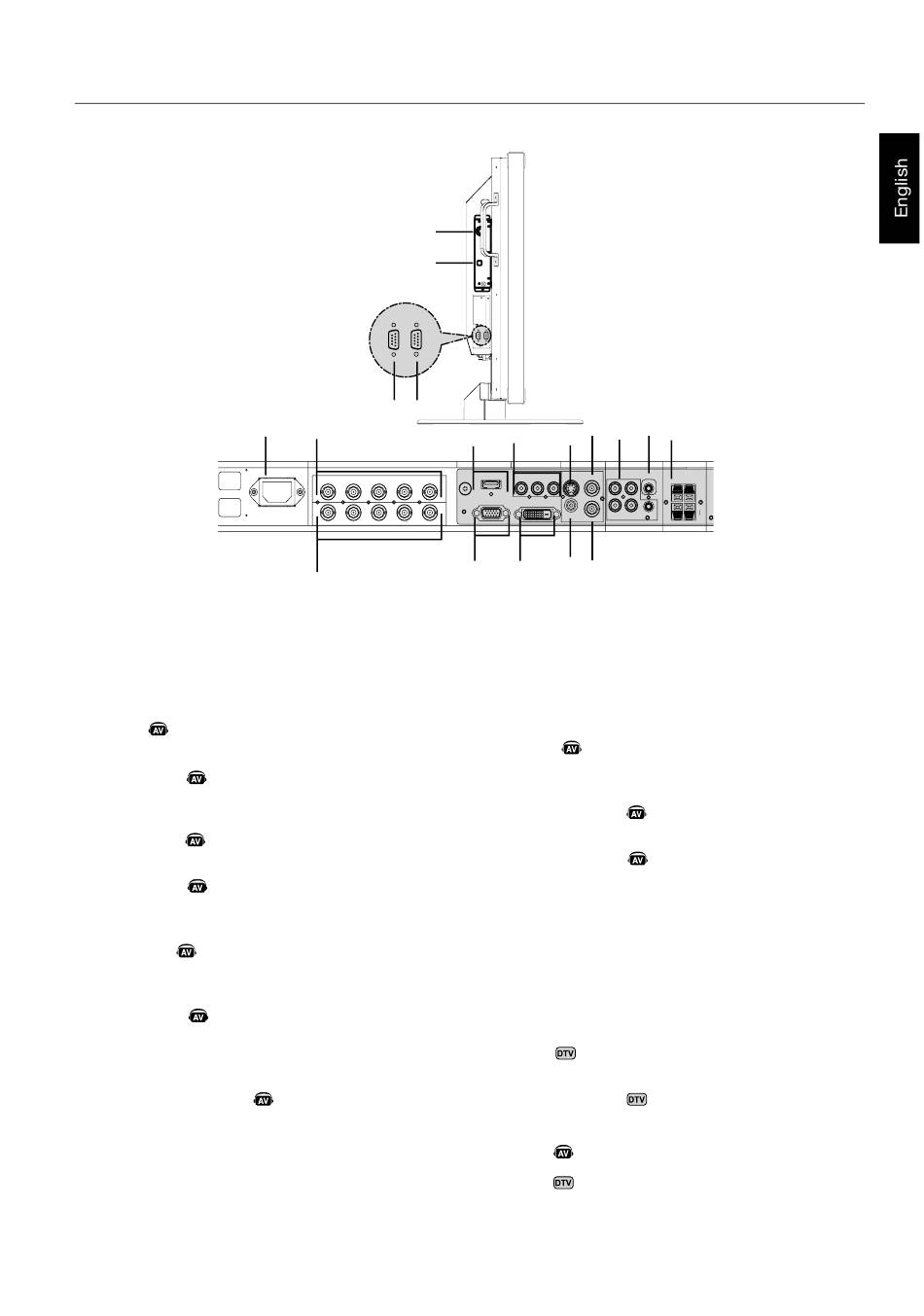

Part Names and Functions
17
18
IN OUT
15 16
1
2
AC IN RGB/HV OUT
R G B H V
R G B H V
RGB/HV IN
10
6
4
3 5
DVD/HD IN
VIDEO
HDMI
Y OUT
Cb/Pb Cr/Pr S-VIDEO IN
R
VGA(D-SUB)
L
DVI(DVI-D)
AUDIO3 IN
IN
IN
PC IN
13
14
11 12
10) RGB/HV IN [R, G, B, H, V] (BNC)
Input RGB/HV signals or signals from other RGB
equipment. A Sync-on-Green signal can be connected to
the G connector.
11) VGA (mini D-SUB15)
Analog computer input.
12) DVI-D
Input digital RGB signals from a computer or HDTV
device having a digital RGB output.
13) VIDEO IN (RCA)
Composite video input.
14) VIDEO IN (BNC)
Composite video input.
15) EXTERNAL CONTROL (D-Sub 9 pin)
Connect RS-232C input to external equipment such as a
PC in order to control RS-232C functions.
16) EXTERNAL CONTROL (D-Sub 9 pin)
Connect RS-232C output.
To connect to multiple Multeos monitors
via daisy RS-232C Chain.
17) RF IN
TV signal input.
18) S/PDIF OUTPUT
Optical digital audio out.
Denotes AV unit function. All AV functions are enabled with the AV
unit is installed. Not all models have the AV unit installed.
Denotes Digital Tuner function. All DTV and AV functions are en-
abled when the DTV unit is installed. Not all models will have the
digital tuner installed.
English-11
- continued
Terminal Panel
8
7
9
AUDIO SPEAKER
AUDIO OUT
R L
R
-
L
-
AUDIO2 IN AUDIO1 IN
