V2 DEV-R2 Serie Mode D'emploi page 7

Description
The DEV-R2 module allows to control a load of up to 500W in
monostable, bistable and timer mode.
The container's reduced dimensions permit easy insertion of the
module into the electric junction boxes.
• Power supply with extended range: 85 ÷ 260 Vac - 50/60 Hz
• Very low power consumption in stand-by
• Radio receiver with integrated antenna
• Compatible with PERSONAL PASS series transmitters
• Able to store up to 30 transmitters
• Two wired inputs: up and down
• Relay output with no-voltage contacts for loads of up to 500W
• Integrated button for programming operations
• Wireless programming via a remote control provided with
memory
Specifications
Power supply____________________ 85 ÷ 260 Vac - 50/60 Hz
Frequency: ______________________ 433,92 MHz (DEV-R2 433)
Consumption in stand-by _________ 0,25 W
Maximum relay load: ____________ 5A (cosj = 1)
Operating temperature ___________ -20 ÷ +60 °C
IMPORTANT REMARKS
• Attention: for people safety it is important to follow carefully
the instructions. Keep the instructions.
• Important safety instructions for the installation.
Attention: a wrong installation can cause serious accidents.
Follow carefully the installation instructions .
• This device can be installed only from qualified persons.
• The control buttons and the connection cables shall have
insulation properties suitable for electrical installations with
operating voltage of not less than 300Vac
• In order to protect the device, the installer must provide for a
magnetotermical differential switch (separation among the
contacts: at least 3 mm), ensuring the omnipolar sectioning
from the power supply.
• The device must be installed only inside a junction box
or wall box.
• The device container does not provide any protection against
water. Thus, it should be installed only in protected
environments.
DECLARATION OF CONFORMITY
V2 S.p.A. hereby declare that DEV-R2 products conform to the
essential requirements established in the following directives:
- 2004/108/CEE (EMC Directive in accordance with standards
EN 61000-6-2, EN 61000-6-3 + EN 50336)
- 2006/95/CEE (Low Voltage Directive in accordance with
standards EN 60335-1 + EN 60335-2-97)
- 99/05/CEE (Radio Directive in accordance with standard
EN 301 489-3)
Racconigi, lì 14/01/2014
V2 S.p.A. legal representative.
Cosimo De Falco
All manuals and user guides at all-guides.com
868,30 MHz (DEV-R2 868)
2A (cosj = 0,4)

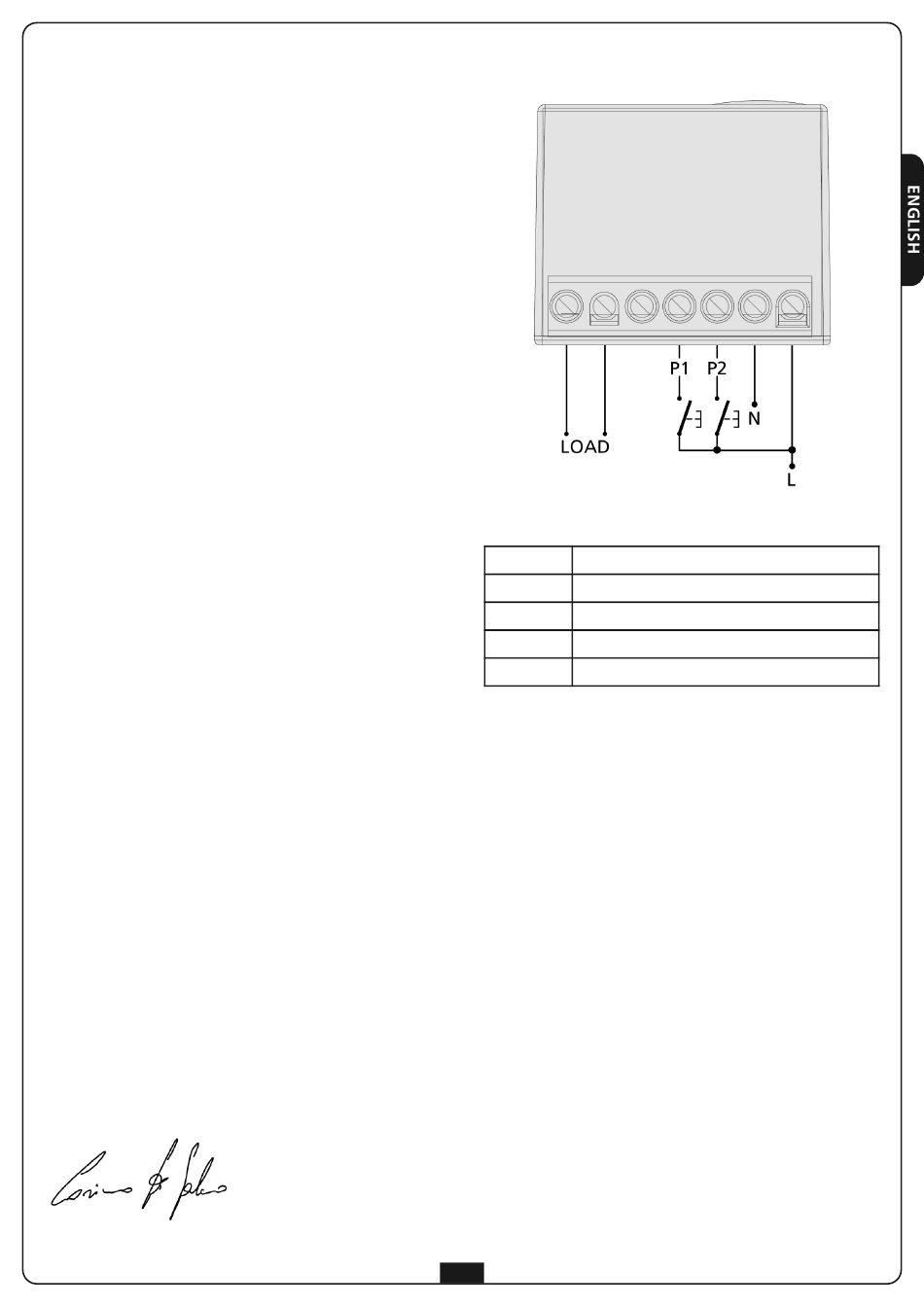

WIRING
LOAD Relay output
P1 Entry of button P1
P2 Entry of button P2
N Power supply neutral
L Power supply phase
7
