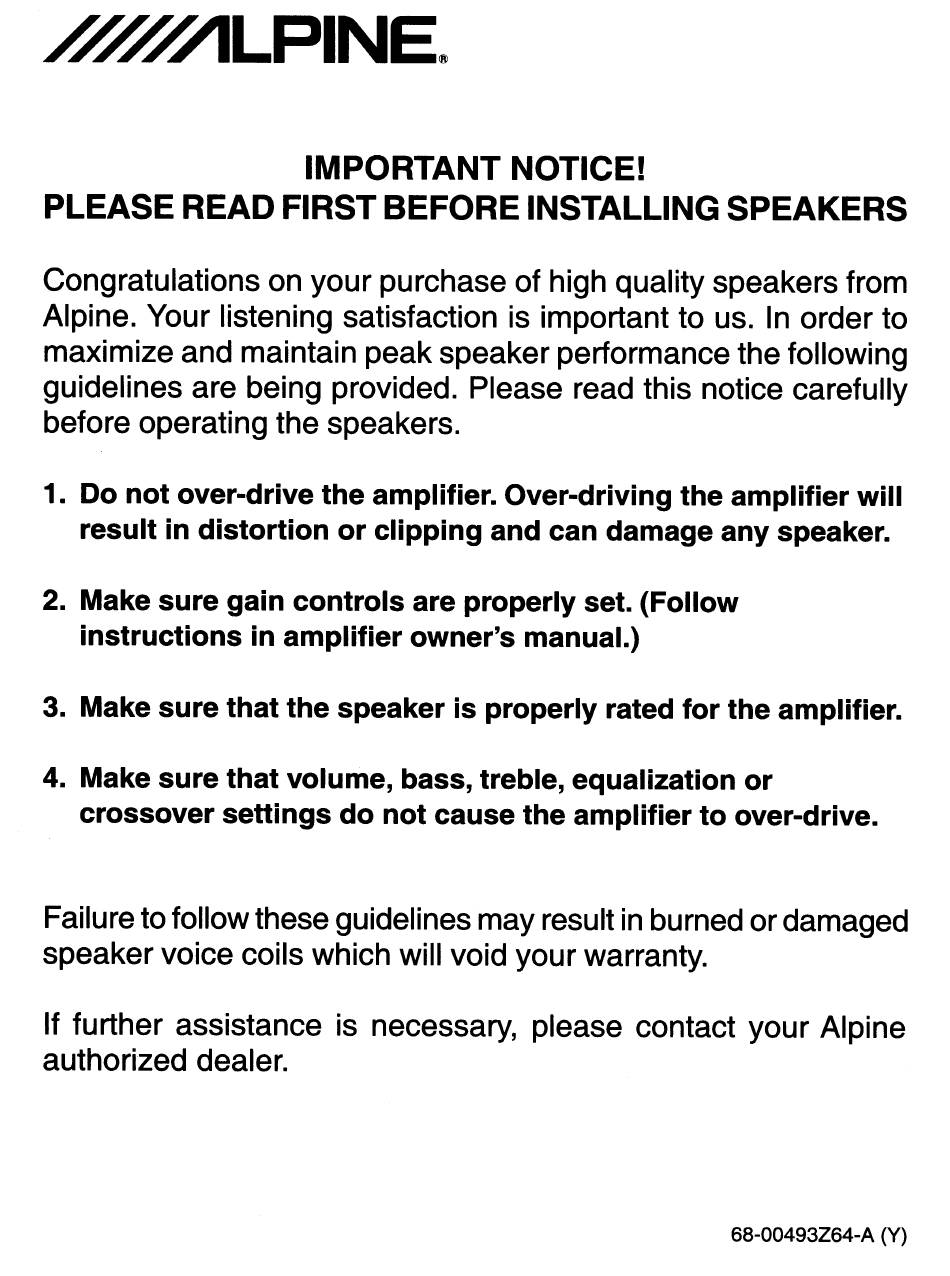

IMPORTANT NOTICEI
PLEASE READ FIRST BEFORE INSTALLING SPEAKERS
Congratulations on your purchase of high quality speakers from
Alpine. Your listening satisfaction is important to us. In order to
maximize and maintain peak speaker performance the following
guidelines are being provided. Please read this notice carefully
before operating the speakers.
1. Do not over-drive the amplifier. Over-driving the amplifier will
result in distortion or clipping and can damage any speaker.
2. Make sure gain controls are properly set. (Follow
instructions in amplifier owner's manual.)
3. Make sure that the speaker is properly rated for the amplifier.
4. Make sure that volume, bass, treble, equalization or
crossover settings do not cause the amplifier to over-drive.
Failure to follow these guidelines may result in burned or damaged
speaker voice coils which will void your warranty.
If further assistance is necessary, please contact your Alpine
authorized dealer.
68-00493Z64-A (Y)

Publicité

loading

Sommaire des Matières pour Alpine SWR-M100

  • Page 5 SINGLE 4 TYPE-R APPLICATION DIAGRAMS SWR-M100 SCHÉMAS D'APPLICATION - TYPE-R, SINGLE BOBINE, 4 Example 1 One Amplifier and One Subwoofer Exemple 1 1 amplificateur et 1 h.-p. d'extr ê mes graves Example 2 Two Amplifiers and Two Subwoofers Exemple 2 2 amplificateurs et 2 h.-p.
  • Page 6 4.4mm[3/16"] 242 [9-17/32"] 272 [10-23/32"] 31.55 [1-1/4"] 144.27 [5-11/16"] SWR-M100 Printed in Taiwan...
