CEBEK R-21.24 Guide Rapide

Trigger by mains synchronism, it admits the 2 mains frequencies 50/60hz and detects them automatically.
It incorporates indicator led and adjustment of minimum output.
Does not support inductive loads such as transformers, LED lamps, etc..
POWER SUPPLY 24 VAC. : Use cables that support a minimum of 10 A. Connect it to the "INPUT AC" terminal.
Install a switch for protection and safety as indicated by the CE standard.
NOTE: Remember that 24VAC current circulates in the circuit
OUTPUT CONNECTION AND MINIMUM ADJUSTMENT : Connect the load to be controlled to the "Output A.C."
terminal Remember that the load must consume a minimum of 5 W. and a maximum of 150 W.
To adjust the minimum load activation, act on the "adjust" potentiometer.
Before activating the switch, make the rest of the circuit connections..
POTENTIOMETER CONNECTION : To regulate the output level, connect a 10K ohm potentiometer to the "EXT.
".
POT
Déclenchement par synchronisme secteur, il admet les 2 fréquences secteur 50/60hz et les détecte
automatiquement. Il intègre un indicateur led et un réglage de la puissance minimale.
Il ne supporte pas les charges inductives telles que les transformateurs, les lampes LED, etc.

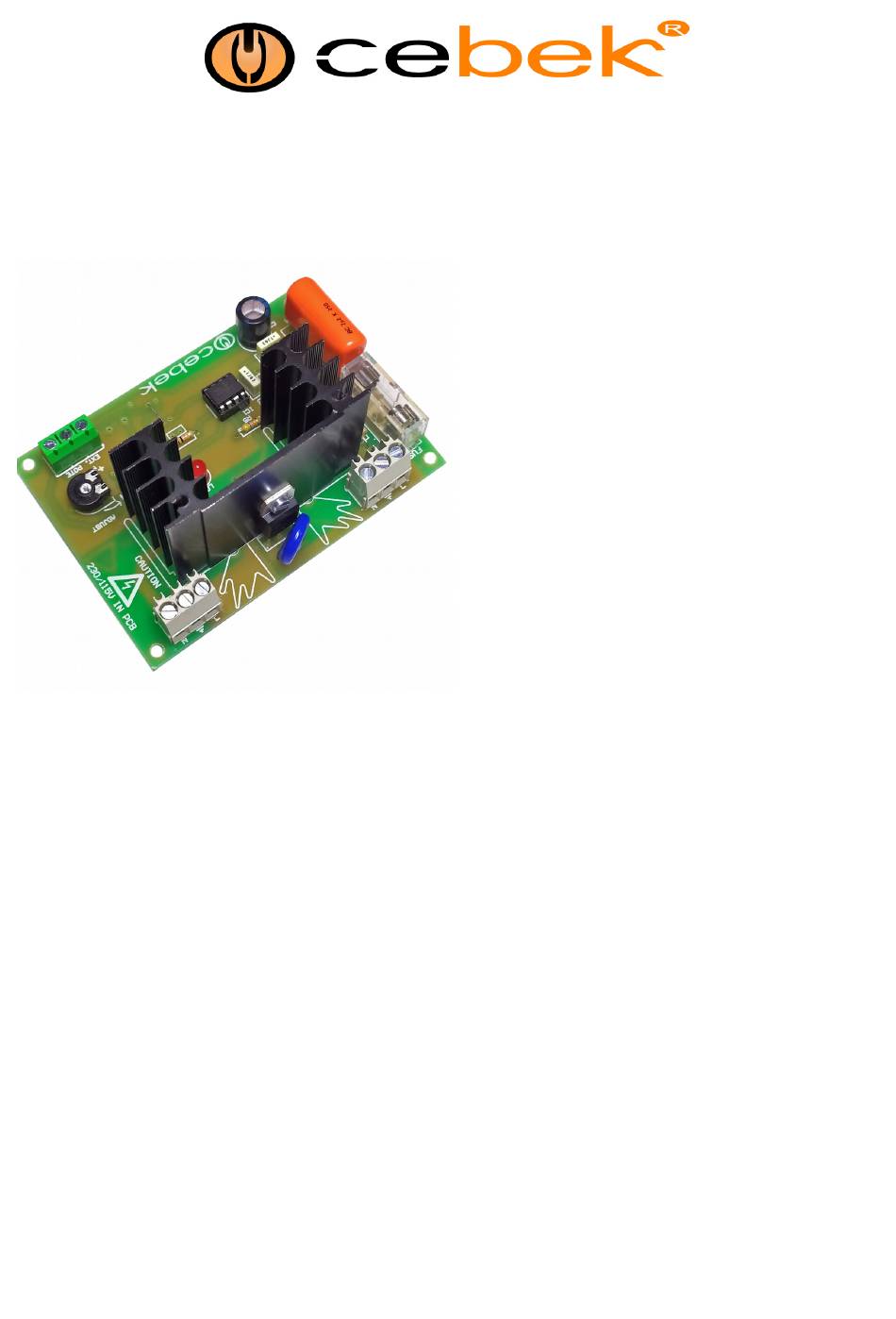

Regulator AC - 150W
Régulateur AC - 150W
Regulador CA - 150W
www.cebek.com - sat@fadisel.com
R-21.24
Technical characteristics
Voltage : 24 V.AC. - 50-60Hz
Consumption : 1 W.
Minimum Load : 5 W.
Maximum Load : 150W.
Regulation : Phase angle
External Potentiometer : 10 K.
Electrical network isolation : NO
Sizes : 98 x 72 x 42 mm.
Weight : 88 gr
Din rail : C-7567
