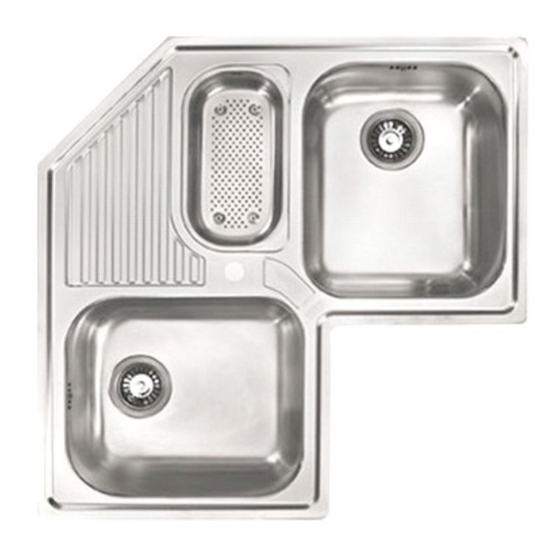

Franke AMX671E Directives D'installation

DROP-IN (ABOVE MOUNT): STAINLESS STEEL
NOTE: Inspect sink for damage; do not install a damaged unit. File a claim against the shipping agent.
1
1. Place template on the counter and trace.
2. Cut along the outline.
3. Slide or snap clips into position. Turn claws of clips towards sink. (To clear countertop while lowering sink into cutout).
NOTE: Some clips may already be in place.
4. Faucet and strainer basket may be assembled at this time, if desired.
5. Lower sink into countertop cutout. Most Franke sinks are shipped with factory applied polyseal. These need no extra sealant.
If there is no factory installed sealant, please use additional sealant.
6. Turn clips out and tighten against the underside of the countertop.
DROP-IN SLIM FIX: STAINLESS STEEL
NOTE: Inspect sink for damage; do not install a damaged unit. File a claim against the shipping agent.
1. Place template on counter and trace.
2. Cut along the outline (NOTE: it is important to cut exactly to the trace line – the sink ledge that overhangs on the countertop
2
is low profile [see Inset A]).
3. Strainer basket may be assembled at this time if desired.
4. Place silicone on inner edge of cut-out and a thin application along cut line atop the counter.
5. Simply place the sink into the cut-out, making certain drain hole is to the back. Clips will automatically adhere to the counter
(see Inset B & C).
6. Remove excess silicone.
Inset A
NOTE: none of these installations apply to Franke Fireclay Sinks.
3
Please visit our website for separate Fireclay sink installation instructions.
In the USA:
www.frankeksd.com
In Canada:
www.frankecanada.com
0714
Installation Instructions for Your Franke Stainless Steel Sink
Find your sink model listed on the back page for corresponding method of installation.
Inset B Inset C
FSSII0714
