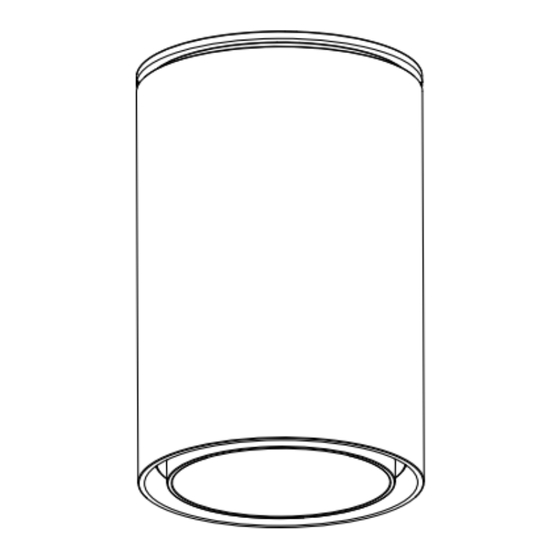

SASSO 60 ceiling | semi-recessed
Mounting instructions
Abmessungen | Dimensions | Dimensioni | Medidas | Dimensions
Benötigte Werkzeuge | Required tools | Strumenti necessari | Herramientas necesarias | Outils nécessaires
By using XAL defined standard converters
SASSO 60 semi-recessed
A
min. 1 32 m m
B
min. 2 -25 m m
C
min. 100 m m
SASSO 60 ceiling
XAL GmbH
T +43 316 3170 0
Auer-Welsbach-Gasse 36
F +43 316 3170 9000
A-8055 Graz
xal.com
SASSO 60 round ceiling
108
ø 7 2
SASSO 60 round
semi-recessed
75
ø 7 2
C
XAL After Sales Hotline
service@xal.com
SASSO 60 square ceiling
108
72
72
SASSO 60 square
semi-recessed
75
72
72
C
T +43 316 3170 9400
Mon – Fri (CET)
7.00 – 20.00
468201912030
A
B
1 / 5
