Ensure that the union nuts on the plug connections are fit-
ted up to the stop. Only in this way is the connection water-
proof (IP65).
4.5. Connec�ng to the power supply

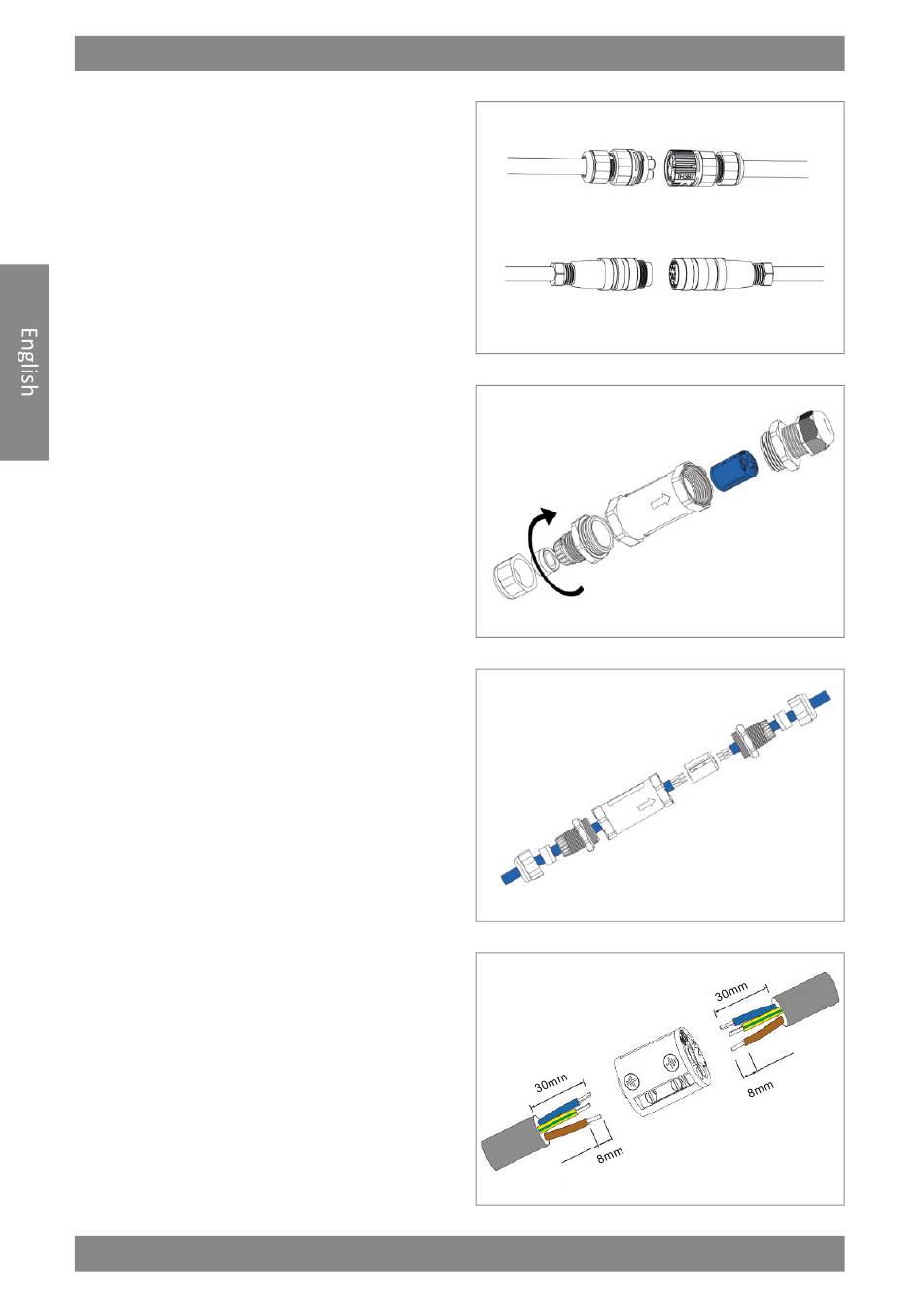

1. Unscrew the individual parts of the inline connector.
2. Remove the terminal block.
3. Feed the driver connection cable and your power sup-
ply line through the components of the inline con-
nector as shown.
4. Connect the two cables to the terminal block.
5. Ensure the mains voltage matches the input voltage of
the projector as specified in the technical specifica-
tions (220 – 240 V AC, 50 / 60 Hz) and your supply
cable is connected to a protective conductor via the
corresponding contact on the terminal block.
