16

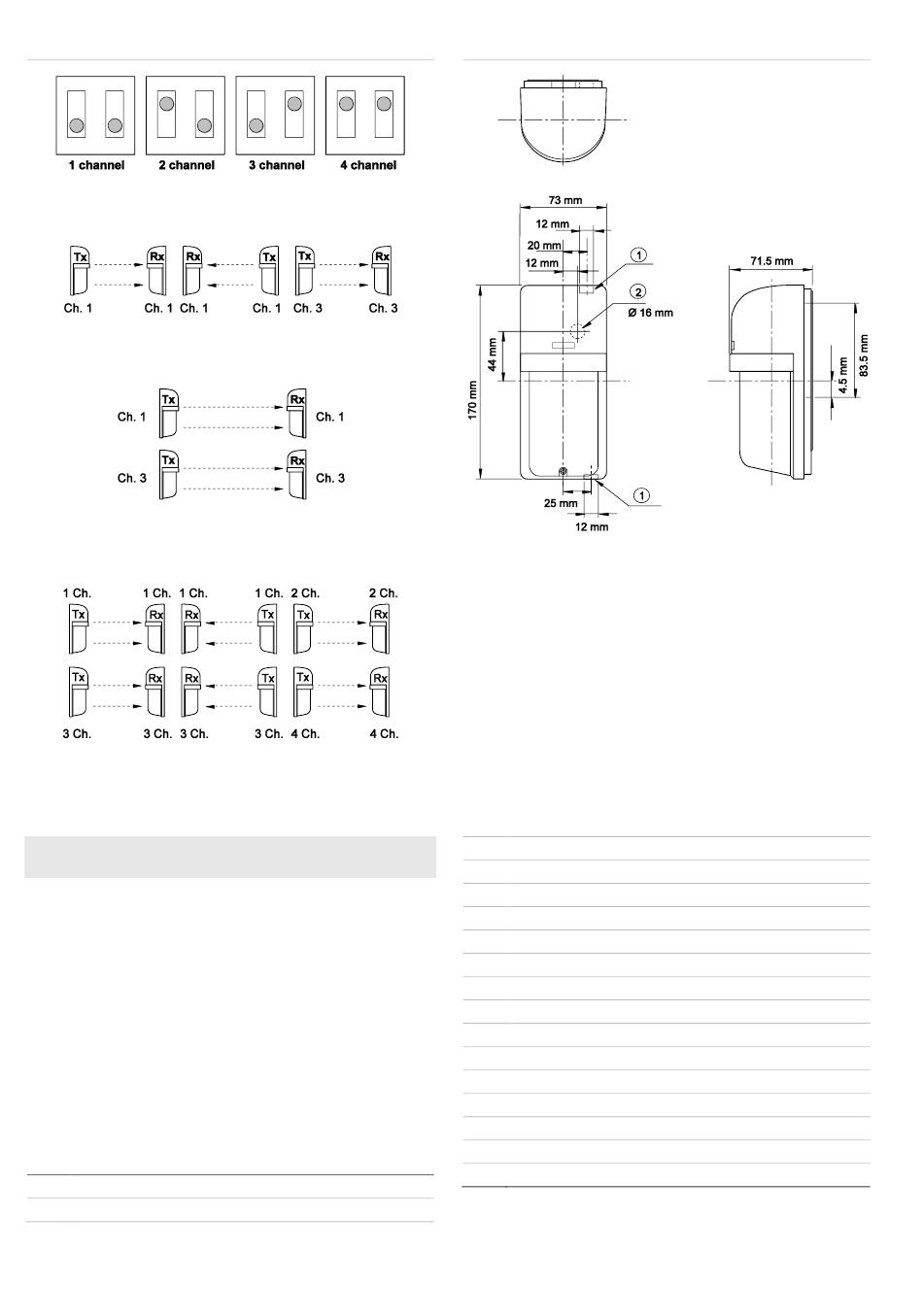

A: Line protection
B: 2-stacked protection
C: Line and 2-stacked protection
EN: Installation Sheet

Product description

The PB501/ PB511/ PB521 photoelectric beam sensors have
an infrared transmitter (Tx) and receiver (Rx). They are
designed to be "AND gated". An alarm is initiated only when
two stacked beams are simultaneously interrupted. If one
beam is interrupted (eg, by an insect or a leaf) it does not
initiate an alarm. Four beam frequency channels are available
to prevent cross talk when using multiple units.

Part description

Figure 1: The product is supplied with the following items.
Please check that they are all included.
1 Terminals
2 Beam channel
4 / 26
All manuals and user guides at all-guides.com
17
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Lens
View finder
Operation LED
Horizontal adjustment
Vertical adjustment screw
Cover
Mounting plate
Alarm LED
Attenuation LED
Response time adjustment
Monitor jack
Tapping screw (PB50-PA)
Pole-mounting plate (PB50-PA)
Pole bracket (PB50-PA)
Attenuation sheet
P/N 1077838 • REV D • ISS 19MAR19
