cameRa HousInG
sWaPPInG HOUsInG DOOrs
You can switch the Backdoor of your HERO3+ camera to suit your activity
and shooting conditions.

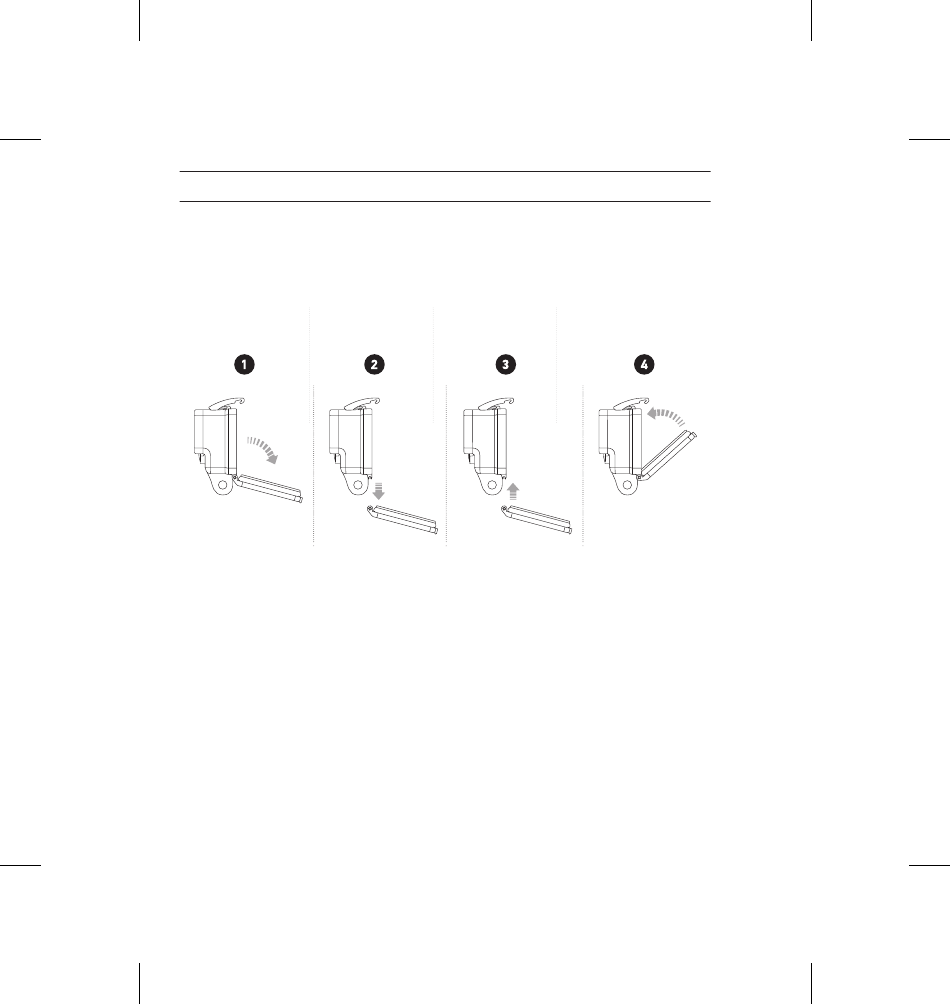

To change backdoor: To change backdoor: To change backdoor:
1. Open the Backdoor of the housing so that it is hanging downwards.
2. Pull downwards on the Backdoor until it snaps free from the hinge.
3. Line up replacement Backdoor into the hinge opening.
4. Push upwards on the Backdoor until it clicks into place.
