Model/Modelo/Modèle
41642, 41742,41842 & 41942
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
Parts and Hardware included:
1 – Set of Mounting Hardware
Six (6) #10 x 2-1/2" Wood Screws
1 – Wall Anchor (1)
Piezas y hardware incluidos:
1 – Juego de Herramientas de Instalación
Seis (6) #10 x 2-1/2" Tornillos de Madera
1 – Anclaje de pared (1)
Pièces et matériel inclus:
1 – Set de Matériel de Montage
Six (6) Vis à Bois #10 x 2-1/2"
1 – Ancrage mural (1)
www.deltafaucet.com
88235
You may need / Usted puede necesitar /
Articles dont vous pouvez avoir besoin:
1
41642
41742
41842
41942
88235
GRAB BAR
BARRE D'APPUI
BARRA DE SOPORTE
Americans with
MEETS
ADA
STANDARDS
Disabilities Act
11/17/2015
Rev. A
Publicité
Manuels Connexes pour Delta 41642
Sommaire des Matières pour Delta 41642

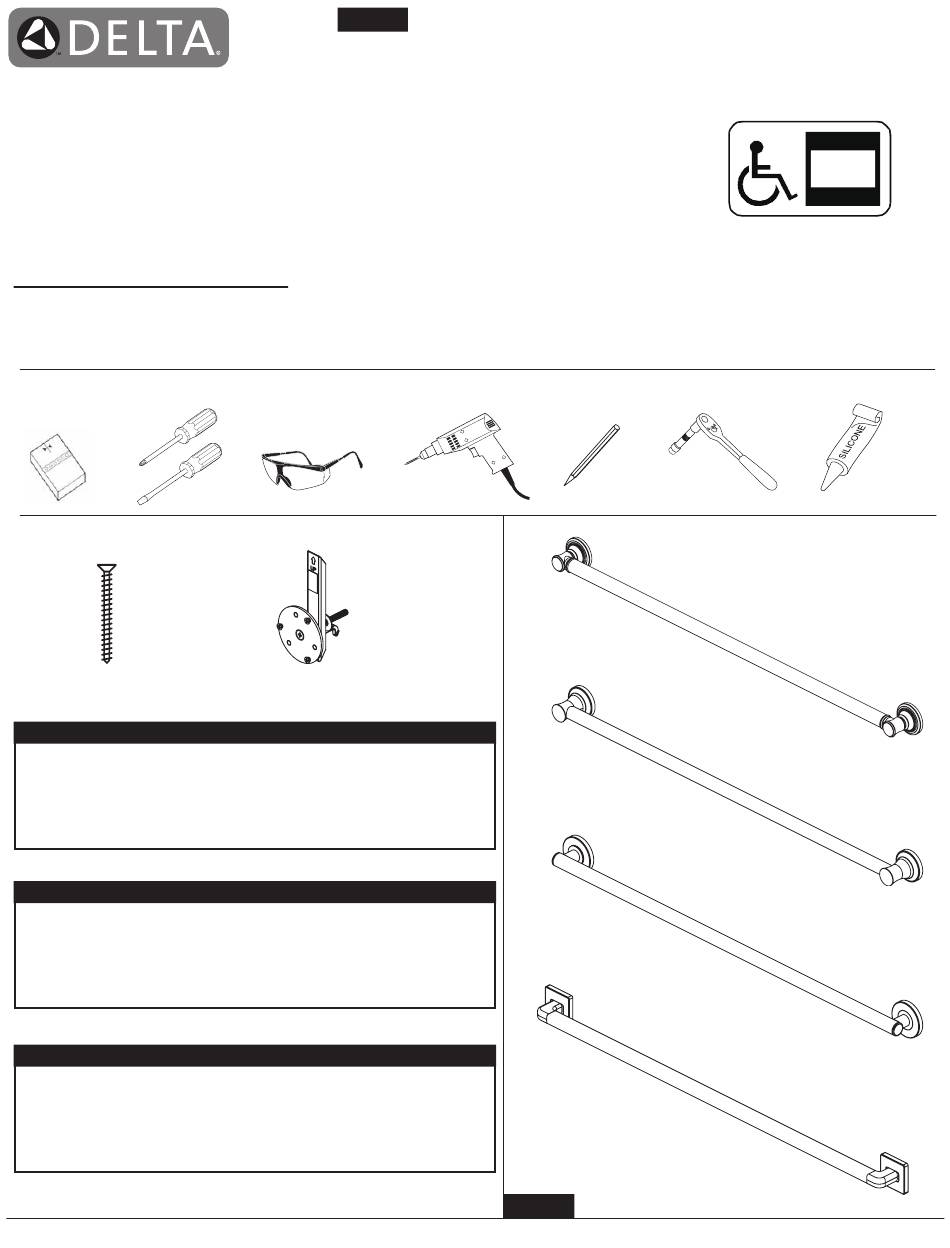

- Page 1 GRAB BAR 88235 BARRE D'APPUI BARRA DE SOPORTE Model/Modelo/Modèle 41642, 41742,41842 & 41942 Series/Series/Seria Americans with MEETS STANDARDS Disabilities Act Write purchased model number here. Escriba aquí el número del modelo comprado. Inscrivez le numéro de modèle ici. You may need / Usted puede necesitar /...
-
Page 2: Before Installing
BEFORE INSTALLING: 1. Remove the parts and products from package. If concealed mount slide bar / grab bar is used, move cover plates away from mounting holes. (Fig. A) 2. Determine the location of the product and where you want to install it. 3. - Page 3 Hold the flange of the supplied anchor and insert the bar into the wall. The bar should have the “UP” arrow pointing upward when installing into the wall. Once the bar is completely inside the wall, pull outward/back on the flange and ensure the bar tilts upward behind the wall and straightens upright.
- Page 4 FRONT VIEW FRONT VIEW ANGLE MOUNT VERTICAL MOUNT VUE DE FACE VUE DE FACE INSTALLATION INSTALLATION VERTICALE OBLIQUE VISTA FRONTAL VISTA FRONTAL MONTAJE VERTI- MONTAJE EN ÁNGULO 41742 41642 41942 41842 88235 Rev. A...
- Page 5 WARNING GRAB BAR MAY NOT PROVIDE DESIGNED AMOUNT OF SUPPORT UNLESS THESE INSTALLATION THE FOLLOWING STEPS REQUIRE DRILLING INTO THE WALL. When drilling into the INSTRUCTIONS ARE STRICTLY FOLLOWED. For proper installation, at least one end of Grab Bar wall, exercise care to avoid any electrical wiring or plumbing that may be located behind the MUST be positioned over a wall stud.
-
