Parts List; Tools Required - Summit Treestands SU82085 Mode D'emploi

3

PARTS LIST

BOX CONTENTS
PN DESCRIPTION
82085.100 PLATFORM
82064.200 RIGHT UPRIGHT ARM
82064.250 LEFT UPRIGHT ARM
82064.300 SEAT BASE
82064.400 YOKE
82064.500 SEAT BACK
82064.010 ARMREST UPRIGHT
82064.020 PLATFORM SUPPORT BAR
82064.710 GUNREST BAR
82064.720 LEFT GUNREST ARM
82064.730 RIGHT GUNREST ARM
82064.910 TOP LADDER SECTION
82064.920 MIDDLE LADDER SECTION
82064.930 BOTTOM LADDER SECTION
82064.940 STABILIZER MALE SECTION
82064.950 STABILIZER FEMALE SECTION
82064.850 FOAM SEAT BASE
82064.851 FOAM SEAT BACK
82064.740 GUNREST PAD
82064.600 ACCESSORY PACKET
ACCESSORY PACKET CONTENTS
PN DESCRIPTION
82064.890 HARDWARE PACKET
82064.760 RATCHET WITH LOOP END
82064.765 SHORT STRAP FOR RATCHET
82064.770 CRISS-CROSS LONG STRAP
FOR RATCHET
SU18191-16 SAFETY DVD
SU18195-A FULL BODY FALL ARREST HARNESS
SYSTEM (FBFAHS)
All images are representations. All fabric, paint and accessories are subject to change at any time. Net weights of the products
4

TOOLS REQUIRED

Tools
• 7/16" Wrenches and / or Socket / Ratchet
- Assembly can be made easier by the use of a powered ratchet or drill with socket adapter (take care not to overtighten
when using power tools to assemble)
- It is recommended that all bolts be sorted by thread count / length prior to assembly.
- Assemble entire product before fully tightening any bolts / lock nuts.
DO NOT OVER-TIGHTEN the bolts and nuts to the point that the tubing becomes deformed or bent.
PG 4

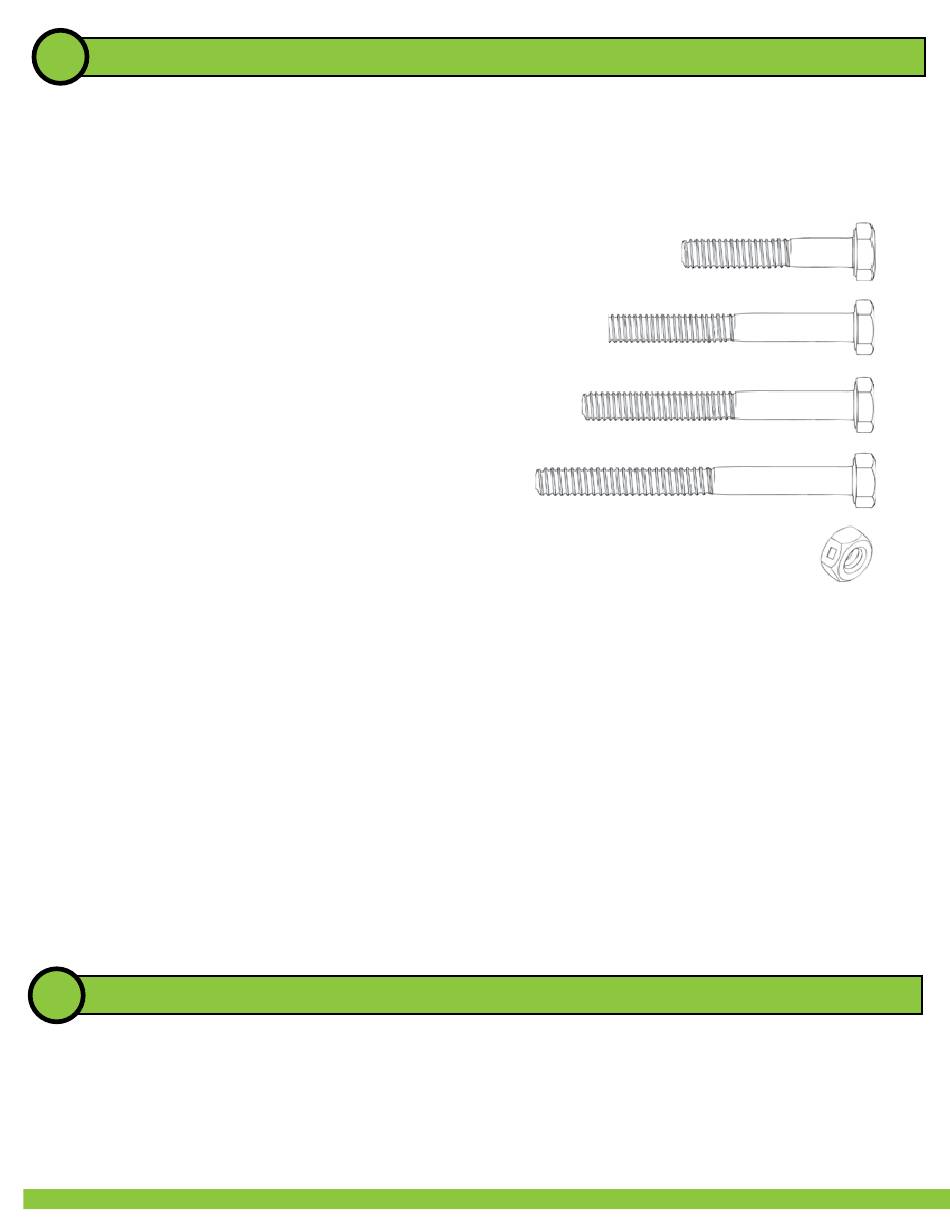

82064.890 - HARDWARE PACKET
QTY
1
All bolts used are 1/4" threads, grade 5.
1
PN
1
SU10601
1
1
1
1
SU10670
2
1
1
1
1
1
1
1
1
1
1
1
SU10612
1
QTY
1
4
2
2
1
1
are approximate.
DESCRIPTION
1 3/4" BOLT, 1/4"-20
2 1/2" BOLT, 1/4"-20
2 3/4" BOLT, 1/4"-20
3 1/2" BOLT, 1/4"-20
LOCK NUT, 1/4"-20
1/4" WIRE LOCK PIN
1/4" BUSHINGS
RUBBER BUMPERS FOR GUNREST
www.summitstands.com
QTY
7
10
2
2
21
3
4
2
