LADDER COLUMN

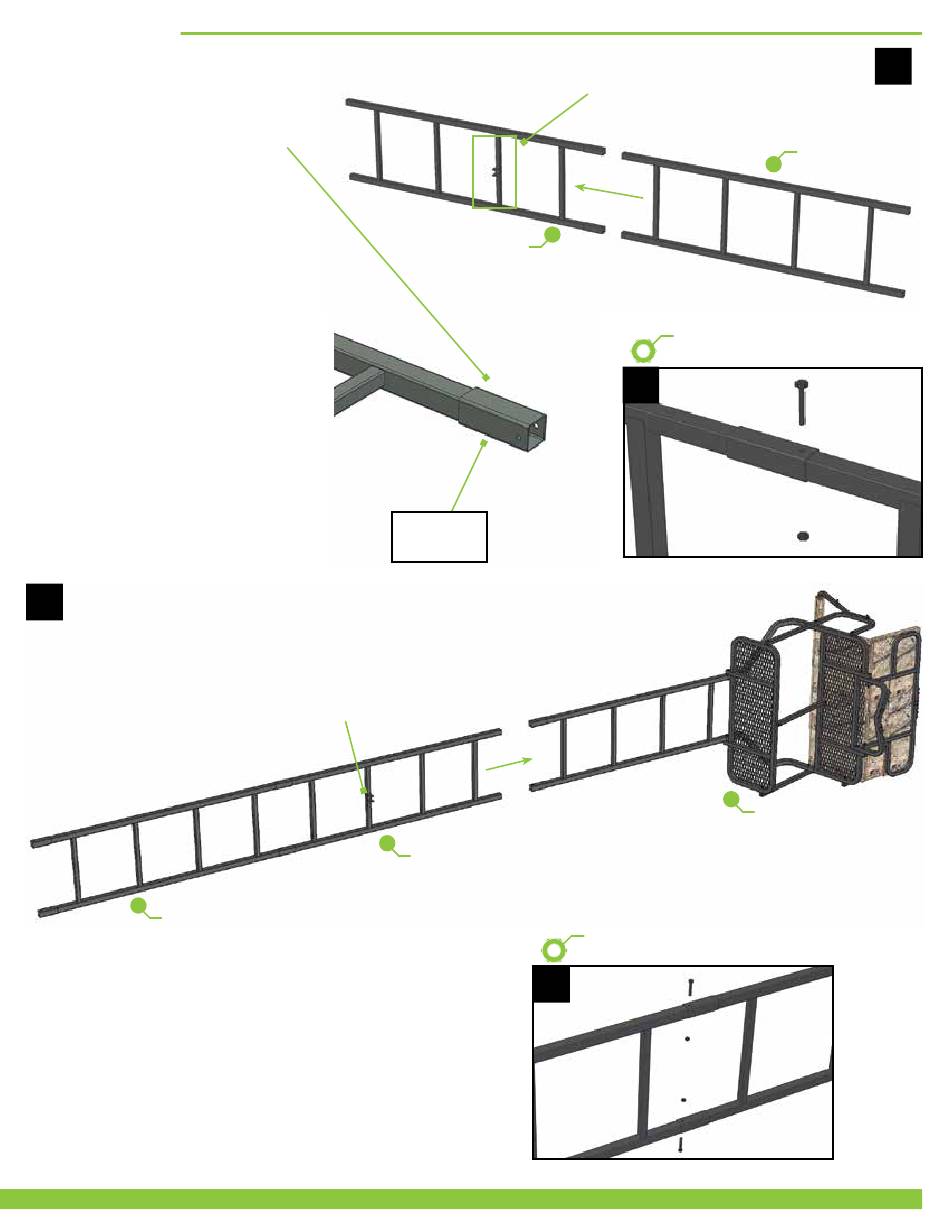

1. Position the Bottom Ladder Section
and Middle Ladder Section as shown in
figure 20. The welded U bracket faces
the tree when fully assembled.
The Bottom Ladder Section has no
welded sleeves.
2. Slide the Ladder Sections together,
line up the bolt holes and use one
bolt and lock nut to secure each side
(see figure 21).
3. Slide the completed Bottom
and Middle ladder sections into the
completed Platform / Seat assembly to
finish assembly as shown in figure 22.
4. Secure using two 1 3/4" bolts and
lock nuts. (See figure 23)
22
BOTTOM LADDER SECTION
(PN 82064.930)
1 3/4"
MIDDLE
LADDER
SECTION
(PN 82064.920)
WELDED
SLEEVES
WELDED
U BRACKET
FACES TREE
MIDDLE LADDER SECTION
(PN 82064.920)
WELDED
U BRACKET
1 3/4" BOLTS, LOCK NUTS -
WRENCH TIGHTEN
21
1 3/4" BOLTS, LOCK NUTS -
WRENCH TIGHTEN
23
20
BOTTOM
LADDER
SECTION
(PN 82064.930)
COMPLETED
PLATFORM / SEAT
ASSEMBLY
