Grohe GRANDERA 24 034 Manuel D'installation

Masquer les pouces

page de 12

/ 12
Signets

Liens rapides

Télécharger ce manuel

GRANDERA

DESIGN + ENGINEERING

GROHE GERMANY

99.0057.031/ÄM 228989/06.13

www.grohe.com

24 034

.....1

.....6

.....2

.....7

.....3

DK .....8

.....4

.....9

.....5

...10

FIN

.....11

.....16

.....12

.....17

UAE

.....13

.....18

.....14

.....19

SLO

.....15

.....20

.....21

.....26

.....22

EST

.....27

.....23

RUS

.....28

.....24

.....25

Sommaire des Matières pour Grohe GRANDERA 24 034

Page 1 GRANDERA DESIGN + ENGINEERING GROHE GERMANY 99.0057.031/ÄM 228989/06.13 www.grohe.com 24 034 ..1 ..6 ..11 ..16 ..21 ..26 ..2 ..7 ..12 ..17 ..22 ..27 ..3 DK ..8 ..13 ..18 ..23 ..28 ..4 ..9 ..14 ..19 ..24 ..5 ...10 ..15 ..20 ..25...
Page 2 Please pass these instructions on to the end user of the fitting! S.v.p remettre cette instruction à l'utilisateur de la robinetterie! Entregue estas instrucciones al usario final de la grifería!

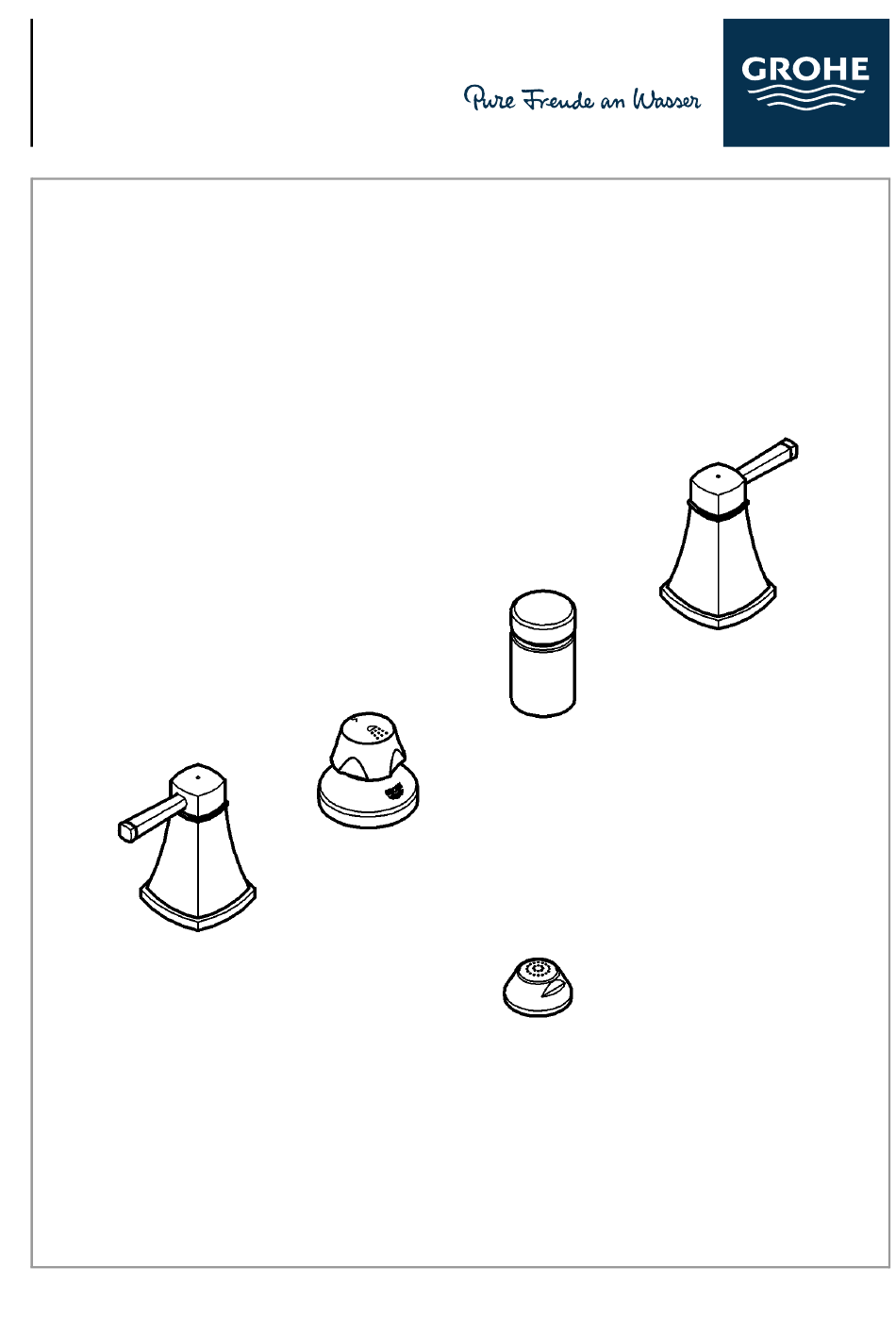

Page 4 English Installation , see dimensional drawing on page 1. Application Operation is possible in conjunction with: Flush piping system prior and after installation of faucet - Pressurized storage heaters thoroughly! Operation is not possible with: Side valves, see fig. [1]. - Low-pressure storage heaters (displacement water heaters) •...
Page 5 Français Domaine d'application Montage Voir diagramme dimensionnel page 1. Le service est possible en combinaison avec: - Des chauffe-eau à accumulateur sous pression Bien rincer les canalisations avant et après l’installation! Le service n'est pas possible en combinaison avec: Robinets d'arrêt, fig. [1]. - Des systèmes d'eau chaude à...
Page 6 30mm 36mm 22mm 19mm 11mm 19mm 19mm 19mm 10mm...
Page 7 English Vacuum breaker, see figs. [2], [3] and [4]. Verticle spray, see fig. [7]. 1. Insert the vacuum breaker body with seal (F) and nut (F2) 1. Insert body with seals (S) from below. through the basin hole from below, see fig. [2]. 2.
Page 8 45 883 17mm COLD 45 882 21mm 19mm...
Page 9 English III. Check valve, see fig. [12]. Maintenance Loosen nut (W) using an 21mm open-ended spanner and replace Inspect and clean all parts, replace as necessary and grease with check valve (X). special grease. IV. Vertical spray, see fig. [13]. Shut off cold and hot water supply.
Page 12 +49 571 3989 333 +372 6616354 +372 6616354 +420 277 004 190 impressum@grohe.de grohe@grohe.ee grohe@grohe.ee grohe-cz@grohe.com +43 1 68060 +33 1 49972900 +1 800 80 6570 +66 2610 3685 info-at@grohe.com marketing-fr@grohe.com info-singapore@grohe.com info-singapore@grohe.com Argent Sydney +358 10 8201100 +47 22 072070...
