Installing your appliance
3

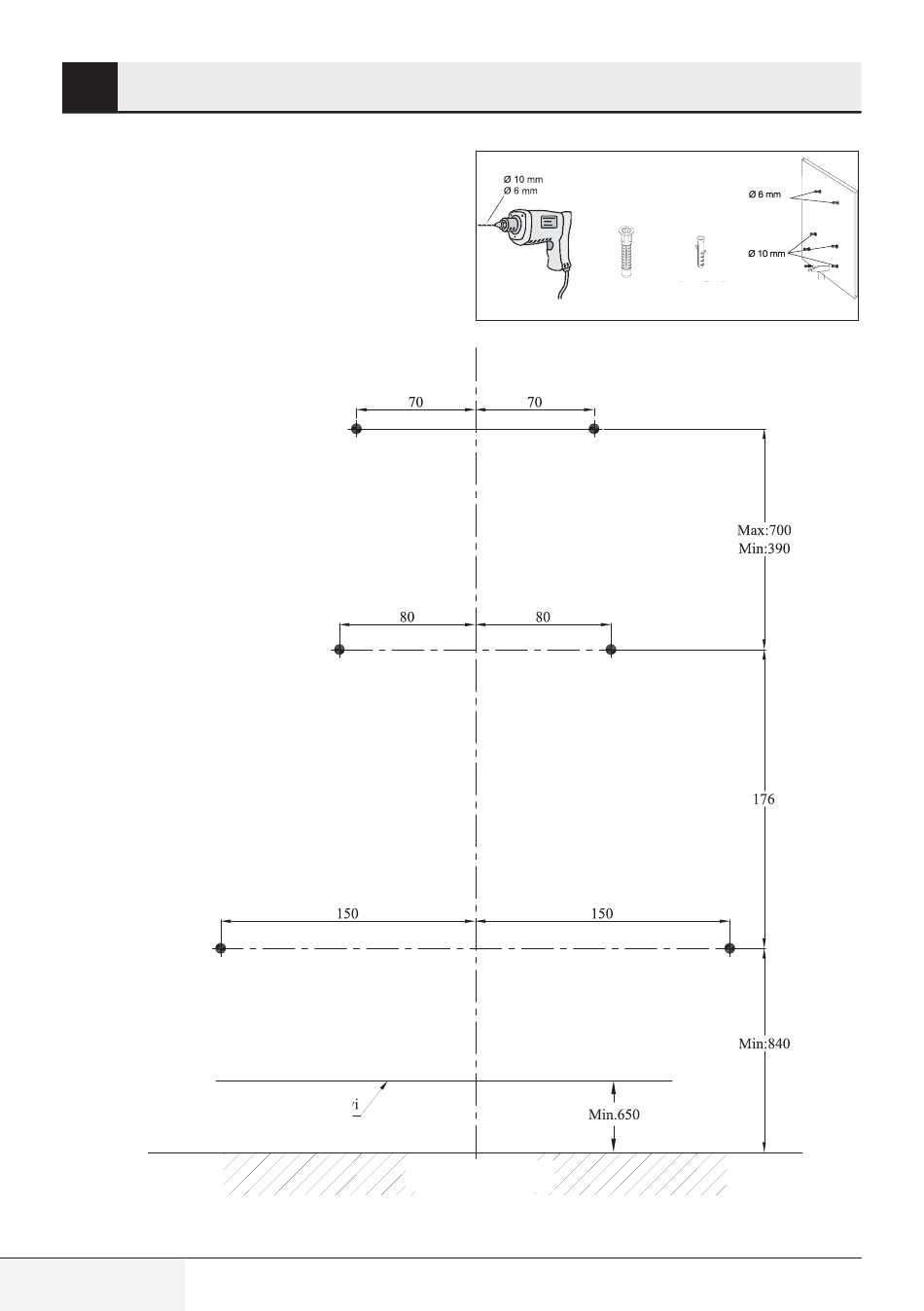

3.2.1 Boring the hanger holes
Affix the installation template onto the installa-
tion place of the hood. Drill the points market with
(X,Y) (Figure 5) using a Ø 10 mm bit and points
market with (Z) (Figure 5) using a Ø 6 mm bit.
X
Bottom surface of the
appliance
(Figure 5)
12 / EN
Z
Y
COOKING ZONE
10 mm plastic
6 mm plastic
wall plug
wall plug
Hood / User Manual
Z
Z
Y
Y
X
X
