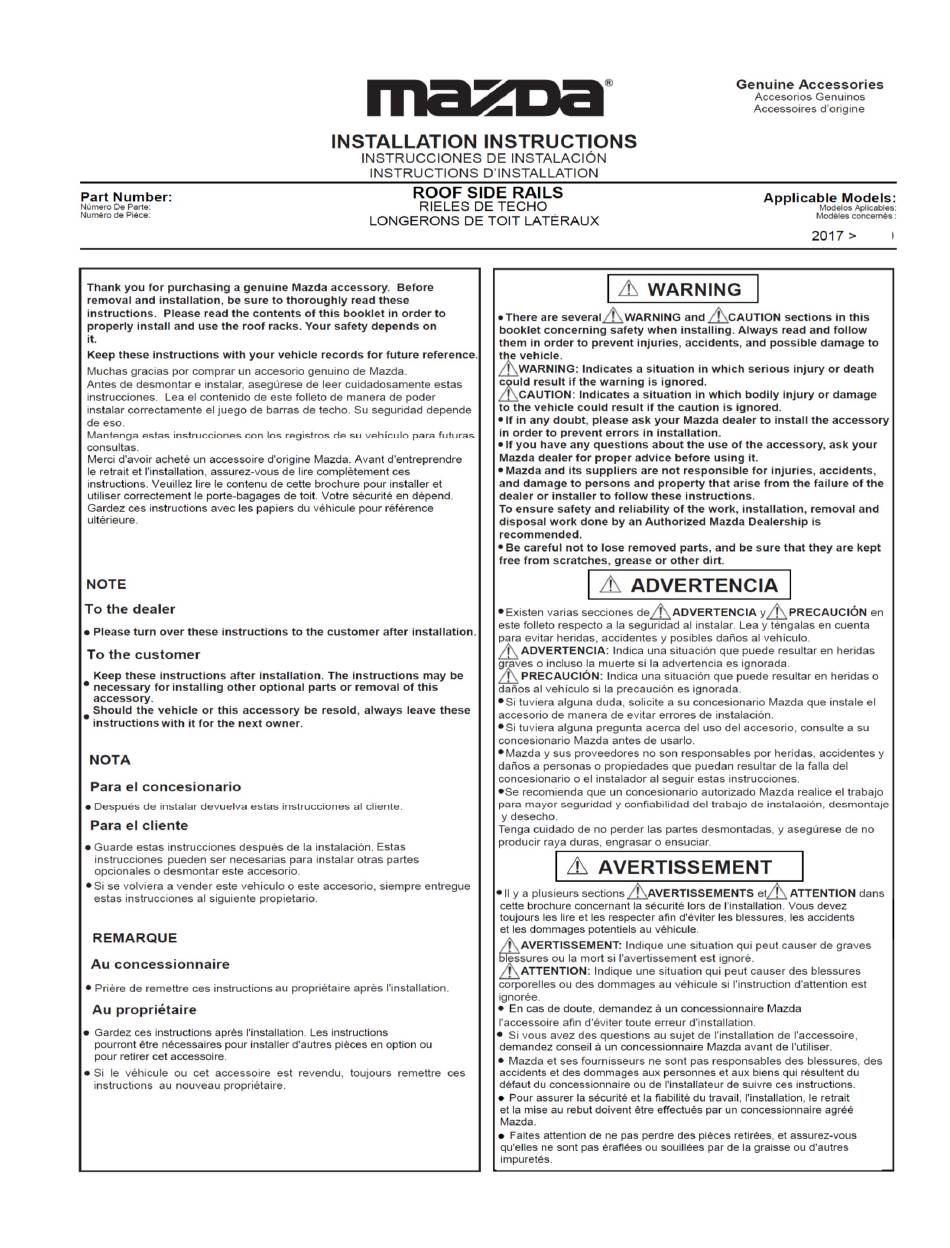

- Page 1 0000-8L-R09A CX-5 08/17/2017 Page 1 Rev 4.1...
-
Page 2: Parts Included
Clip Mazda dealer Front of vehicle Si faltan piezas o alguna esta defectuosa, pongase en contacto con su concesionario de Mazda. ROOF RAIL INSTALLATION Si des pièces sont manquantes ou défectueuses, communiquer avec le concessionnaire Mazda. Instalacion de riel en el techo. - Page 3 Place roof rail onto the previously installed spacer blocks and packing, A. Get all bolts started (make sure threads engage for a few turns) and aligning the holes in the roof rail and the spacer blocks. Note loosely installed so that you can adjust the alignment. orientation of the roof rail shown.
-
Page 4: Before Operating
BEFORE OPERATING 1.Insert cap and drop into hole. Make sure the top surface is parallel to the rail surface. Inserte el tapon y coloquelo en el orificio. Asegúrese de que la superficie superior esté paralela a la superficie del riel. The Roof Rails are not designed to bear a load by themselves. - Page 5 DRIVING Avoid sudden braking and steering when the cross bars are installed. The load may fall and accident may occur. Operation characteristics may vary significantly depending on road (curve or rough road) and weather conditions (strong crosswind / headwind, rain, snow or fog) when the cross bars are installed.
- Page 6 ROOF SIDE RAILS RIELES DE TECHO CX-5 LONGERONS DE TOIT 0000-8L-R09A Inspection Items Before Installation Articulos de inspección después de la instalación Points à vérifier avant l'installa on Inspect the installed parts and removed and re-installed parts fallowing the items below Revise las partes installadas y las partes extraídas y re-instaladas siguiendo la lista de abajo.
