I. FINISH: The standard finish on this wireway is gray polyester powder over a cleaned and phosphatized surface.
This surface may be further finished with lacquer or enamel.
II. ASSEMBLY:
A. To assemble most wireway sections and fittings, place
a gasket between the flanges and install the screws and
nuts as shown in detail 1. The wireway run is then ready
for the wires to be installed.
B. After installing the wires, each joint between the
sections or fittings must be sealed by on the two
following methods.

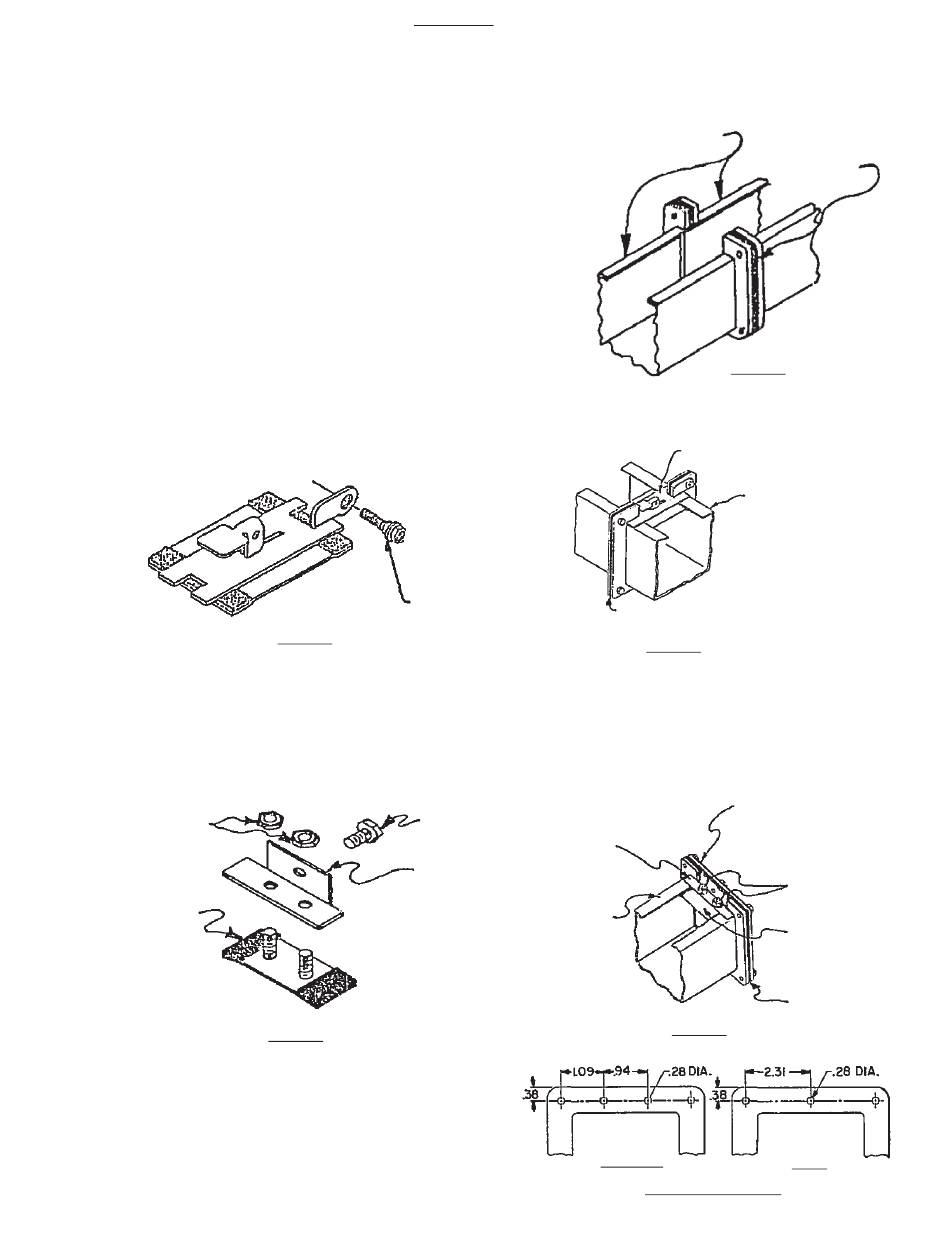

Method I: For joints between most lay−in sections and/or fittings. The LSGQR fitting (detail 2) is positioned as
shown in detail 3, leaving out top flange screw on hinge side. Install (detail 2) with a shoulder bolt through the
flange. Gaskets should be visible from above on both sides. Make sure to rotate cam to lock position.
Method II: For box entries or joints between a lay−in section or fitting and a closure plate, non−lay−in section or
non−lay−in fitting
The 90° angle sealing plate (detail 4) is assembled as shown in detail 5. Position the lower plate under the body
flanges of the lay−in section or fitting so that an equal portion of each gasket is visible from above. Place the upper
plate over the lower plate and slide them over so the upper plate is snug against the flange gasket of the non−lay−in
section or fitting or the closure plate. Install the nuts and tighten until the lower plate is pulled up flat against the
upper plate. Then install the screw through the flange and tighten.
Nuts
Lower Plate
NOTE: When joining a lay−in section to a non−lay−in
section or fitting, the adjoining non−lay−in section or
fitting must first be drilled, as shown in detail 6. This is
only necessary for the 2.5 x 2.5 and 4 x 4 sizes.
87568970
ENGLISH
Installation Instructions
Lay−In Wireway
Detail 2
Detail 4
© 2018 Hoffman Enclosures Inc.
Shoulder Bolt
Screw
Upper
Plate
Upper
Plate
Lay_In
Wireway
Section
PH 763 422 2211 • nVent.com/HOFFMAN
Wireway Sections
Detail 1
LSGQR Fitting
Wireway Section
Gasket
Detail 3
Closure Plate or
Non−Lay_In
Wireway Section or
Fitting
Detail 5
2.5 x 2.5
Detail 6 Units: Inch
Gasket
Nuts
Lower
Plate
Gasket
4 x 4
