Wiring Diagram - GE RAK204 Instructions D'installation

STEP 5
To Receptacle
L2
To Receptacle
L1
• Use wire nuts (provided) to connect the Sub base switch to the electrical sub base wiring.
See diagram above.
STEP 6
• Reattach the middle and right side face plates using the screws saved from step 1.
STEP 7
• Verify wiring and restore power to unit.
Installation Instructions
RED OR RED OR
WHITE WHITE
BLK

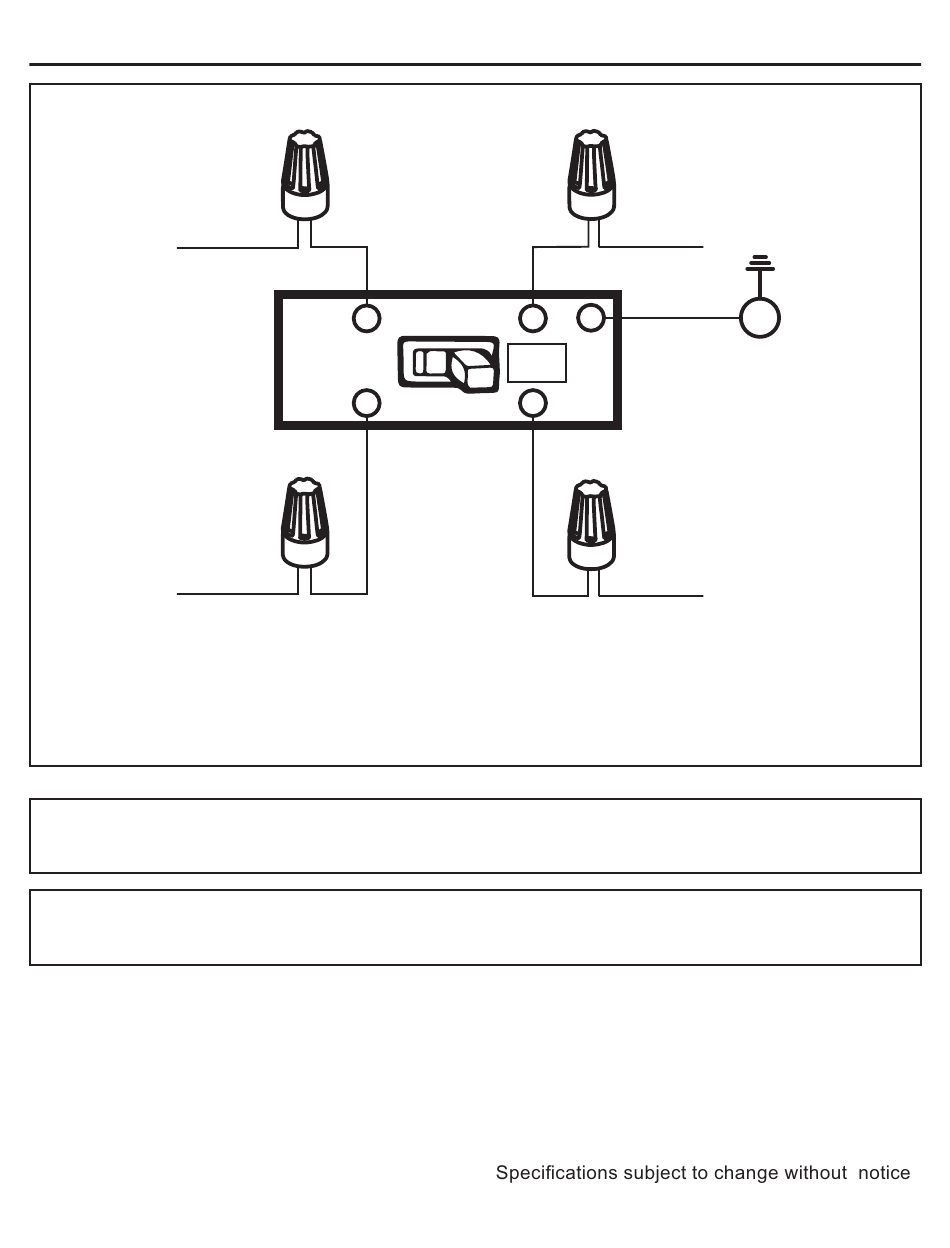

WIRING DIAGRAM

To Power Source
RED OR
WHITE
GRN/YEL
OFF
BLK To Power Source
