GE RAK204 Instructions D'installation

Before you begin - Read these instructions completely
and carefully. IMPORTANT – OBSERVE ALL
GOVERNING CODES AND ORDINANCES. Note to
Installer – Be sure to leave these instructions with the
Consumer. Note to Consumer – Keep these instructions
with your Owner's Manual for future reference.
Tools Needed
• 5/16" nut driver
• Pliers
• Slotted screwdriver

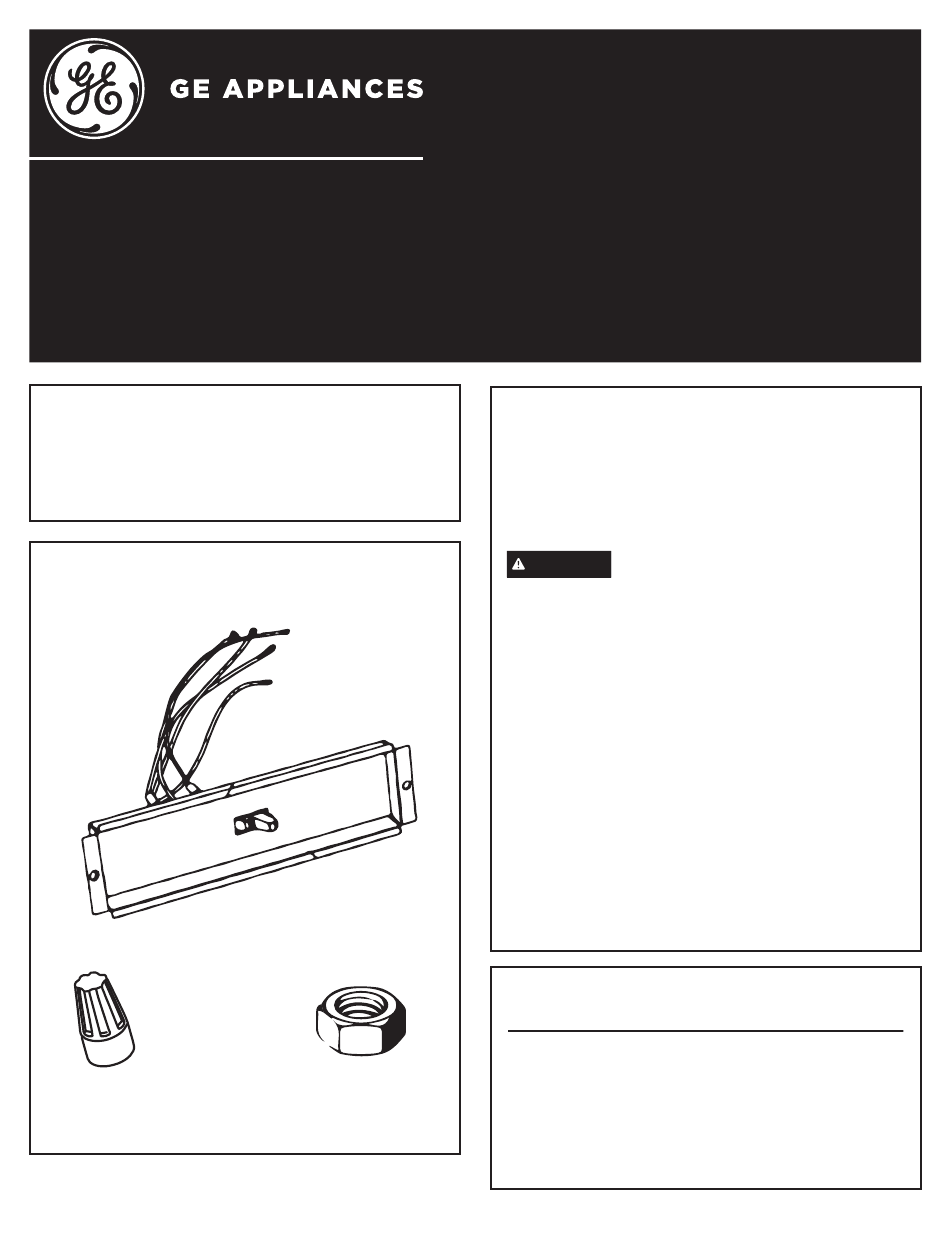

Parts included in bag with Sub-
Base Switch Kit
Wire Nuts (4)
Installation Instructions
for your new
RAK204
Sub-Base Switch Kit
Sub-Base
Switch
5/16" Nut
Important Notes
• This unit must be properly grounded.
• Read this instruction before installing the sub-base to the
molded or metal case.
The sub-base should be assembled to the case before
securing the case in the wall.
CAUTION
Electrical power must be disconnected
before installing the sub-base.
Electrical Requirements :
1. Electrical wiring may enter the sub-base through any of
the knockout holes provided in the sub-base bottom or
rear. Use appropriate protection around the opening to
ensure the wiring will not become cut or chafed.
2. Refer to the unit nameplate for branch circuit
requirements.
3. All wiring should be done in accordance with the local
electrical codes and regulations.
4. Not approved for aluminum wire application.
5. If electrical wiring is placed in or against the sub-base
enclosure, the sub-base must be grounded. Use the
installed ground screw to connect the ground wire eyelet
from the kit to the rear of the sub-base.
See step 4.
RAK204SW kit compatible with the following Sub base models
Kit Number Description
RAK204E15C 265 V
RAK204E20C 265 V
RAK204E30C 265 V
RAK204D15C 230/208 V
RAK204D20C 230/208 V
RAK204D30C 230/208 V
31-5000558 Rev. 0 10-20 GEA
15 A
20 A
30 A
15 A
20 A
30 A
