ENGLISH

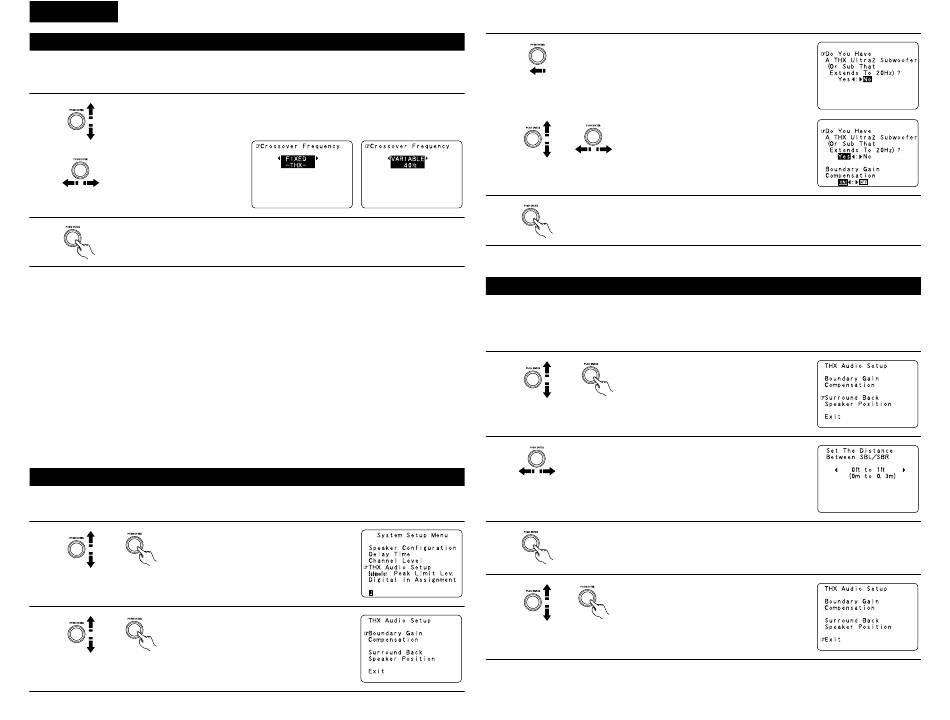

Setting the Crossover Frequency
• Set the crossover frequency according to the speaker system being used.
• Select "Speaker Configuration" on the System Setup Menu screen, then press jog stick "ENTER" twice or
three times.
1
Select the "Crossover Frequency" mode.
Select the Frequency.
2
Enter the setting.
The System Setup Menu reappears.
Crossover frequency
• Set the frequency (Hz) below which the bass sound of each main speakers is to output from the subwoofer
or from speakers which are set to "Large" (when not using a subwoofer) (crossover frequency).
• For speakers set to "Small", sound with a frequency below the crossover frequency is cut, and instead the
cut bass sound is output from the subwoofer or speakers which are set to "Large".
• This crossover frequency mode is valid when "Subwoofer" is set to "Yes" at "Speaker Configuration Setting"
or when speakers are set to "Small".
FIXED –THX–:
Set to the THX rated 80 Hz crossover frequency.
VARIABLE 40, 60, 80, 100, 120 Hz:
Set as desired according to your speakers' bass playback ability.
NOTES:
• The crossover frequency is set to 80 Hz in the HOME THX CINEMA mode.
• We recommend using with the crossover frequency set to "FIXED –THX–", but depending on the speaker,
setting it to a different frequency may improve frequency response near the crossover frequency.
Settings for using a THX Ultra2 compatible subwoofer
Make these settings when "Yes" is selected for the subwoofer in the Speaker Configuration settings.
There is not displayed when "No" selected.
1
Select "THX Audio Setup" on the System
Setup Menu screen, then press jog stick
"ENTER" to switch to the THX Audio Setup
screen.
2
Select "Boundary Gain Compensation", then
press jog stick "ENTER".
2
3
When using a THX Ultra2 compatible subwoofer or
subwoofer that frequency response extends to 20 Hz, select
"Yes". Otherwise select "No".
• When "Yes" is selected
"Boundary Gain Compensation" can be
selected and the compensation set to "OFF".
• If the bass sound seems too strong
Set "Boundary Gain Compensation" to "ON".
This activates a circuit that cuts the low
frequencies of 55 Hz and under. Select "ON"
or "OFF" according to how strong you like
the bass sound to be.
4
Press jog stick "ENTER" to return to the THX Audio Setup
screen.
Surround Back Speaker Position settings
• When two surround back speakers have been set in the Speaker Configuration settings, set the distance of
the speakers. There is not displayed when "1spkr" selected.
• This setting is necessary to achieve the optimum effect in the THX Surround EX, THX Ultra2 Cinema and THX
Music modes. It is recommended that SBL/SBR speakers are placed together as close as possible.
1
Select "Surround Back Speaker Position" on
the THX Audio Setup screen, then press jog
stick "ENTER".
2
Select the settings according to the distances of the two
surround back speakers.
3
Press jog stick "ENTER" to return to the THX Audio Setup
screen.
4
Select "Exit" then press jog stick "ENTER" to
return to the System Setup Menu screen.
